Benefits of the Keysight 6½ Digit DMM 34461A

  • Standard digital multimeter with 6½ digit Truevolt technology.
  • High speed 1000 rdgs/s and accuracy 35 ppm.
  • Compatible replacement for the classic 34401A (HP34401A).

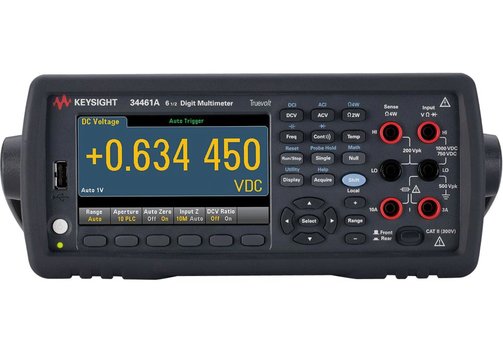

Standard Digital Multimeter with 6½ Digit Truevolt Technology.

Keysight's Truevolt-DMMs offer a full range of measurement capabilities and price points with higher levels of accuracy, speed, and resolution.
The multimeter 34461A is the all-rounder that replaces the classic 34401A. It can measure low current, 100 µA. Maintain calibrated measurements: Auto calibration allows you to compensate for temperature drift so you can maintain measurement accuracy throughout your workday. Get more insight quickly: Truevolt-DMM's graphical capabilities such as trend and histogram charts offer more insights quickly. Both models also provide a data logging mode for easier trend analysis and a digitizing mode for capturing transients.

  • Measure with Truevolt confidence:
  • Resolution up to 6½ digits.
  • DC volt accuracy up to 35 ppm.
  • Reading speed 1000 rdgs/s.
  • ▸BenchVue software enabled.
  • BenchVue makes it simple to connect, control instruments, and automate test sequences.
  • USB and LXI interface standard, GPIB optional.

All Models of the Series

  • ▸34460A: Basic model, 6½ digits.
  • ▸34461A: Adds accuracy, speed/throughput, external triggering.
  • ▸34465A: Adds accuracy, functions, ranges, math, memory. Advanced options: Memory, digitizingg.
  • ▸34470A: Adds even more resolution and accuracy; 7½ digit.

▸All models direct comparison.

Model Overview

ModelKeysight 34461A - adds accuracy, speed/throughput, external triggering;
replaces 34401A
Digits of resolution
1 year DCV accuracy35 ppm
Max. reading rate1,000 rdgs/s
Memory10,000 rdgs
MeasurementsDCV, ACV100 mV bis 1000 V
DCI100 µA to 10 A
ACI100 µA to 10 A
2- and 4-wire resistance100 Ω to 100 MΩ
Continuity, diodeYes, 5 V
Frequency, period3 Hz to 30 kHz
TemperatureRTD/PT100, thermistor
Capacitance1.0 nF to 100.0 µF
DisplayColor, graphical

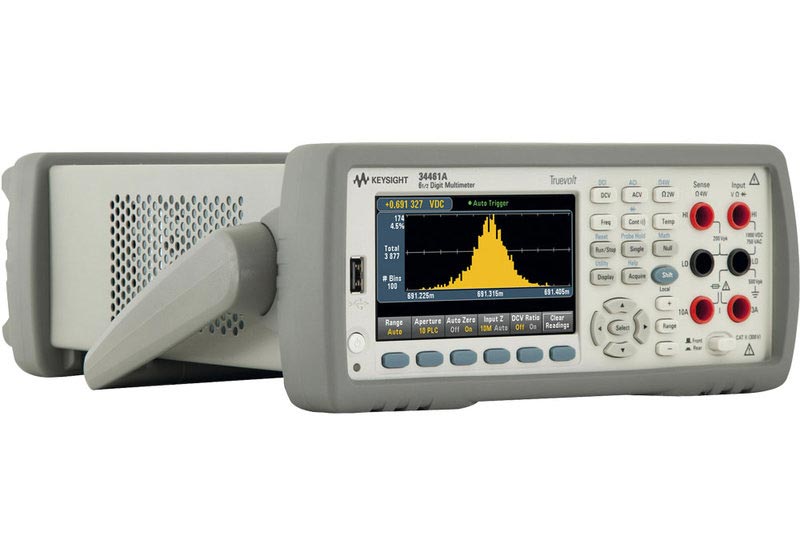

Statistical graphicsHistogram, bar chart, trend chart

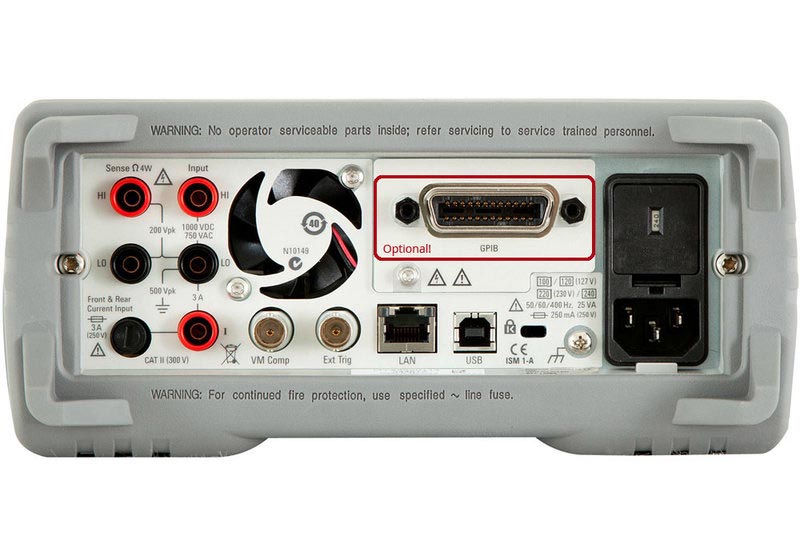

Rear input terminalsYes
IO interfaceUSB, LAN/LXI Core, optional GPIB

Included: Keysight 34461A, power cord, calibration certificate. 34138A test lead set with probes, fine tip probes, SMT grabbers and mini grabber attachments, documentation CD, IO Libraries CD, USB cable.

Software: Keysight IO Libraries Suite. ▸Supported by Keysight BenchVue. BenchVue makes it simple to connect, control instruments, and automate test sequences.

Note: The recommended calibration interval for these devices is 12 months. Call or send an E-Mail for more information on calibration!

Upgrades for the Keysight 34461A

Upgrade productsProduct optionApplicable modelsDescription
3446GPBUGPBAllAdd GPIB interface, user-installable
3446SECUSECAllEnable NISPOM and file security
3446LANULAN34460AEnable LAN interface and external triggering
3446ACCUACC34460AAdd accessory kit, includes test leads, USB cable
3446DIGUDIG34465/70AEnable high-speed digitizing and advanced triggering (included as standard, starting December 2018)
3446MEMUMEM34465/70AEnable 2 million readings memory
-Z54AllCertificate of calibration: ANSI/NCSL Z540.3-2006

Options and Accessories for the Keysight 34461A

ModelApplicable modelsDescription
LAN34460ARear panel LAN/LXI web interface, external triggering for 34460A - factory enabled
SEC34460A, 34461ANISPOM and file security for Truevoltseries DMMs - factory enabled
Z5434460A, 34461ACertificate of calibration – ANSI/NCSL Z540.3-2006, printed
GPB34460A, 34461AGPIB interface module for Truevoltseries DMMs - factory installed
ACC34460AAccessory kit for 34460A - documentation CDs, test leads, USB cable; shipped with unit from factory
11059AAllKelvin probe set
11060AAllSurface-mount device probe
11062AAllKelvin clip set
34131AAllTransit case
34133AAllPrecision electronic test leads
34134AAllDC-coupled current probe
34136AAllHigh-voltage probe
34138AAllTest lead set
34151AAllThree signal wedge probe kit
34152AAllPT100/RTD 4-wire class A sensor kit
34153AAllPT100/RTD 4-wire class sensor elements
34162AAllAccessory pouch
34171BAllInput terminal block
34172BAllCalibration short
34330AAll30 A current shunt
E2308AAllThermistor temperature probe
Y1133AAllLow-thermal external digital multimeter scanning kit

Can't find option or accessory product in the shop? Just call or send an E-Mail: sales@meilhaus.de!

3Y Warranty & Keysight CARE

Agilent’s Electronic Measurement Group is now Keysight Technologies.

Frequently Asked Questions:

Question: I have an Agilent 34461A multimeter in use - is this instrument compatible with the Keysight 34461?

Answer: Yes, the devices are one and the same model (originally housing in gray, models of more recent purchase date in anthracite). Keysight Technologies is an US American manufacturer of test and measurement instruments and devices. Keysight is the electronic instrumentation division spun off from Agilent Technologies in 2014 and has its origins in Hewlett-Packard, founded in 1939. The Trueform digital multimeter series, which includes the 34460A (6½ digit), 34461A (6½ digit), 34465A (6½ digit) and 34470A (7½ digit), was developed by Agilent and is now manufactured by Keysight. The series is a replacement for the classic HP 34401A multimeters.

Question: How much does an average multimeter cost?

Answer: Multimeters are available in various designs such as desktop/benchtop, handheld or modular (for example for USB/PC). In addition, there are different levels of supported technical measurement features and functions, interfaces, etc. And finally, the accuracy, speed and quality also have a significant influence on the price. Accordingly, there are multimeters in almost all price ranges. Some simple, inexpensive handheld devices are available from around €10, while devices for professional and industrial use or high-precision devices for calibration laboratories can cost over €10,000.

Question: What does a multimeter measure and display?

Answer: Multimeters are multi-functional measuring devices, which means that they can measure a certain number of electrical quantities in defined measuring ranges, depending on the instrument's features. The measurement of voltage (in volts) is a basic feature, whereby there are already initial differences as to whether only DC (direct current) or also AC (alternating current, true RMS value, AC+DC) can be measured. In addition, there is current (in amperes, also DC and AC) and the resistance (in ohms). For resistance measurement, the device must supply a constant measuring current, so that by measuring the voltage using Ohm's law, the resistance value can be determined. Depending on the features, multimeters can measure a variety of other quantities that can be derived from voltage and current. These include, for example, capacitance, frequency/period, continuity, temperature (resistance sensors such as thermocouples, RTD, etc.), duty cycle and more.

Question: What is a True RMS multimeter?

Answer: RMS stands for Root Mean Square. Multimeters that can truly determine the RMS value according to its technical definition are called True RMS multimeters. In contrast, simple measuring instruments determine the RMS value by filtering the signal into an averaged rectified value and applying a correction factor. The value is only correct the more sinusoidal the input signal is.

Question: What interfaces do the Keysight 34461A multimeters have?

Answer: The Keysight Trueform digital multimeter series includes the 34460A (6½ digit), 34461A (6½ digit), 34465A (6½ digit), and 34470A (7½ digit) models. All models feature USB host and device interfaces as standard (front/rear), and Ethernet/LAN/LXI is also part of the standard equipment starting with the 34461A model. GPIB/IEEE488 can added as an option.
