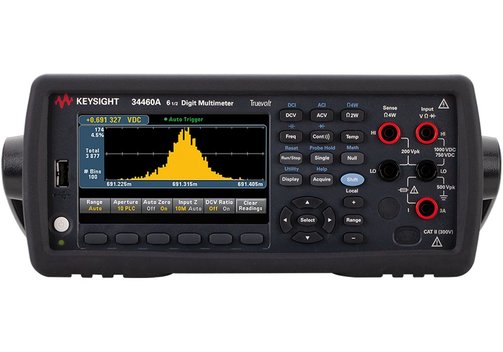

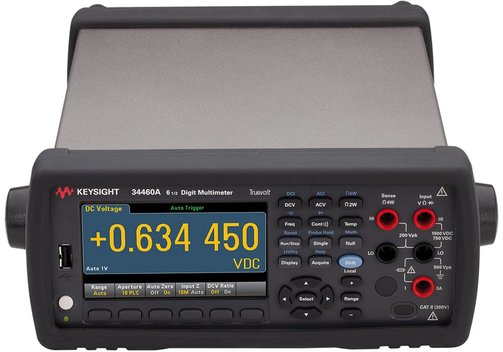

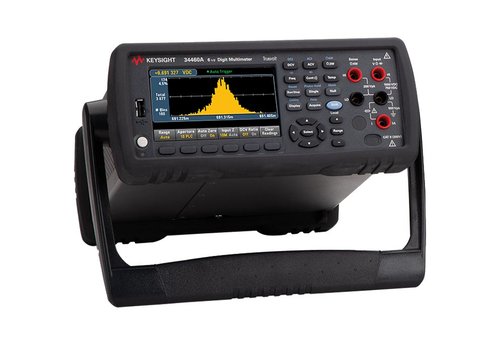

Keysight 34460A Truevolt 6½ Digit Basic Multimeter
Benefits of the Keysight 6½ Digit 34460A
- Allround basic multimeter with 6½ digit Truevolt technology.
- High accuracy 75 ppm.
- High speed 300 rdgs/s.
Basic Digital Multimeter with 6½ Digit Truevolt Technology.
Keysight's Truevolt-DMMs offer a full range of measurement capabilities and price points with higher levels of accuracy, speed, and resolution.
The 34460A is the basic multimeter. It measures currents in the 100 µA range. Maintain calibrated measurements: Auto calibration allows you to compensate for temperature drift so you can maintain measurement accuracy throughout your workday. Get more insight quickly: TruevoltDMM's graphical capabilities such as bar chart and histogram charts offer more insights quickly. The device has all measurement functions required for test systems, service and other applications with a tight budget.
- Measure with Truevolt confidence:
- Resolution up to 6½ digits.
- DC volt accuracy up to 75 ppm.
- Reading speed 300 rdgs/s.
- ▸BenchVue software enabled.
- BenchVue makes it simple to connect, control instruments, and automate test sequences.
- USB interface standard, LXI and GPIB optional.
All Models of the Series
- ▸34460A: Basic model, 6½ digits.
- ▸34461A: Adds accuracy, speed/throughput, external triggering.
- ▸34465A: Adds accuracy, functions, ranges, math, memory. Advanced options: Memory, digitizingg.
- ▸34470A: Adds even more resolution and accuracy; 7½ digit.
▸All models direct comparison.
Model Overview
| Model | Keysight 34460A - basic model, 6½ digits | |
| Digits of resolution | 6½ | |
| 1 year DCV accuracy | 75 ppm | |
| Max. reading rate | 300 rdgs/s | |
| Memory | 1,000 rdgs | |
| Measurements | DCV, ACV | 100 mV bis 1000 V |
| DCI | 100 µA to 3 A | |
| ACI | 100 µA to 3 A | |
| 2- and 4-wire resistance | 100 Ω to 100 MΩ | |
| Continuity, diode | Yes, 5 V | |
| Frequency, period | 3 Hz to 300 kHz | |
| Temperature | RTD/PT100, thermistor | |
| Capacitance | 1.0 nF to 100.0 µF | |
| Display | Color, graphical | |
| Statistical graphics | Histogram, bar chart | |
| IO interface | USB, optional LAN/LXI Core, optional GPIB | |
Included: Keysight 34460A, power cord, calibration certificate, documentation CD, IO Libraries CD, USB cable.
Software:Keysight IO Libraries Suite. ▸Supported by Keysight BenchVue. A BenchVue software licence (BV0001B) is now included with your instrument purchase. BenchVue makes it simple to connect, control instruments, and automate test sequences.
Note: The recommended calibration interval for these devices is 12 months. Call or send an E-Mail for more information on calibration!
Upgrades for the Keysight 34460A
| Upgrade products | Product option | Applicable models | Description |
| 3446GPBU | GPB | All | Add GPIB interface, user-installable |
| 3446SECU | SEC | All | Enable NISPOM and file security |
| 3446LANU | LAN | 34460A | Enable LAN interface and external triggering |
| 3446ACCU | ACC | 34460A | Add accessory kit, includes test leads, USB cable |
| 3446DIGU | DIG | 34465/70A | Enable high-speed digitizing and advanced triggering (included as standard, starting December 2018) |
| 3446MEMU | MEM | 34465/70A | Enable 2 million readings memory |
| - | Z54 | All | Certificate of calibration: ANSI/NCSL Z540.3-2006 |
Options and Accessories for the Keysight 34460A
| Model | Applicable models | Description |
| LAN | 34460A | Rear panel LAN/LXI web interface, external triggering for 34460A - factory enabled |
| SEC | 34460A, 34461A | NISPOM and file security for Truevoltseries DMMs - factory enabled |
| Z54 | 34460A, 34461A | Certificate of calibration – ANSI/NCSL Z540.3-2006, printed |
| GPB | 34460A, 34461A | GPIB interface module for Truevoltseries DMMs - factory installed |
| ACC | 34460A | Accessory kit for 34460A - documentation CDs, test leads, USB cable; shipped with unit from factory |
| 11059A | All | Kelvin probe set |
| 11060A | All | Surface-mount device probe |
| 11062A | All | Kelvin clip set |
| 34131A | All | Transit case |
| 34133A | All | Precision electronic test leads |
| 34134A | All | DC-coupled current probe |
| 34136A | All | High-voltage probe |
| 34138A | All | Test lead set |
| 34151A | All | Three signal wedge probe kit |
| 34152A | All | PT100/RTD 4-wire class A sensor kit |
| 34153A | All | PT100/RTD 4-wire class sensor elements |
| 34162A | All | Accessory pouch |
| 34171B | All | Input terminal block |
| 34172B | All | Calibration short |
| 34330A | All | 30 A current shunt |
| E2308A | All | Thermistor temperature probe |
| Y1133A | All | Low-thermal external digital multimeter scanning kit |
Can't find option or accessory product in the shop? Just call or send an E-Mail: sales@meilhaus.de!
Agilent’s Electronic Measurement Group is now Keysight Technologies.
