Benefits of the Meilhaus Electronic ME-9000p RS232/RS422/RS485 Interface Board
- Reliable transmission of serial data with full isolation.
- The ideal solution for potential differences between sending and transmitting devide.
- 4 or 8 ports on one board.

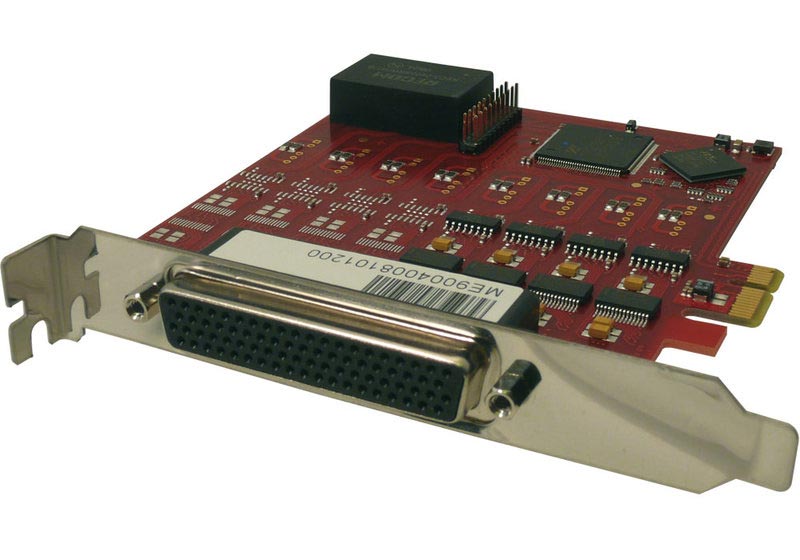

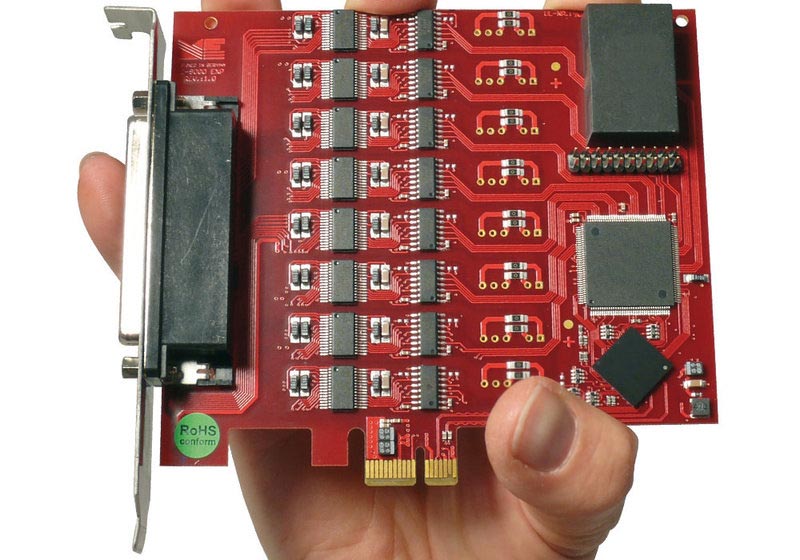

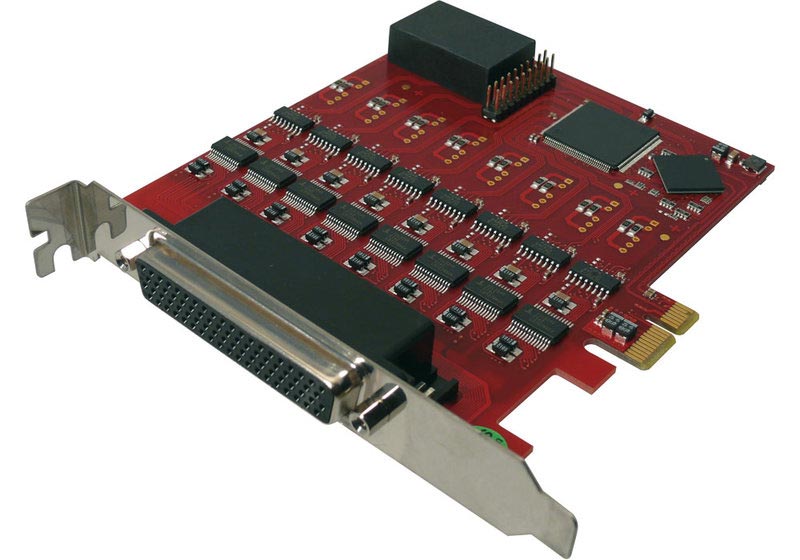

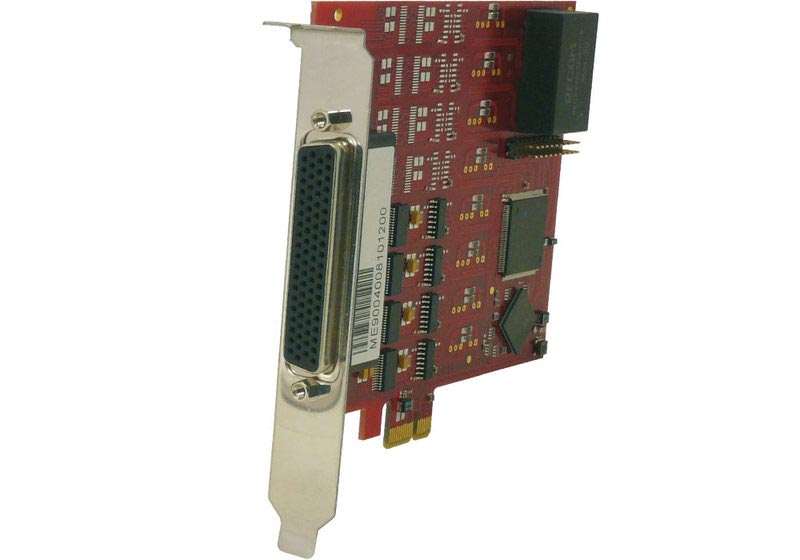

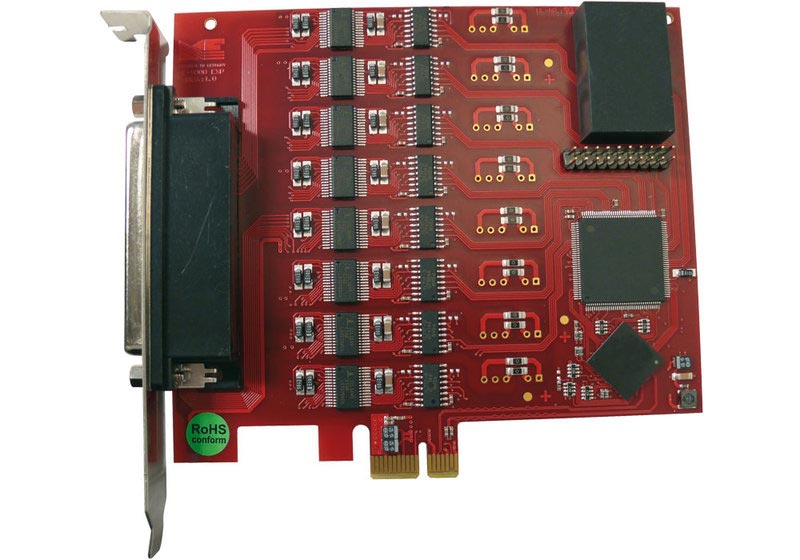

Highspeed Multi-Port Interface Board, Full Isolation
This opto-isolated multiport datacom board is the all-rounder among the serial interfaces: Up to 8 ports, RS232, 422, 485 and mixed, rates up to 1 MBaud, additional discrete digital I/O lines and a counter. The ideal solution for your point-of-sales, retail or industrial datacom applications at a fair price.
- Serial interface board.
- 4 or 8 ports.
- RS232 or RS422/485 ports or mixed versions RS232 + RS422/485.
- High-speed transmission rates up to 1 MBaud.
- All handshake lines wired to the connector.
- Full galvanic isolation of all ports with separate gounds (no common GND).
- ESD protection.
- 8 additional discrete TTL digital I/O lines, 1 counter 16 bit.
- Ideal solution for POS (point-of-sales) and retail applications.
- Plug&Play. For PCI-Express-, UniversalPCI- (3,3 V and 5 V) or CompactPCI/PXI-Bus (universal 3,3 V and 5 V).
Model Overview
| Model | Isolation of all port | Ports | Bus |
| ME-9000p/4 RS232 PCI | full floating (separate GNDs) | 4x RS232 | StandardPCI |
| ME-9000p/4 RS485 PCI | full floating (separate GNDs) | 4x RS422/RS485 | StandardPCI |
| ME-9000p/4 RS232 PCIe | full floating (separate GNDs) | 4x RS232 | PCI-Express |
| ME-9000p/4 RS485 PCIe | full floating (separate GNDs) | 4x RS422/RS485 | PCI-Express |
| ME-9000p/8 RS232 PCI | full floating (separate GNDs) | 8x RS232 | StandardPCI |
| ME-9000p/8 RS485 PCI | full floating (separate GNDs) | 8x RS422/RS485 | StandardPCI |
| ME-9000p/8 MIX PCI | full floating (separate GNDs) | 4x RS232 und 4x RS422/RS485 | StandardPCI |
| ME-9000p/8 RS232 PCIe | full floating (separate GNDs) | 8x RS232 | PCI-Express |
| ME-9000p/8 RS485 PCIe | full floating (separate GNDs) | 8x RS422/RS485 | PCI-Express |

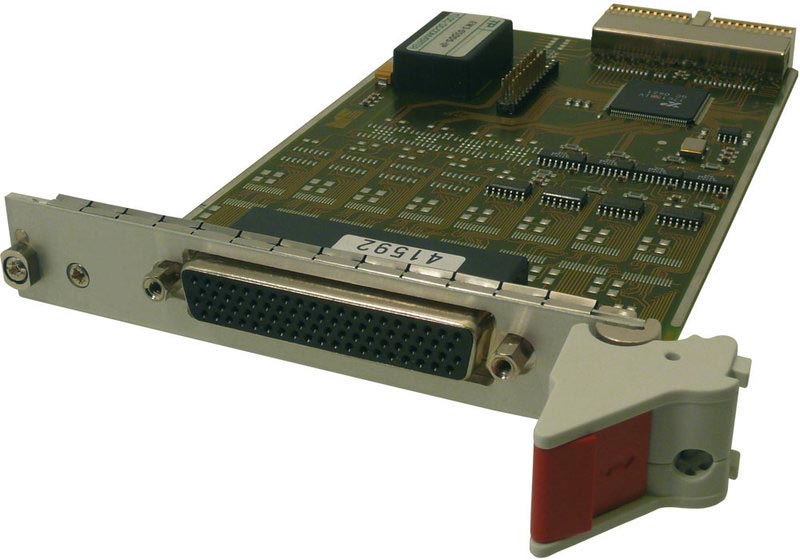

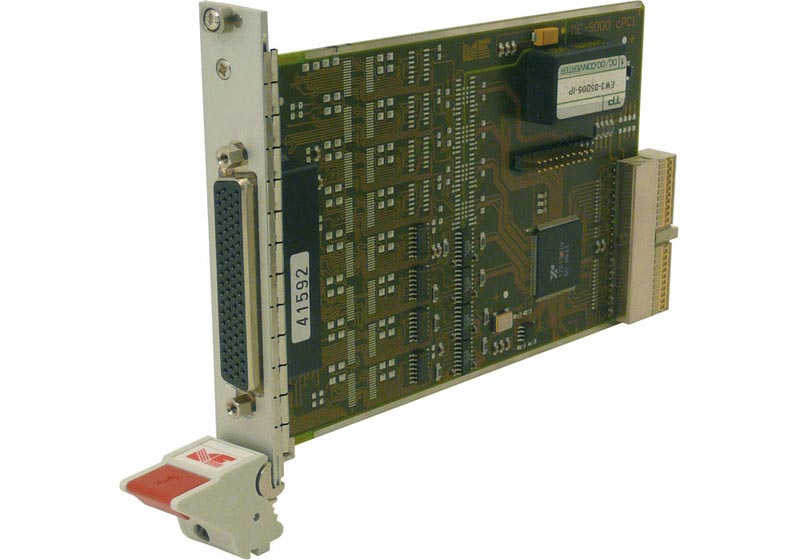

| ME-9000p/8 RS232 cPCI | full floating (separate GNDs) | 8x RS232 | 3 U CompactPCI |
| ME-9000p/8 RS485 cPCI | full floating (separate GNDs) | 8x RS422/RS485 | 3 U CompactPCI |
The models available in the shop are standard products. Other models are produced only, if ordered in higher numbers.
Included: ME9000p one of the versions, software and PDF manual (download).
Software: ME-9x00 driver software for Windows 10, 7, Vista, XP (32 and 64 bit). Works with all programming environments that can access the Win32Com-API (eg. Visual C, Delphi). Operates as standard COM ports with Windows, VEE Pro, LabVIEW and others.
Software: ME-9x00 driver software for Windows 10, 7, Vista, XP (32 and 64 bit). Works with all programming environments that can access the Win32Com-API (eg. Visual C, Delphi). Operates as standard COM ports with Windows, VEE Pro, LabVIEW and others.
Product Code
| ME-9000 | Isolation | Ports | RS | Bus |
| Isolation | : | No code = not isolated i = Standard isolation with common ground p = Full isolation with separate (no common) grounds | ▸ME-9000: Standard models ▸ME-9000i: Models with isolation of all ports (common GND). ▸ME-9000p: Models with floating isolation of all ports (separate GNDs). |
| Ports | : | Number of ports = 2 (special models), 4, 8 | |
| RS | : | RS232, RS485 (RS422 or RS485), MIX (half RS232, half RS422/RS485) | |
| Bus | : | PCIe (PCI-Express), PCI or cPCI (3 U CompactPCI) | |
