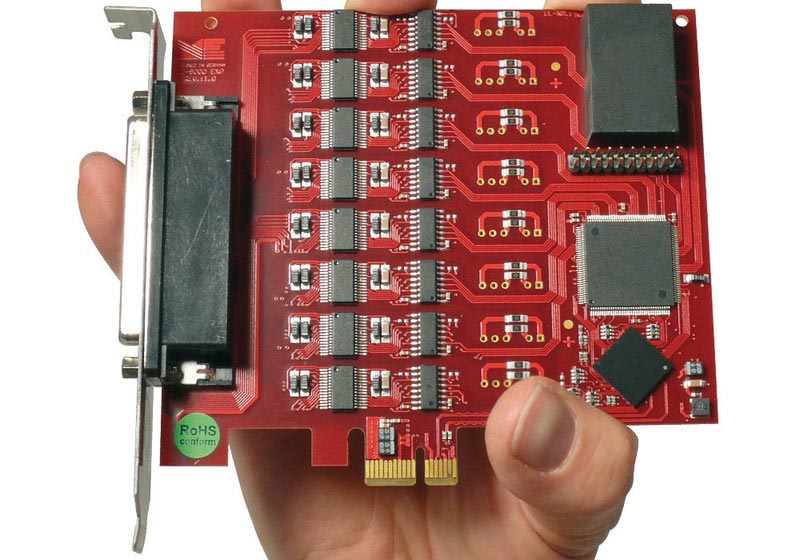

ME-9000i isolated Serial Interface Board, RS232, RS422, RS485
Description
Accessories
Files/Downloads
Benefits of the Meilhaus Electronic ME-9000i RS232/RS422/RS485 Interface Board
- Protects your system with isolation.
- 4 or 8 ports, RS232, RS422/RS485 or mixed on one board.
- English and German user manual.
Highspeed Multi-Port Interface Board with Standard Isolation
This opto-isolated multiport datacom board offers high safety with standard isolation. Up to 8 ports, RS232, RS422, RS485 and mixed, rates up to 1 MBaud, additional discrete digital I/O lines and a counter. The ideal solution for your point-of-sales, retail or industrial datacom applications at a fair price.
- Serial interface boards.
- 4 or 8 ports.
- RS232 or RS422/RS485 ports or mixed versions RS232 + RS422/RS485.
- High-speed transmission rates up to 1 MBaud.
- All handshake lines wired to the connector.
- Galvanic isolation of all ports with common gound.
- ESD protection.
- 8 additional discrete TTL digital I/O lines, 1 counter 16 bit.
- Ideal solution for POS (point-of-sales) and retail applications.
- Plug&Play. For PCI-Express-, UniversalPCI- (3,3 V and 5 V) or CompactPCI/PXI-Bus (universal 3,3 V and 5 V).
Model Overview
| Model | Isolation of all ports | Ports | Bus |
| ME-9000i/4 RS232 PCI | Standard (common GND) | 4x RS232 | StandardPCI |
| ME-9000i/4 RS485 PCI | Standard (common GND) | 4x RS422/RS485 | StandardPCI |

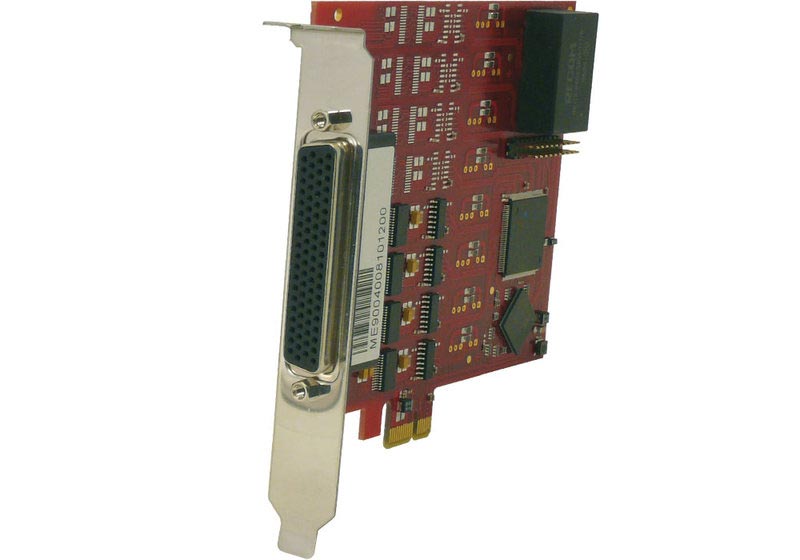

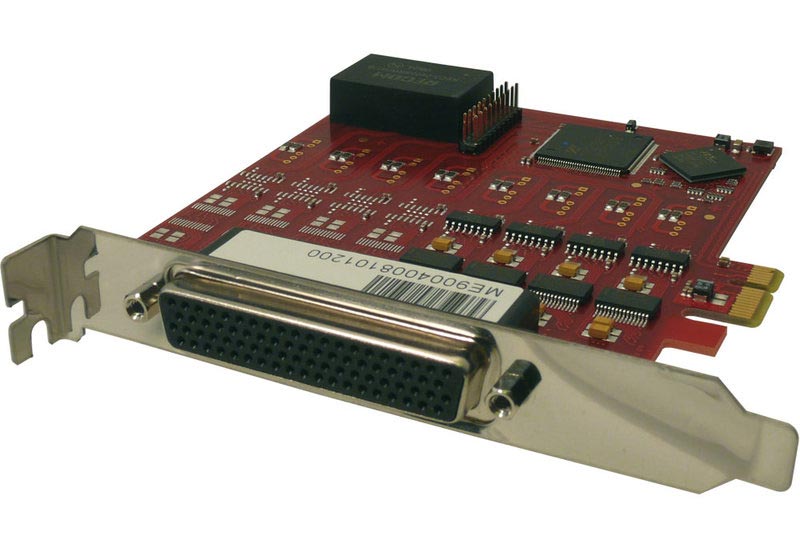

| ME-9000i/4 RS232 PCIe | Standard (common GND) | 4x RS232 | PCI-Express |
| ME-9000i/4 RS485 PCIe | Standard (common GND) | 4x RS422/RS485 | PCI-Express |

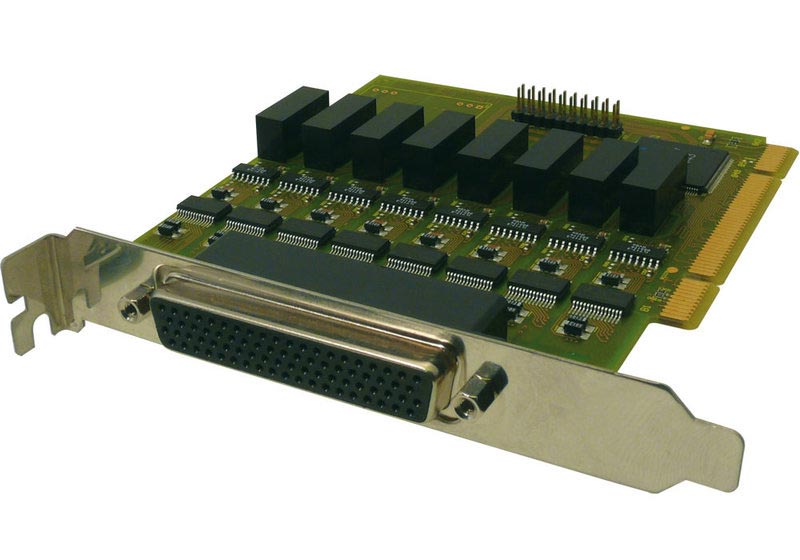

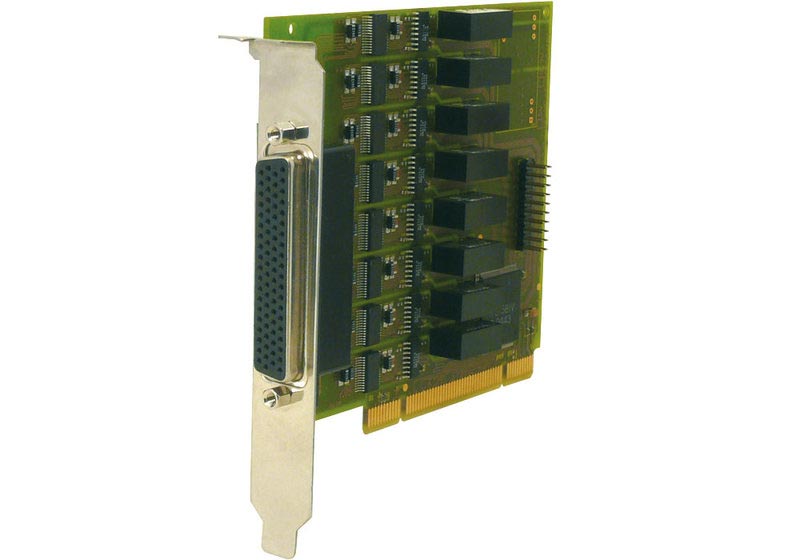

| ME-9000i/8 RS232 PCI | Standard (common GND) | 8x RS232 | StandardPCI |
| ME-9000i/8 RS485 PCI | Standard (common GND) | 8x RS422/RS485 | StandardPCI |
| ME-9000i/8 MIX PCI | Standard (common GND) | 4x RS232 and 4x RS422/RS485 | StandardPCI |

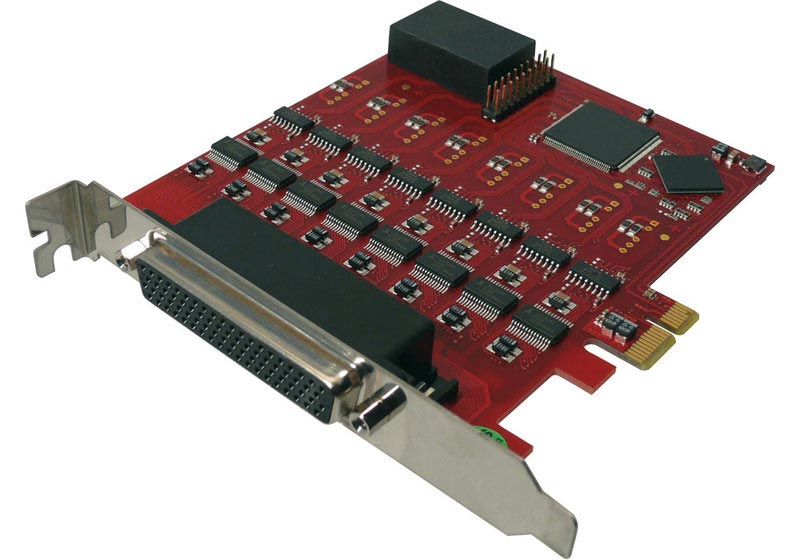

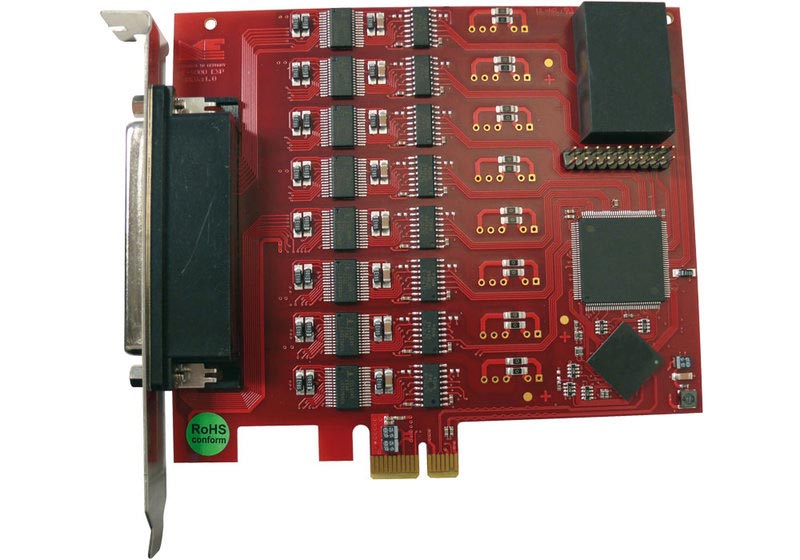

| ME-9000i/8 RS232 PCIe | Standard (common GND) | 8x RS232 | PCI-Express |
| ME-9000i/8 RS485 PCIe | Standard (common GND) | 8x RS422/RS485 | PCI-Express |
| ME-9000i/8 MIX PCIe | Standard (common GND) | 4x RS232 and 4x RS422/RS485 | PCI-Express |

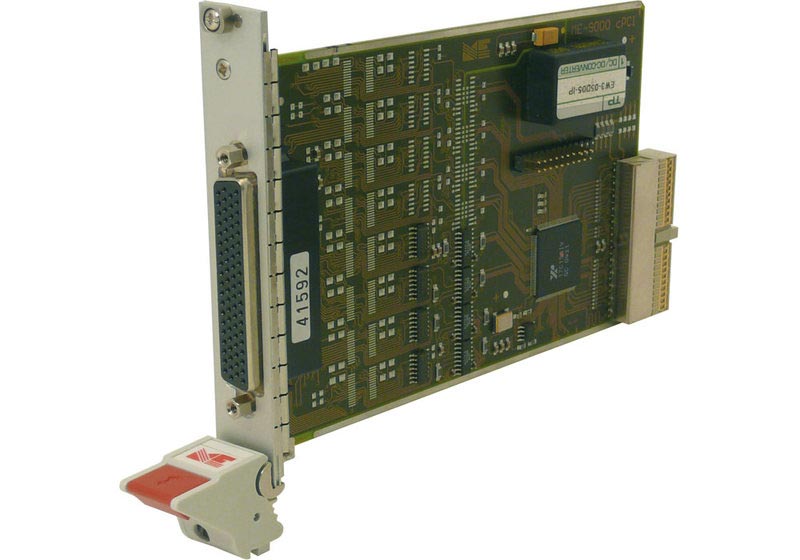

| ME-9000i/8 RS232 cPCI | Standard (common GND) | 8x RS232 | 3 U CompactPCI |
| ME-9000i/8 RS485 cPCI | Standard (common GND) | 8x RS422/RS485 | 3 U CompactPCI |
The models available in the shop are standard products. Other models are produced only, if ordered in higher numbers.
Included: ME9000i one of the versions, software and PDF manual (download).
Software: ME-9x00 driver software for Windows 10, 7, Vista, XP (32 and 64 bit). Works with all programming environments that can access the Win32Com-API (eg. Visual C, Delphi). Operates as standard COM ports with Windows, VEE Pro, LabVIEW and others.
Software: ME-9x00 driver software for Windows 10, 7, Vista, XP (32 and 64 bit). Works with all programming environments that can access the Win32Com-API (eg. Visual C, Delphi). Operates as standard COM ports with Windows, VEE Pro, LabVIEW and others.
Product Code
| ME-9000 | Isolation | Ports | RS | Bus |
| Isolation | : | No code = not isolated i = Standard isolation with common ground p = Full isolation with separate (no common) grounds | ▸ME-9000: Standard models ▸ME-9000i: Models with isolation of all ports (common GND). ▸ME-9000p: Models with floating isolation of all ports (separate GNDs). |
| Ports | : | Number of ports = 2 (special models), 4, 8 | |
| RS | : | RS232, RS485 (RS422 or RS485), MIX (half RS232, half RS422/RS485) | |
| Bus | : | PCIe (PCI-Express), PCI or cPCI (3 U CompactPCI) | |
