Benefits of the IT-M3900B Series Bidirectional Power Supply and Regenerative Load

  • Switch between source and load mode with one button.
  • Regenerative system.
  • Battery charge/discharge test and simulation.

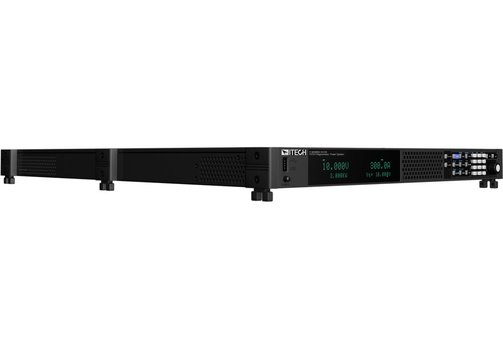

ITECH IT-M3900B Regenerative Power System

The IT-M3900B regenerative power system includes two-in-one devices up to 12 kW. They can work as bidirectional DC power supplies and as independent regenerative loads. With only one button the user can switch between source and load mode - ideal for applications such as battery, energy storage, electric vehicle, green energy and some ATE fields.

  • 2 in 1: Bidirectional power supply and regenerative load.

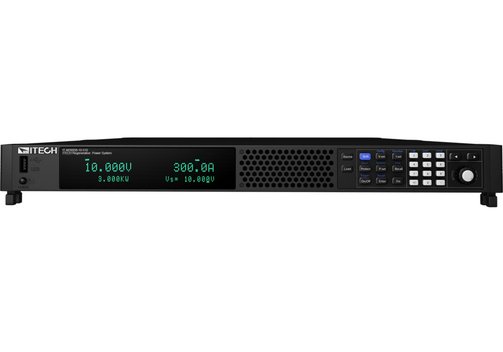

  • One button switch between source and load on front panel.
  • Compact design, 1U for 6 kW, 2U for 12 kW.
  • Voltage range 10...1500 V, current range -720...1020 A, power range up to 12 kW.
  • Bidirectional energy flow between the DUT and the grid, current seamless switching.
  • Master/slave parallel connection with patented technology for good performance with power extension.
  • Efficient power regeneration - reduce cost of electricity and cooling.
  • CC and CV priority modes.
  • Adjustable output impedance.
  • Battery charge and discharge test and battery simulation.
  • Partial pre-compliant with LV123, LV148, DIN40839, ISO-16750-2, SAEJ1113-11,LV124 and ISO21848 automotive testing standards (not for 10-V models).
  • Slope of voltage, current and power is settable.
  • Simulation of dynamic driving conditions, up to 10 million points.
  • 8 operation modes under Source mode: CC, CV, CP, CR, CC+CV, CV+CR, CR+CC, CC+CV+CP+CR.
  • Multiple protection: OVP, ±OCP, ±OPP, OTP, voltage transient drop protection/anti-islanding/power grid detection/pre-charge.

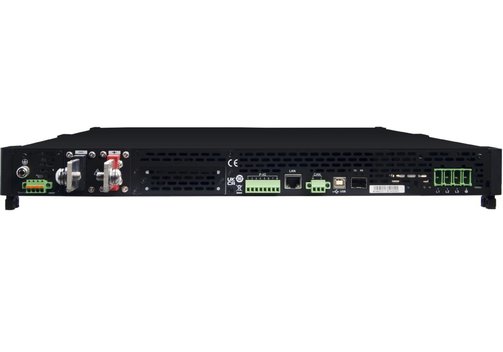

  • Built-in USB, CAN, Ethernet/LAN, digital-I/O interfaces, optional GPIB, analog, RS232.

Model Overview

ModelVoltageCurrentPowerResolutionAccuracyHeightInterface
IT-M3901B-10-17010 V-120...170 A-1200...1700 W0.001 V/0.01 A≤0.03% + 0.03% FS/
≤0.1% + 0.1% FS		1UUSB, CAN, Ethernet/LAN,
digital-I/O port,
optional GPIB, analog, RS232
IT-M3903B-10-34010 V-240...340 A-2400...3400 W1U
IT-M3905B-10-51010 V-360...510 A-3600...5100 W0.001V/0.1 A1U
IT-M3910B-10-102010 V-720...1020 A-7200...10200 W2U
IT-M3902B-32-8032 V±80 A±2 kW0.001V/0.01 A1U
IT-M3904B-32-16032 V±160 A±4 kW1U
IT-M3906B-32-24032 V±240 A±6 kW1U
IT-M3912B-32-48032 V±480 A±12 kW2U
IT-M3902B-80-4080 V±40 A±2 kW1U
IT-M3904B-80-8080 V±80 A±4 kW1U
IT-M3906B-80-12080 V±120 A±6 kW1U
IT-M3912B-80-24080 V±240 A±12 kW2U
IT-M3902B-300-20300 V±20 A±2 kW0.01V/0.001 A1U
IT-M3904B-300-40300 V±40 A±4 kW1U
IT-M3906B-300-60300 V±60 A±6 kW1U
IT-M3912B-300-120300 V±120 A±12 kW2U
IT-M3902B-500-12500 V±12 A±2 kW1U
IT-M3904B-500-24500 V±24 A±4 kW1U
IT-M3906B-500-36500 V±36 A±6 kW1U
IT-M3912B-500-72500 V±72 A±12 kW2U
IT-M3902B-800-8800 V±8 A±2 kW1U
IT-M3904B-800-16800 V±16 A±4 kW1U
IT-M3906B-800-24800 V±24 A±6 kW1U
IT-M3912B-800-48800 V±48 A±12 kW2U
IT-M3906B-1500-121500 V±12 A±6 kW1U

Overview ITECH Series IT-M3900B, C, D

  • ▸IT-M3900B power system: DC source, full sink/load and one-button switching, battery testing, regenerative.
  • ▸IT-M3900C: DC source, sink/load, regenerative.
  • ▸IT-M3900D: DC source.
Model (1)Model (2)Model (3)VoltageCurrentPowerSink/load modesBattery testResolutionHeight
B, CDB, CDBCDBCD
IT-M3901BCD-10-17010 V-120...170 A170 A-1200...1700 W1700 WCC, CV, CP, CR
CC+CV, CV+CR, CR+CC,
CC+CV+CW+CR;
one button switch power supply/load		CC, CV, CP, CR-yes--0.001 V/0.01 A1U
IT-M3903BCD-10-34010 V-240...340 A340 A-2400...3400 W3400 W1U
IT-M3905BCD-10-51010 V-360...510 A510 A-3600...5100 W5100 W0.001V/0.1 A1U
IT-M3910BCD-10-102010 V-720...1020 A1020 A-7200...10200 W10200 W2U
IT-M3902BCD-32-8032 V±80 A80 A±2 kW2 kWCC, CV, CP, CR
CC+CV, CV+CR, CR+CC,
CC+CV+CW+CR;
one button switch power supply/load		CC, CV, CP, CR-yes--0.001V/0.01 A1U
IT-M3904BCD-32-16032 V±160 A160 A±4 kW4 kW1U
IT-M3906BCD-32-24032 V±240 A240 A±6 kW6 kW1U
IT-M3912BCD-32-48032 V±480 A480 A±12 kW12 kW2U
IT-M3902BCD-80-4080 V±40 A40 A±2 kW2 kWCC, CV, CP, CR
CC+CV, CV+CR, CR+CC,
CC+CV+CW+CR;
one button switch power supply/load		CC, CV, CP, CR-yes--1U
IT-M3904BCD-80-8080 V±80 A80 A±4 kW4 kW1U
IT-M3906BCD-80-12080 V±120 A120 A±6 kW6 kW1U
IT-M3912BCD-80-24080 V±240 A240 A±12 kW12 kW2U
IT-M3902BCD-300-20300 V±20 A20 A±2 kW2 kWCC, CV, CP, CR
CC+CV, CV+CR, CR+CC,
CC+CV+CW+CR;
one button switch power supply/load		CC, CV, CP, CR-yes--0.01V/0.001 A1U
IT-M3904BCD-300-40300 V±40 A40 A±4 kW4 kW1U
IT-M3906BCD-300-60300 V±60 A60 A±6 kW6 kW1U
IT-M3912BCD-300-120300 V±120 A120 A±12 kW12 kW2U
IT-M3902BCD-500-12500 V±12 A12 A±2 kW2 kWCC, CV, CP, CR
CC+CV, CV+CR, CR+CC,
CC+CV+CW+CR;
one button switch power supply/load		CC, CV, CP, CR-yes--1U
IT-M3904BCD-500-24500 V±24 A24 A±4 kW4 kW1U
IT-M3906BCD-500-36500 V±36 A36 A±6 kW6 kW1U
IT-M3912BCD-500-72500 V±72 A72 A±12 kW12 kW2U
IT-M3902BCD-800-8800 V±8 A8 A±2 kW2 kWCC, CV, CP, CR
CC+CV, CV+CR, CR+CC,
CC+CV+CW+CR;
one button switch power supply/load		CC, CV, CP, CR-yes--1U
IT-M3904BCD-800-16800 V±16 A16 A±4 kW4 kW1U
IT-M3906BCD-800-24800 V±24 A24 A±6 kW6 kW1U
IT-M3912BCD-800-48800 V±48 A48 A±12 kW12 kW2U
IT-M3906BCD-1500-121500 V±12 A12 A±6 kW6 kWCC, CV, CP, CR
CC+CV, CV+CR, CR+CC,
CC+CV+CW+CR;
one button switch power supply/load		CC, CV, CP, CR-yes--1U

Accuracy - all models: ≤0.03% + 0.03% FS/≤0.1% + 0.1% FS.
Interfaces - all models: USB, CAN, Ethernet/LAN, digital-I/O port, optional GPIB, analog, RS232.

CC = constant current, CV = constant voltage, CP (also CW) = constant power/watt, CR = constant resistance.
