Keysight E5061B Vector Network Analyzer up to 3GHz

starting 28.537,39
including VAT free shipping (Germany)
min Quantity
1 piece
Unit price
base price
Variants
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Accessories
Files/Downloads

Benefits of the E5061B 2-Port VNA up to 1.5 GHz or 3 GHz

  • 2-Port, 50 or 75 Ω VNA up to 3 GHz.
  • 3 option sets available with upgrade possibilities (transmission/reflection, S-parameter, LF-RF network analyzer).
  • Variety of calibration types available.

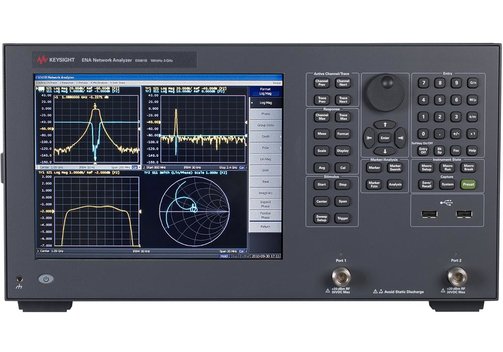

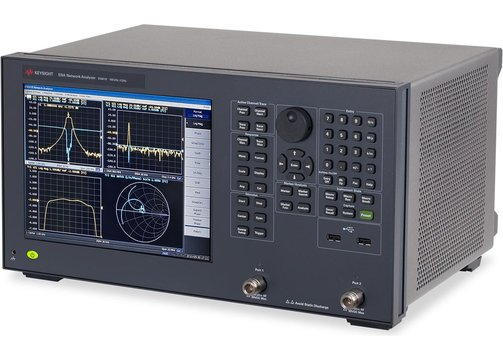

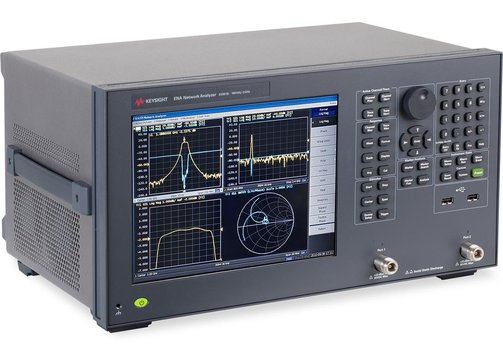

Keysight E5061B Vector Network Analyzer up to 3 GHz

The Keysight E5061B are 2-port VNAs (Vector Network Analyzer) up to 3 GHz. Three option sets are available: Economy models with transmission/reflection test set, versions with S-parameter test set, and LF-RF network analyzer with DC bias source/S-parameter test set and gain-phase ports.

  • 2-Port, 50 or 75 Ω VNA.
  • Frequency ranges up to 1.5 or 3 GHz.
  • Low frequency coverage down to 5 Hz.
  • Built-in DC bias source.
  • Impdeance analysis capabilities.
  • Power integrity measurements.
  • 3 option sets available with upgrade possibilities:
    • Economy transmission/reflection test set.
    • S-parameter test set.
    • LF-RF network analyzer with DC bias source/S-parameter test set and gain-phase ports.
  • 26.4 cm wide high-resolution multi touch-screen LCD.
  • LAN/Ethernet, USB, and GPIB/IEEE488 interfaces.

Model Overview

Model/optionE5061B-115E5061B-117E5061B-135E5061B-137E5061B-215E5061B-217E5061B-235E5061B-237E5061B-3L3E5061B-3L4E5061B-3L5
Economy transmission/reflection test setS-parameter test setLF-RF network analyzer with DC bias source/S-parameter test set and gain-phase ports
Ports2
Frequency100 kHz...1.5 GHz100 kHz...3 GHz100 kHz...1.5 GHz100 kHz...3 GHz5 Hz...500 MHz5 Hz...1.5 GHz5 Hz...3 GHz
Resolution(Test port output/source) 1 mHz
System impedance50 Ω75 Ω 50 Ω75 Ω50 Ω75 Ω50 Ω75 Ω50 Ω50 Ω50 Ω
Dynamic range120 dB (detailed see datasheet)
Trace noise0.005 dBRMS (spec.)
Stability0.01 dB/°C
Gain phase measurement--Source range 5 Hz...30 MHz, resolution 1 mHz
DC bias--Output port 1, LF out; range 0...±40 V (100 mA max.); resolution 1 mV ±(0...10 V)/4 mV ±(10...40 V)
IF bandwidth settingsRange 1 Hz...300 kHz, nominal settings are: 1, 1.5, 2, 3, 4, 5, 7
Number of points per traces2 to 1,601
Key software capabilityTime domain analysis, wireless power transfer analysis, impedance analysis
Calibration types availableResponse: Simultaneous magnitude and phase correction of frequency response errors for either reflection or transmission measurements.
Response and isolation: Compensates for frequency response and crosstalk errors of transmission measurements.
Enhanced response: Compensates for frequency response and source match errors.
One-port calibration: Compensates for directivity, frequency response and source match errors.
Full 2-port calibration (option 215, 235, 217, 237, 3L3, 3L4, 3L5): Compensates for directivity, source match, reflection tracking, load match, transmission tracking and crosstalk. Crosstalk calibration can be omitted.
Interpolated error correction: With any type of accuracy enhancement applied, interpolated mode recalculates the error coefficients when the test frequencies are changed. The number of points can be increased or decreased and the start/stop frequencies can be changed.
Velocity factor: Enter the velocity factor to calculate the equivalent physical length.
Reference port extension: Redefine the measurement plane from the plane where the calibration was done.
Display10.4"/26.4 cm multi touch-screen LCD, resolution XGA (1024x768)

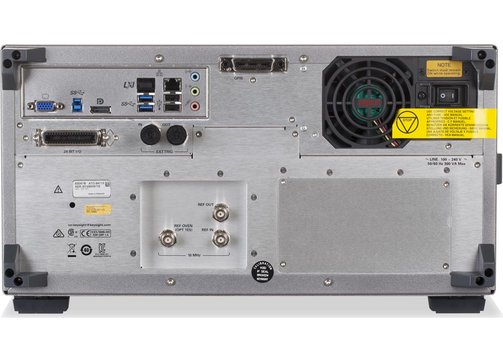

InterfacesLAN/Ethernet, USB, GPIB/IEEE488; SCPI-compatible; handler-I/O
Dimensions (mm)433 x 222 x 297; depending on integrated options approx. 13.1 to 14.4 kg

Keysight E506x Series Model Comparison

Model▸E5061B▸E5063A
Frequency100 kHz...1.5 GHz
100 kHz...3 GHz or
5 Hz...0.5 GHz
5 Hz...1.5 GHz
5 Hz...3 GHz
100 kHz...0.5 GHz
100 kHz...1.5 GHz
100 kHz...3 GHz
100 kHz...4.5 GHz
100 kHz...6.5 GHz
100 kHz...8.5 GHz
100 kHz...14 GHz
100 kHz...18 GHz
Test ports2 port, 50/75 Ω or
2-port gain-phase
2 port, 50 Ω
System dynamic range (10 Hz IFBW)120 dB117 dB
Trace noise0.005 dBRMS (3 kHz IFBW)0.005 dBRMS (70 kHz IFBW)
Cycel time (typ. 2-port cal, max. IFBW, 201 pts)21 ms19 ms
Source power-45...0 dBm-20...0 dBm
Temperature stability (typ.)0.01 dB/°C0.01 dB/°C
ConnectivityLAN/Ethernet, USB, GPIB, Handler I/OLAN/Ethernet, USB, GPIB, Handler I/O
Impedance analysis-
Wireless power transfer analysis
Time domain analysis
PCB test wizard-
Material properties measurements✓ (N1500A material measurement suire requred)✓ (N1500A material measurement suire requred)
Upgrade to higher frequency

Agilent's Electronic Measurement Group is now Keysight Technologies.
