Aaronia UBBV Series Low-Noise, Broadband Pre-Amplifiers for Spectrum Analyzers

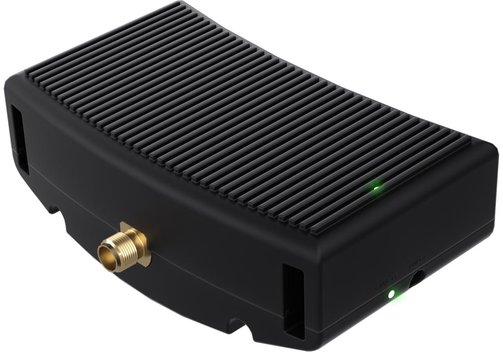

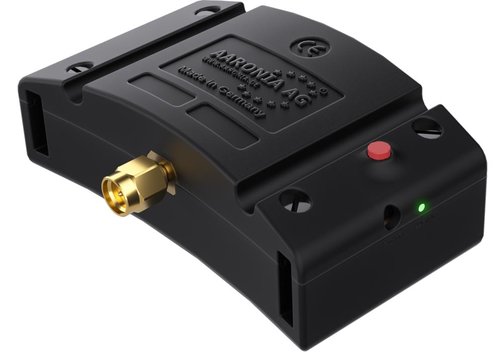

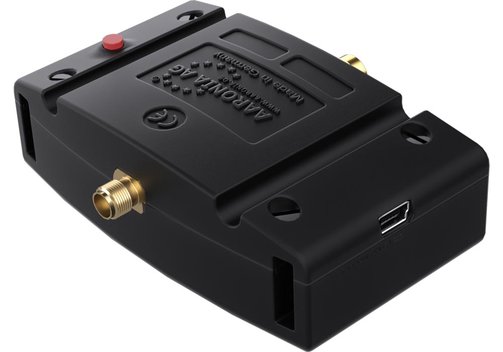

The Aaronia UBBV series are low-noise, broadband pre-amplifiers for spectrum analyzers such as the Aaronia SPECTRAN series, or EMC measurement antennas. The compact, external preamps improve performance when measuring weak signals. Power is supplied by a 7.4 V/800 mAh LiPo battery (included).

Model Overview

ModelFrequency rangeGainConnectorsOther specificationsDimensions (mm)
UBBV-NF25301/0011 Hz...50 MHzTyp. 25 dBIn: SMA female, Out: SMA male, impedance: 50 ΩMax. voltage 10 VDC, 3 VAC or 2.1 VRMS; max. output +15 dBm81 x 61 x 29; 146 g
UBBV-NF35301/0021 Hz...30 MHzTyp. 35 dBIn: SMA female, Out: SMA male, impedance: 50 ΩMax. voltage 10 VDC, 3 VAC or 2.1 VRMS; max. output +10 dBm81 x 61 x 29; 146 g
UBBV-1060-BPA302/001100 MHz...6 GHzTyp. 22 dBIn: SMA female, Out: SMA male, impedance: 50 ΩNoise typ. 1.4 dB; IP3 (bypass mode) typ. +48 dBm; max. input power (AMP - ON): 8 dBm/20 dBm (max. 5 min); max. input power (AMP - BYPASS): 16 dBm/30 dBm (max. 5 min); P1dB +21 dBm at 2 GHz; max. output +21 dBm81 x 61 x 29; 146 g
UBBV-0910302/0029 kHz...6 GHzTyp. 22 dBIn: SMA female, Out: SMA male, impedance: 50 ΩNoise typ. 0.4 dB; max. input +10 dBm; max. output +8 dBm81 x 61 x 29; 146 g
UBBV-1302/0041 MHz...1 GHzTyp. 40 dBIn: SMA female, Out: SMA male, impedance: 50 ΩNoise typ. 3.5 dB; max. input +15 dBm; max. output +15 dBm81 x 61 x 29; 146 g
UBBV-2302/0051 MHz...10 GHzTyp. 40 dBIn: SMA socket, Out: SMA plug, impedance: 50 ΩNoise typ. 3.5 dB; max. input +15 dBm; max. output +15 dBm81 x 61 x 29; 146 g
UBBV-DC20303/001DC...20 GHzTyp. 14 dBIn: SMA female, Out: SMA male, impedance: 50 ΩNoise typ. 2.5 dB; max. input +15 dBm; max. output +16 dBm81 x 61 x 29; 146 g
