EOL/this product is obsolete and not available anymore from the manufacturer.

Benefits of the U2722A USB SMU - More Than Just a Power Supply!

  • Source Measure Unit/SMU: Source and measurement instrument in one.
  • 3-chnnel, -20...+20 V/-120...+120 mA.

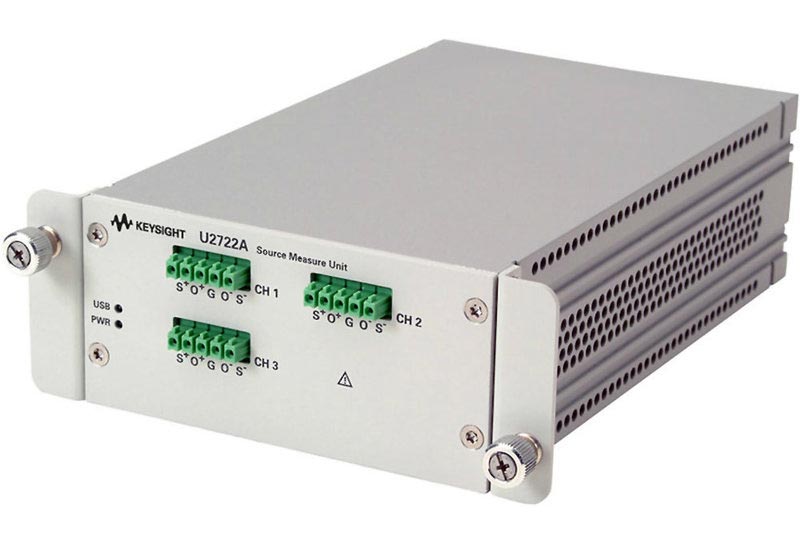

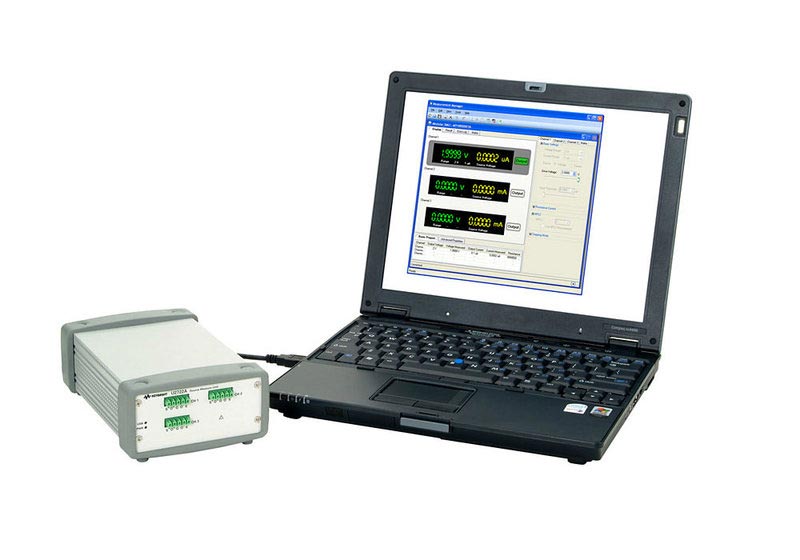

  • Can be used directly at PC USB port or in chassis U2781A.

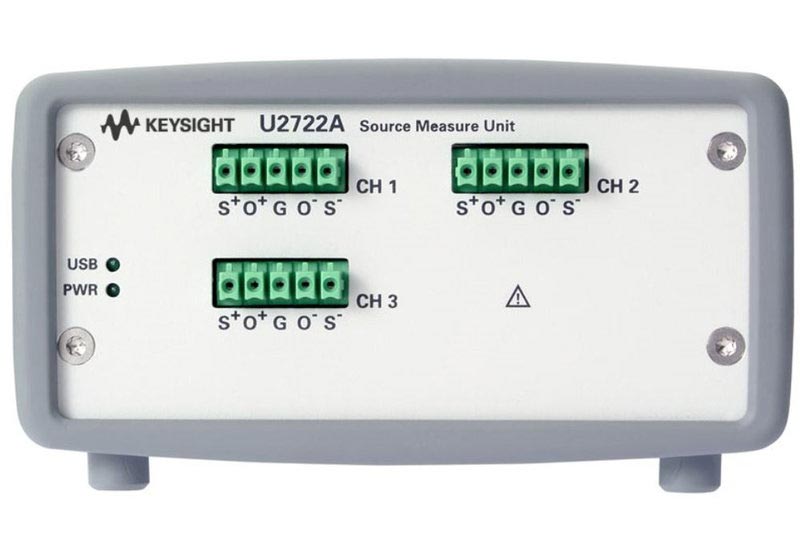

Keysight U2722A USB SMU/Source Measure Unit

The Keysight U2722A/U2723A offers many special features, for example voltage and current programming/readback with very accurate measurements or four quadrant operation. Ideal for test and measurements of solar cells and more! Can be used as stand-alone devices directly at a PC USB port or as modular components in a ▸mainframe/chassis U2781A.

  • High-speed USB 2.0 (480 MBit/s) TMC 488.2 compatible.
  • 3-channel SMU, -20...+20 V/-120...+120 mA.
  • Model ▸U2722A: Standard model.
    Model ▸U2723A with embedded test scripts: Up to 2 test scripts per channel, simplifies automatic tests.
  • Four quadrant operation (±20 V).
  • Max. current output 120 mA per channel.
  • High measurement sensitivity 100 pA with 16 bit resolution.
  • 0.1% basic accuracy.
  • Measurement of low currents down to the nA range.
  • Voltage and current programming/readback.
  • Plug&Play installation and configuration.
  • Used as USB device or modular component in a ▸mainframe/chassis U2781A.
  • Incl. software Keysight Measurement Manager. Compatible with VEE, LabVIEW, Visual Studio and others.
  • A BenchVue software licence (BV0023B) is now included with your instrument purchase. BenchVue makes it simple to connect, control instruments, and automate test sequences.

Included: USB module U 2722A, power supply adaptor, USB cabel, CD with software and user manual, quick reference, mounting kit for mainframe ▸U2781A.
Software: Keysight Connectivity-Software. Keysight IO Libraries Suite. Software drivers for programming environments: IVI-COM driver. Compatible with Keysight VEE Pro (formerly Agilent VEE, HP-VEE), T&M Toolkit, Microsoft Visual Studio .NET C/C++, Visual Basic 6, National Instruments LabVIEW, The MathWorks MATLAB. Keysight Measurement Manager. A BenchVue software licence (BV0023B) is now included with your instrument purchase. BenchVue makes it simple to connect, control instruments, and automate test sequences.

Note: The recommended calibration interval for these devices is 12 months. Call or send an E-Mail for more information on calibration!

3Y Warranty & Keysight CARE

Agilent’s Electronic Measurement Group is now Keysight Technologies.
