Aaronia SPECTRAN V6 PLUS USB Real-Time Spectrum Analyzers

Benefits of the SPECTRAN V6 PLUS RSA up to 80, 160, or 245 MHz

• Frequency range up to 6/8 GHz, RTBW up to 80 or max. 245 MHz.
• Very compact USB PC-module formfactor.
• Sweep speed up to 300 GHz/s or max. 1100 GHz/s.

Aaronia SPECTRAN V6 PLUS USB Real-Time Spectrum Analyzers

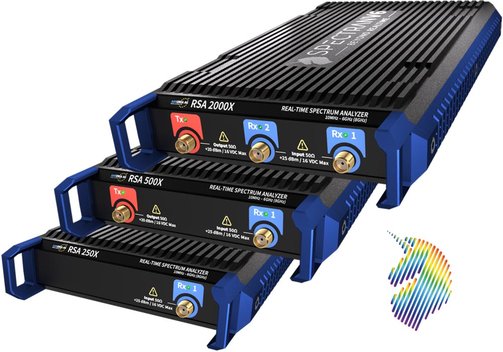

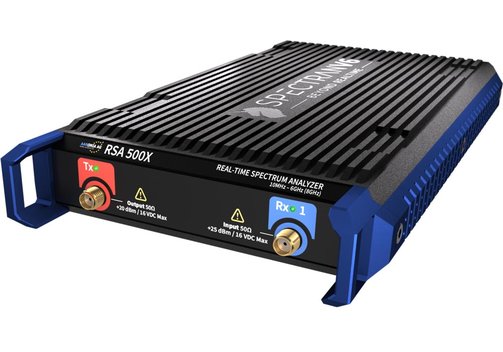

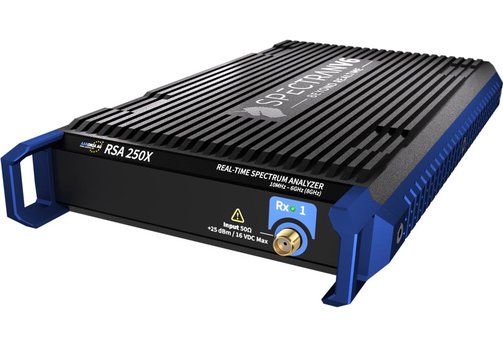

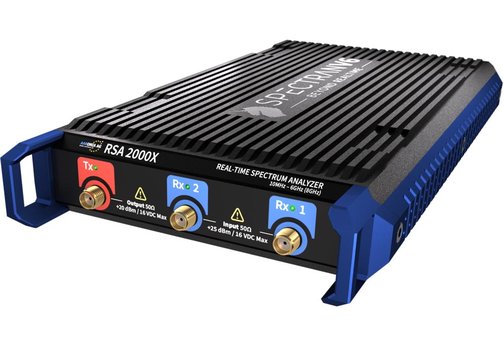

Models SPECTRAN V6 PLUS 250XA-6, SPECTRAN V6 PLUS 500XA-6, SPECTRAN V6 PLUS 2000XA-6

The devices of the Aaronia SPECTRAN V6 PLUS series are real-time high-performance spectrum analyzers with an integrated signal generator that capture even the shortest signal transmissions. The analyzers scan 6 GHz in less than 5 ms. The devices are ideal for RF tasks such as spectrum monitoring, RF and microwave measurements, interference hunting, EMC tests, or Wi-Fi and radio network measurements. With a weight of only 850 g, the SPECTRAN V6 PLUS devices are ideally suited for measurements in the field as well as in the laboratory. The RTSA-Suite PRO PC analysis software supplied transforms the SPECTRAN V6 PLUS modules into full benchtop spectrum analyzers.

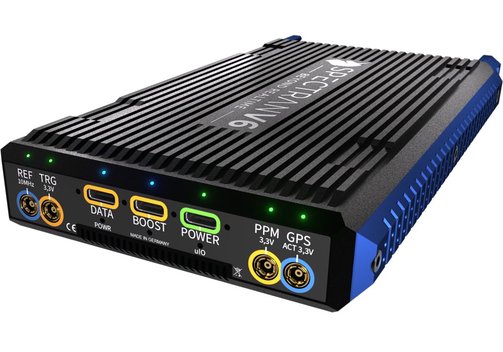

• Unique dual USB true I/Q streaming up to 784 MByte/s.
• Sweept 6 GHz in less than 5 ms (1 THz/s).
• Unlimited continuous true I/Q streaming up to 245 MHz.
• Dual receiver real-time bandwidth (Complex I/Q) up to 245 MHz.
• I/Q vector signal generator bandwidth up to 245 MHz (gapless streaming).
• POI up to 97 ns (FFT-based) and up to 10 ns (I/Q-based).
• Exceptional dynamic range through the use of a 16-bit ADC with 2 GS/s.
• Frequency range from 10 MHz to 6 or 8 GHz.
• Sample rate: 500 MS/s (16 bit dual 256 MS/s I/Q data).
• FPGA: 930 GMAC/s.
• FFT rate: 960 million FFT points/s (120 million FFTs/s).
• Full MATLAB support.
• Fully automatic pulse classification (decodes Wifi, BT, GSM, DECT, QPSK, QAM etc.).
• Stackable accessories.
• Lightweight and compact.
• Includes RTSA-Suite PRO software with regular updates.
• Made in Germany.

Model Overview
