Aaronia SPECTRAN-V6-MIL Outdoor Real-Time Spectrum Analyzer in Military Standard
Description
Accessories
Files/Downloads
Benefits of the Rugged SPECTRAN-V6-MIL up to 80, 120, 160, or 245 MHz
- Outdoor real-time spectrum analyzer and signal generator.
- Frequency range up to 8 GHz, real-time bandwidth up to 245 MHz.
- Certified according to MIL-STD-810G and IP65.

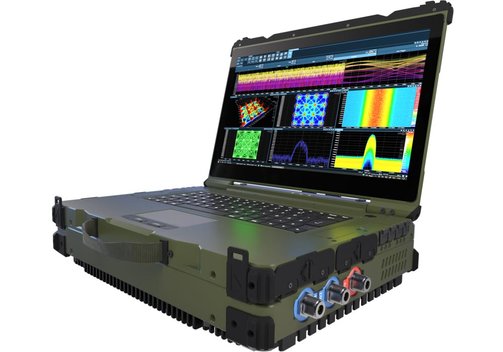

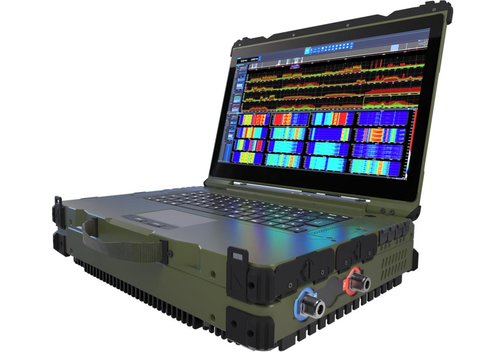

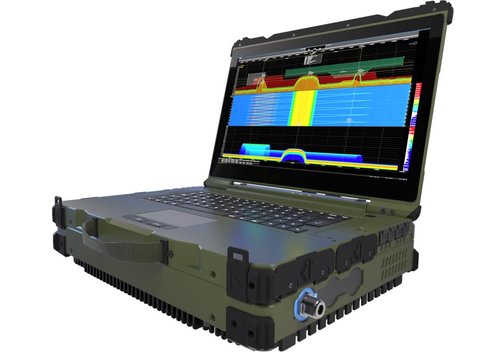

Aaronia SPECTRAN-V6-MIL Outdoor Real-Time Spectrum Analyzer/Laptop in Military Standard
Modelle Aaronia SPECTRAN-V6-MIL, SPECTRAN-V6-MIL-PRO, SPECTRAN-V6-MIL-EE im Laptop-Gehäuse

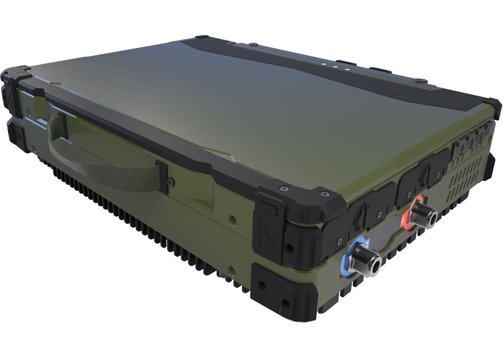

The Aaronia SPECTRA-V6-MIL is an outdoor real-time spectrum analyzer in military standard. The device in laptop design is predestined for processing and storing I/Q data. It offers all the advantages of an extremely rugged laptop in combination with our SPECTRAN-V6 real-time spectrum analyzer. Designed to withstand the most extreme conditions, it is independently tested and certified to MIL-STD-810G and IP65.
- Super-rugged outdoor spectrum analyzer (IP65, MIL-STD-810G, -20...+60°C).
- Real-time and sweep spectrum analyzer in one.
- Frequency range from 10 MHz to 8 GHz.
- Real-time bandwidth up to 245 MHz (I/Q).
- Sweep speed up to 1 THz/s (scans 6 GHz in less than 5 ms).
- FFT rate: 960 million FFT points/s (120 million FFTs/s).
- Perfect for counter-surveillance e.g. detecting bugs.
- POI 97 ns (FFT), 10 ns (I/Q).
- 1 TB SSD/up to 8 TB recording memory.
- Automatic triggers adjustable.
- Patented polyphase filter technology.
- Simultaneous monitoring of frequency bands (3G, 4G, 5G, WLAN, etc.).
- Sweeps 6 GHz in less than 5 ms (1 THz/s).
- Laptop with bright, sunlight-readable, glare-free widescreen LED-backlit display and Intel Xeon processor.
- RTSA Suite PRO software pre-installed. The software provides numerous tools for visualization and analysis of received or recorded data.
Options and Extensions
- 245 MHz (I/Q) real-time bandwidth.
- Frequency extension to 8 GHz.
- 5 ppb (0.005 ppm) OCXO time base.
- Internal preamplifier.
- GPS (external antenna included).
- Optional SSD hard disk expansions.
- Wide range of Aaronia antennas.

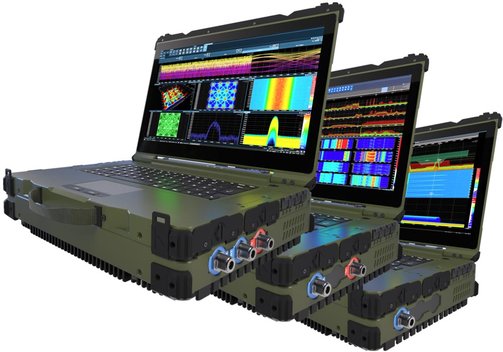

Model Overview
| Model | SPECTRAN-V6-MIL | SPECTRAN-V6-MIL-PRO | SPECTRAN-V6-MIL-EE (Enterprise) |
| 102/013 | 102/014 | 102/015 | |
| Spectrum analysator system | |||
| Connections | 1x Rx | 1x Rx, 1x Tx | 2x Rx, 1x Tx |
| Real-time bandwidth | 80 MHz Rx | 120 MHz Rx, 120 MHz Tx (optional 245 MHz) | 160 MHz Rx (optional 245 MHz), 120 MHz Tx (optional 245 MHz) |
| Sweep speed | 300 GHz/s | 440 GHz/s | 730/1100 GHz/s |
| Frequency range | 10 MHz...6/8 GHz | ||
| POI (with 245 MHz option) | 97 ns (FFT), 10 ns (direct-I/Q-based) | ||
| Max. power | Rx +23 dBm; Tx +20 dBm | ||
| DANL | -165 dBm/Hz | -168 dBm/Hz | -170 dBm/Hz |
| Amplitude accuracy | Typ. ±0.5 dB (compensated by FIR filter) | ||
| Time base | 0.5 ppm (5 ppb optional) | ||
| RBW (resolution bandwidth) | 62 mHz...200 MHz | ||
| Measurement units | Over 20 (e.g. dBm, dBµV, V/m, A/m, W/m², dBµV/m, W/cm²) | ||
| Detectors | Min, Max, AVG, Peak, QPeak | ||
| Attenuator | 50 dB/70 dB (0.5-dB steps) | ||
| Traces | Over 20 (e.g. ACT, AVG, MAX, MIN, QPEAK) | ||
| Measurement modes | True IQ or Power/Frequency Data | ||
| Trigger | Cursor, Measurement, Density, Trace | ||
| Converter | ADC dual 2 GS/s 16 bit; DAC 2 GS/s 14 bit | ||
| External reference input typ. | 10 MHz, 3.5 VRMS at 50 Ω (SMB connector) | ||
| Internal system | FPGA XC7A200T-2; DSP processing 930 GMACs, SDRAM 2 GB | ||
| RF connectors | N female 2x Rx, 1x Tx (version dependent) | ||
| Laptop | |||
| CPU | Intel Xeon E-2176M 2.7 GHz, 12 MB Intel Smart Cache, up to 4.4 GHz | ||
| RAM | 64 GB RAM | ||
| SSD recording storage | 1 TB (expandable) | 4 TB (expandable) | 8 TB (expandable) |
| Operating system | Windows 10 Pro | ||
| Display | 15.6"/39.6 cm full HD 1920x1080, sunlight readable, glare-free, with LED backlight (300 cd/m²); graphics card: Dedicated nVidia GTX 1050 graphics card with 4 GB | ||
| Power supply | 2x Li-Ion polymer batteries 10.8 V/6900 mAh; standard power supply 230 V, opt. vehicle adaptor; AC input: 100...240 V, 50...60 Hz; DC output: 19 V, 10.5 A max. | ||
| Keyboard | German or optional US layout | ||
| Connectors | 2x USB 3.1 Gen.2 (1x 1.5 A fast-charge), 1x microphone, 1x audio output, 1x line-in, 1x GLAN RJ45, 1x MIL DC-In, 1x VGA, 1x display port 1.2, 2x serial DB9 (COM 1-2) | ||
| Certifications | CE, FFC, WEE, Reach, IP65 (with open I/O ports), MIL-STD-810G | ||
| Environmental | Operating temperature -20...+60°C; storage temperature -40...+70°C; 95% rel. humidity, non-condensing | ||
| Dimensions (mm) | 392 x 300 x 43 mm (with rubber corners), 9.5 kg; housing made of milled, corrosion-resistant aluminum; color military green (NATO olive/RAL6031HR), black | ||
