Benefits of the SPECTRAN-V6-Command-Center High-End Analysis System up to 980 MHz
- Sweep speeds up to 4 THz/s and frequency range 10 MHz...6/8 GHz.
- Up to four internal RF receivers; real-time bandwidth up to 160, 490 or 980 MHz.
- Complete system with CPU, display, keyboard, huge memory.

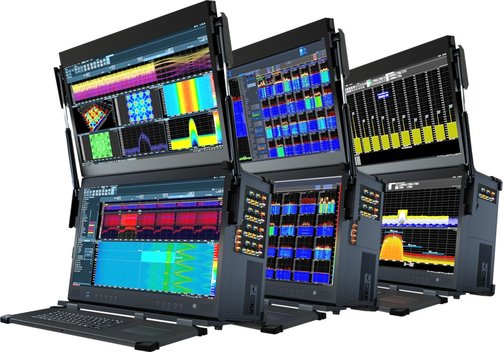

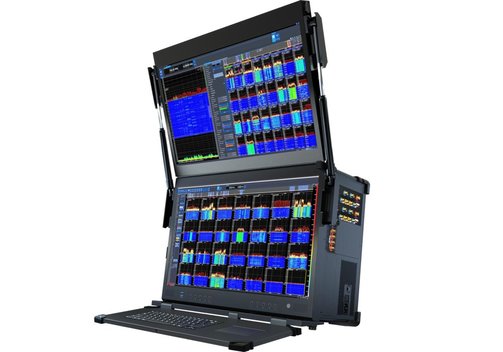

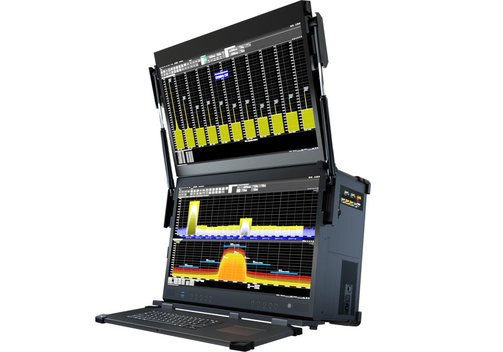

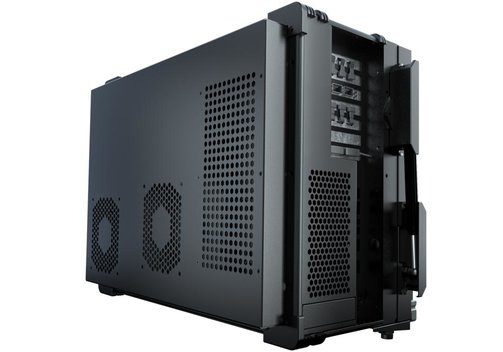

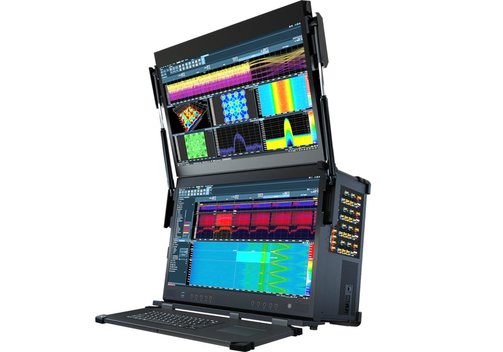

Aaronia SPECTRAN-V6-Command-Center Spectrum Analyzer Workstation
Models Aaronia PECTRAN-V6-CC, SPECTRAN-V6-CC-PRO, and SPECTRAN-V6-CC-EE/Enternprise
The Aaronia SPECTRAN-V6-Command-Center with one or two spectrum analyzers, generator, CPU system, integrated display, and keyboard forms an all-in-one solution for many RF applications. The real-time bandwidth (complex I/Q) extends up to 980 MHz. In the variant with two spectrum analyzers, these can be combined with each other. The Command Center is the first choice for wideband frequency monitoring and part of the Aaronia drone detection system.
- Frequency range 10 MHz to 6 GHz (optional 8 GHz).
- Up to 980 MHz I/Q real-time bandwidth.
- I/Q vector signal generator (up to 480 MHz).
- Sweep speed >4 THz/s.
- Sample rate up to 8x 2 GS/s, 16 bit I/Q data.
- FFT rate up to 3840 million FFT points/s.
- FFT based POI only 97 ns, I/Q based POI only 10 ns.
- RBW up to 1 mHz (0.001 Hz).
- Two 4K widescreen displays.
- Up to 120 TB HDD.
- Patented polyphase filter technology.
- Programmable automatic triggers.
- Simultaneous monitoring of frequency bands (3G, 4G, 5G, WLAN, etc.).
- Incl. RTSA-Suite PRO software with many options to view and analyze the received/recorded data.

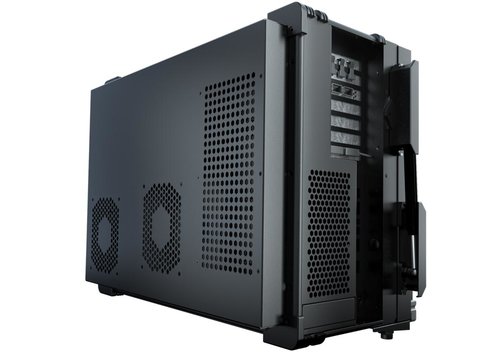

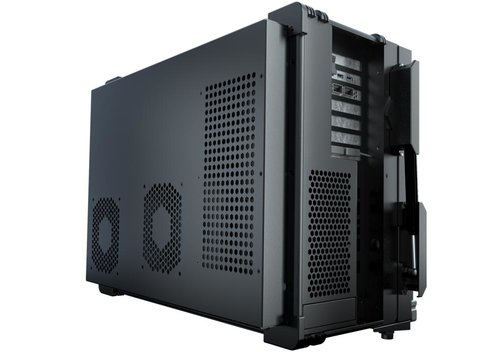

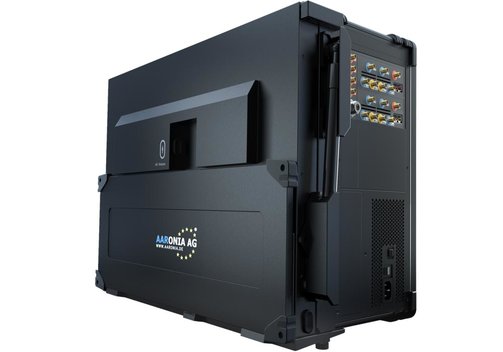

Model Overview
Model | SPECTRAN-V6-CC (Command-Center) | SPECTRAN-V6-CC-PRO (Command-Center-PRO) | SPECTRAN-V6-CC-EE (Command-Center-Enternprise) |
102/016 | 102/017 | 102/018 | |
Spectrum analyzer system | |||

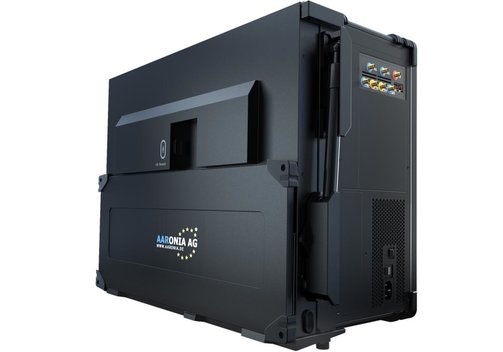

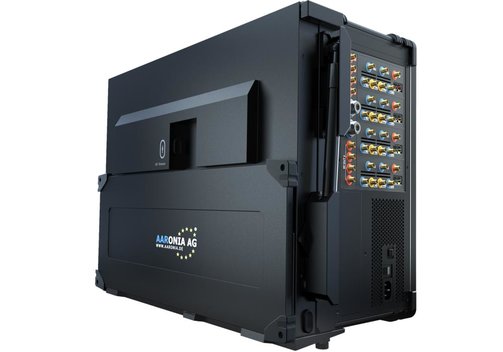

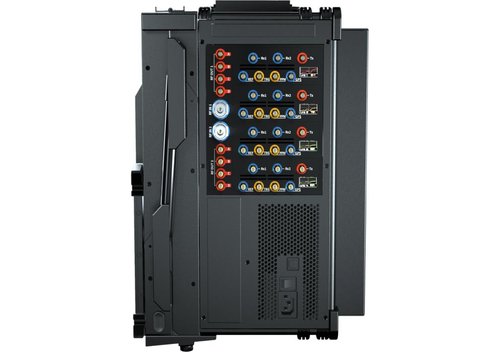

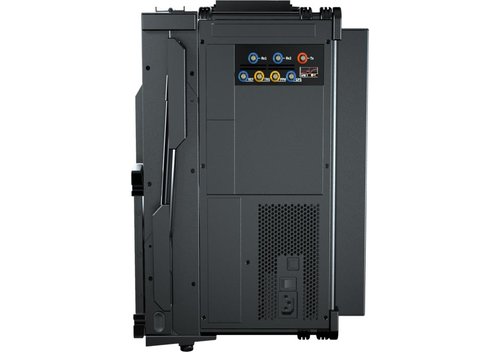

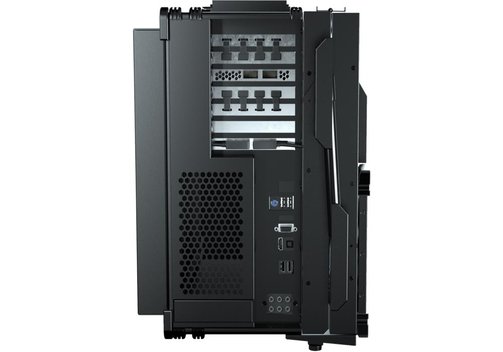

Connectors | 1x Rx (SMA) | 4x Rx, 2x Tx (SMA) | 8x Rx, 4x Tx (SMA) |
Real-time bandwidth | Rx 160 MHz | Rx 490 MHz; Tx 320 MHz (opional 490 MHz) | Rx 980 MHz; Tx 640 MHz (optional 980 MHz) |
Frequency range | 10 MHz...6/8 GHz | ||
POI | 97 ns (FFT-based), 10 ns (direct-I/Q-based) | ||
Max. power | Rx +23 dBm; Tx +20 dBm | ||
DANL (internal pre-amplifier On) | Typ. -170 dBm/Hz | ||
Amplitude accuracy | Typ. ±0.5 dB (compensated by FIR filter) | ||
Time base | 0.5 ppm (5 ppb with OCXO option) | ||
RBW (resolution-bandwidth) | 62 mHz to 57 MHz | ||
Measurement units | Over 20 (e.g. dBm, dBµV, V/m, A/m, W/m², dBµV/m, W/cm²) | ||
Detectors | Min, Max, AVG, Peak, QPeak | ||
Attenuator range | 50 dB/70 dB (0.5-dB steps) | ||
Traces | Over 20 (e.g. ACT, AVG, MAX, MIN, QPEAK) | ||
Measurement modes | True-IQ or Power/Frequency Data | ||
Trigger | Cursor, Measurement, Density | ||
Converters | ADC 1x 2 GS/s 16 bit; DAC 1x 2 GS/s 14 bit | ADC converter 4x 2 GS/s 16 bit; DAC 2x 2 GS/s 14 bit | ADC 8x 2 GS/s 16 bit; DAC 4x 2 GS/s 14 bit |
External reference input | Typ. 10 MHz, 3.5 VRMS in 50 Ω (SMB) | ||
Internal system | FPGA up to 4x XC7A200T-2 | ||
DSP 930 GMACs | DSP 1860 GMACs | DSP 3720 GMACs | |
FFT rate | 480 million | 1920 million | 3840 million |
PC system | |||
CPU | AMD Ryzen 9 5900X (12-core); (optional AMD Ryzen Threadripper 3960X (24-core) with multiple receivers; branded ATX mainboard | ||
RAM | 64 GB DDR4 | ||
HDD | 256 GB NVMe (OS), 4 TB (storage/optional SSD), optionally expandable up to 18 TB | ||
Operating system | Windows 10 PRO | ||
Display | 2x 4K (2x 3840x2160 pixels) sunlight readable, anti reflection tempered strengthen glass; Nvidia GTX 1660 Ti graphics card | ||
Keypad | 104-key industrial keyboard with integrated numeric keypad and touchpad | ||
Connections | 6x USB 3.1, 2x USB 2.0, 2x DVI, VGA, HDMI, power connector, LAN (1 Gbit/s) | ||
Environmental | Operating temperature 0...+50°C; storage temperature -20...+60°C; relative humidity 10...90% | ||
Dimensions (mm) | 620 x 270 x 400; 30 kg | ||
Power supply | 850 W, 100...240 V, 50...60 Hz; consumption typ. <250 W |
