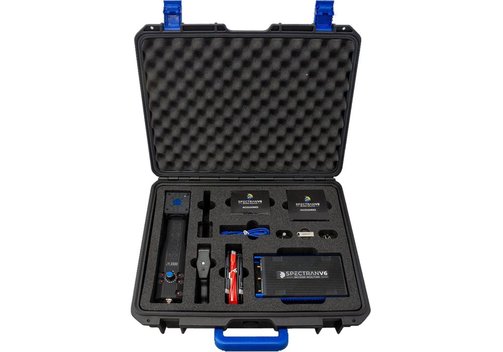

Aaronia Site Survey Bundles
The Aaronia Site Survey Bundles are portable site monitoring packages. They are specially designed for real-time spectrum surveillance on site. This allows you to either prove the availability of a desired frequency range, or to detect and locate interference.
Aaronia Site Survey Package 1 (104/008)
- Frequency range 10 MHz...3 GHz.
- Real-time bandwidth 80 MHz.
Aaronia Site Survey Package 2 (104/009)
- Frequency range 10 MHz...6 GHz.
- Real-time bandwidth 80 MHz.
Aaronia Site Survey Package 3 (104/010)
- Frequency range 10 MHz....8 GHz.
- Real-time bandwidth 80 MHz.

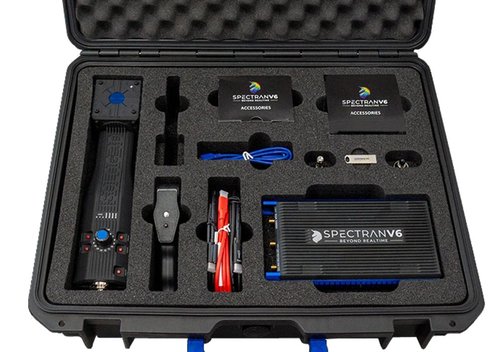

Model Overview and Contents
| Model | Contents | ||||
| Spectrum analyzer | Antenna(s), probes | Other accessories | Software | ||
| Site Survey Package 1 - 3 GHz | 104/008 | SPECTRAN-V6-RSA-250X incl. Option 0401 GPS | IsoLOG-3D-Mobile-9030-PRO with N/SMA adaptor, GPS antenna with 5-m-cable | Two power supplies, USB cable, mini tripod/pistol grip, 1 SMA Quick adaptor | RTSA-Suite-PRO basic software (on USB stick, also includes manuals) |
| Site Survey Package 2 - 6 GHz | 104/009 | SPECTRAN-V6-RSA-250 incl. Option 0401 GPS | |||
| Site Survey Package 3 - 8 GHz | 104/010 | SPECTRAN-V6-RSA-250X incl. Option 0401 GPS and Option 6080 frequency extension | |||
Information on product safety:
Manufacturer:
Aaronia AG, Kauthenbergstraße 14, 54597 Strickscheid/DEU
www.aaronia.com
