Eaton Sefelec1000M Insulation Resistance Meter/Megaohm Meter
Description
Files/Downloads
Benefits of the Sefelec1000M Megaohm-Meter
- Insulation resistance meter/megaohm meter up to 200 GΩ.
- Test voltage 20...1000 VDC.
- 7"/17.8 cm touch screen and multiple interfaces.
Eaton Sefelec1000M Insulation Resistance Meter/Megaohm Meter

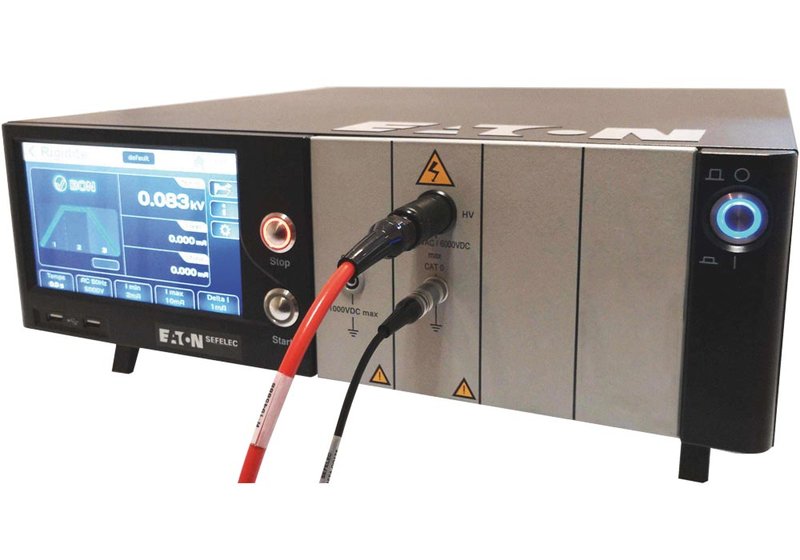

The Eaton Sefelec1000M is an insulation resistance meter based and controlled by ARM-Dual Core and DSP technologies providing the best stability and repeatability. The high accuracy and measurement speed are suitable for quality control or incoming inspection departments. The sequence mode makes the Eaton Sefelec1000M easy to use and integrate in a control or a test-bench. The devices have a 7"/17.8 cm dual touch screen TFT for simple and intuitive operations.
- Insulation measurement up to 200 GΩ at 1000 VDC and optional 2 TΩ.
- Measurement voltage adjustable by steps of 1 V from 20 to 1000 VDC.
- Programmable test ramps; ramp up, dwell, fall. Multiramp mode for 3 dwell tests.
- ARM-Dual core control and Nand 3D technologies inside for more accuracy, stability and repeatability.
- DSPs speeds up measurements and production tests.
- Large internal memory for configurations and test results.
- SIL2 double safety loop.
- Automatic measurement range selection.
- IEC 61010-2-034 full compliance, specific safety standard for insulation and dielectric strength meters.
- Sequence mode to combine several successive tests.
- 7"/17.8 cm TFT multi touch screen, 16 million colors.
- Standard interfaces Ethernet/LAN, RS232, USB, PLC, 0...10 V, CAN, optional GPIB (IEEE48.1/.2).
- CAN bus to drive extension modules (scanners).
- Dimensions (mm) 131 x 440 x 455. Mountable in 19" rack.
Model Overview
| Model | Sefelec56H | Sefelec506H | Sefelec56D | Sefelec506D | Sefelec56S | Sefelec506S | Sefelec32C | Sefelec1000M | Sefelec1500M |
| Function | Dielectric strength testers (hipot testers) | Dielectric meters (hipot and insulation testers) | Electric safety testers (hipot, insulation testers/megaohm meters, GND continuity testers) | Safety tester for GND continuity | Insulation resistance meter/megaohm meter | Insulation resistance meter/teraohm meter, picoammeter | |||
| Dielectric strength | 5 kVAC 50 VA and 6 kVDC | 5 kVAC 500 VA and 6 kVDC | 5 kVAC 50 VA and 6 kVDC | 5 kVAC 500 VA and 6 kVDC | 5 kVAC 50 VA and 6 kVDC | 5 kVAC 500 VA and 6 kVDC | - | - | - |
| Insulation measurement | - | Up to 2 TΩ at 1000 VDC; voltage adjustable 10...1000 VDC in steps of 1 V | Up to 2 TΩ at 1000 VDC; voltage adjustable 10...1000 VDC in steps of 1 V | - | Up to 200 GΩ at 1000 VDC (optional 2 TΩ); measurement voltage 20...1000 VDCadjustable in steps of 1 V | Up to 2000 TΩ at 1...1500 VDC; up to 100 kV measurement voltage with an external DC source | |||
| Picoammeter | - | - | - | - | - | 20.00 pA...20.00 mA (500 fA to 20 mA in 10 ranges/automatic or manual range selection) | |||
| GND continuity | - | - | Measuring current adjustable 5...32 AAC in steps of 0.5 A (5...50 AAC with option 50A); max. open circuit voltage 6 VAC (8 VAC with option 50A); measurement range 0...960 mΩ at 6 VAC, 0...1.500 Ω at 8 VAC | Measurung current adjustable 5...32 AAC in steps of 0.5 A (5...50 AAC with option 50A); max. open circxuit voltage 6 VAC (8 VAC with option 50A), measurement range 0.1...1000.0 mΩ; resolution 0.1 mΩ | - | - | |||
| Display | 7"/17.8 cm TFT multi touch screen, 16 million colors | ||||||||
| Interfaces | Ethernet/LAN, RS232, USB, PLC, 0...10 V, CAN, optional GPIB (IEEE48.1/.2); CAN bus to drive extension modules (scanners) | ||||||||
| Dimensions (mm) | 131 x 440 x 455; approx. 21 kg | 131 x 440 x 455; approx. 18 kg | 131 x 440 x 455; approx. 27 kg | 131 x 440 x 455; approx. 27 kg | 131 x 440 x 455; approx. 15 kg | 131 x 440 x 455; approx. 15 kg | |||
Information on product safety:
Manufacturer:
SEFELEC GmbH, Gewerbepark Oos-West, Flugstraße 7 (Halle 5), 76532 Baden-Baden/DEU
www.sefelec.de
