122/017 RTSA-Suite-PRO Block IQ Pulse Inspector
122/017 RTSA-Suite-PRO Block IQ Pulse Inspector

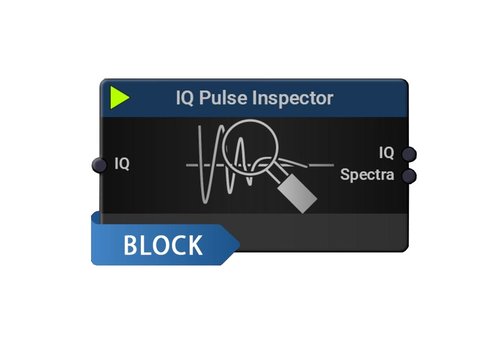

The "IQ Pulse Inspector block" offers a fully automatic digital signal burst/pulse classification and demodulation/decoder.

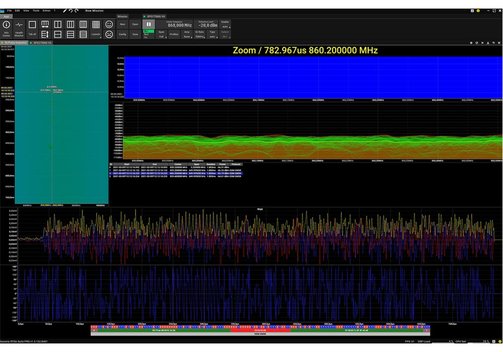

You can record IQ data and get this displayed within a waterfall view.
Within this view you can mark and select any signal of interest and get an automatic real-time classification and decoding. You can also run an automatic classification over the full recording which will give you a table of all found signals (which can go into the thousands).
You can then select any signal within the table for an automatic decoding.
The IQ Pulse Inspector supports the following decoder:
Auto, Auto Basic, ASK, PSK, FSK, GFSK, BPSK, DBPSK, QPSK, QPSK_C, DQPSK, P4DQPSK, 8DPSK, QAM16, QAM64, QAM256, QAM1024, Bluetooth LE (Low Energy), Bluetooth EDR 2M, Bluetooth EDR 3M, DECT, GSM, Wifi 802.11b, Wifi 802.11g (5MHz), Wifi 802.11g (10MHz), Wifi 802.11g (20MHz), Enhanced Shockburst.
Various IoT protocolls like Zigbee 802.15.4 and many more on customer request.
Note: If you already own a SPECTRAN-V6 device, a serial number is required to unlock the software license for your device, as the license is tied to the device.
When purchasing a new SPECTRAN-V6 device it is not necessary to quote the serial number.
