Benefits of the Rigol DG800 Pro 625 MS/s ARB Waveform Generators
- 1- or 2-channel multifunctional function-/ARB waveform generators.
- Frequency range up to 25 or 50 MHz.
- Touch screen and versatile interfaces: USB and LAN/Ethernet.

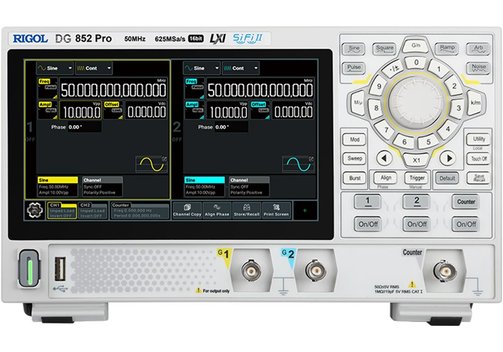

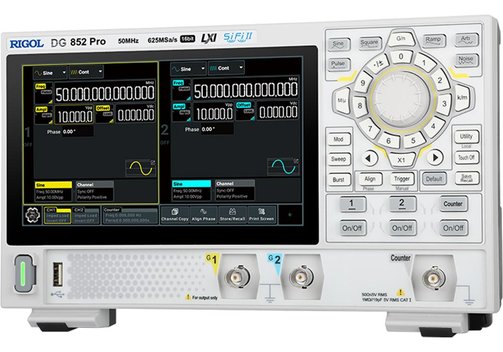

Rigol DG800 Pro 25/50 MHz Function/ARB Waveform Generator
Rigol DG821 Pro, DG822 Pro, DG852 Pro 1- and 2-Channel Signal-Generators
The Rigol DG800 Pro is a series of function/arbitrary waveform generators. The devices provide up to 625 MS/s sample rate and 2 Mpts/channel memory depth (standard). The DG800 Pro generators combine multiple functions including function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analog/digital modulator, and counter.
- Max. sample rate 625 MS/s.
- Max. output frequency 50 MHz.
- 16-bit vertical resolution
- Arbitrary waveform editing function with a max. ARB waveform length of 2 Mpts/channel (8 Mpts/channel optional).
- Built-in high-order harmonic generator (max. 20th order).
- Independent signal frequency measurement channel with a max. frequency of 500 MHz.
- USB and LAN interfaces for remote connection.
- Type-C power interface for powering the instrument with mobile power source, e.g. in the field.
- Standard Web Control function for easier remote cooperation.
Model Overview
| Model | DG821 Pro | DG822 Pro | DG852 Pro |
| Number of channels | 1 | 2 | 2 |
| Max. frequency | 25 MHz | 25 MHz | 50 MHz |
| Sample rate | 625 MS/s | 625 MS/s | 625 MS/s |
| Vertical resolution | 16 bit | 16 bit | 16 bit |
| Waveform memory | 2 Mpts/channel (standard), 8 Mpts/channel (optional) | 2 Mpts/channel (standard), 8 Mpts/channel (optional) | 2 Mpts/channel (standard), 8 Mpts/channel (optional) |
| Output modes | Continuous, modulation, sweep, burst, sequence | ||
| Standard waveform | Sine, square, ramp, pulse, noise, ARB, harmonic | ||
| Built-in ARB waveform | 148 types of waveforms, including sinc, exponential rise/fall, ECG, Gaussian, HaverSine, and Lorentz | ||
| Modulation types | AM, FM, PM, ASK, FSK, PSK, PWM, SUM | ||
| Sequence | Sample Rate 1 µS/s...312.5 MS/s, sequence length 32 pts/channel...2 Mpts/channel (8 Mpts/channels optional), no. of waveform entries 64, loop 0 to 256 | ||
| Frequency counter | Measurement function frequency, period, positive pulse width, negative pulse width, duty cycle | ||
| Display | 7"/17.8 cm touch screen, 1024x600 resolution | ||
| Power | USB Type-C interface, input voltage USB PD 15 V, 3 A, consumption 45 W (max.) | ||

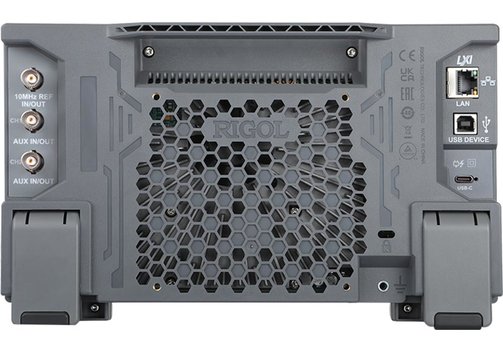

| Interfaces | USB host and device, LAN/Ethernet (10/100 BASE-T port, supporting LXI-C), support Web Control (input the IP address of the instrument into the Web browser to display the operation interface) | ||
| Dimension | 266 x 165 x 80; <1.78 kg | ||
| Upgrade options | DG800Pro-3RL: 8 Mpts/channel memory depth upgrade option. DG800Pro-DCH: Two-channel upgrade option (for DG821 Pro only) | ||
Included: Waveform generator DG 821, DG822, or 852 Pro, power adaptor, USB cable, 1x CB-BNC-BNC-MM-100 BNC cable.
