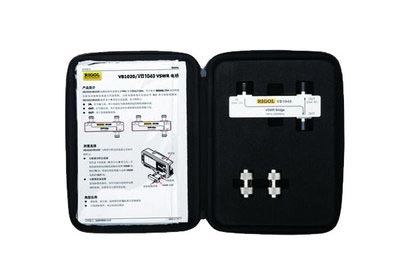

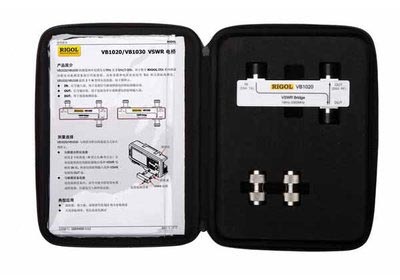

Rigol VB VSWR Bridge

Rigol VB VSWR Bridge
Scaled Prices
starting € 660,45
including VAT free shipping (Germany)
min Quantity
1 piece
Unit price
base price
Variants
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Files/Downloads

Rigol VSWR Bridges

Model Overview

  VB1032 (incl. option DSA800-VSWR) VB1040 (incl. option DSA800-VSWR) -
EOL/obsolete		 VB1080 (incl. option DSA800-VSWR)
Frequency range 1 MHz...3.2 GHz 800 MHz...4 GHz 2...8 GHz
More Data
  • Connectors: Type N (F), adaptor dual type N (M).
  • Impedance: 50 Ω.
  • Insertion loss IN to DUT: 5 dB.
  • Directivity: typ. 20 dB/min. 15 dB.
  • Max. power: +27 dBm (0.5 W).

For Rigol... DSA815-TG,
DSA832A-TG,
DSA875-TG,
DSA1030-TG,
DSA1030A-TG 		DSA832A-TG,
DSA875-TG,
DSA1030-TG,
DSA1030A-TG		 DSA875-TG
