Benefits of the Rigol DP822 Series 2-Channel 180-W Power Supplies
- 2-channel DC power supply, total power up to 180 W.
- 1st channel 20 V/5 A, 2nd channel 5 V/16 A.
- Model with monochrome or colour TFT. USB, LAN, RS232.

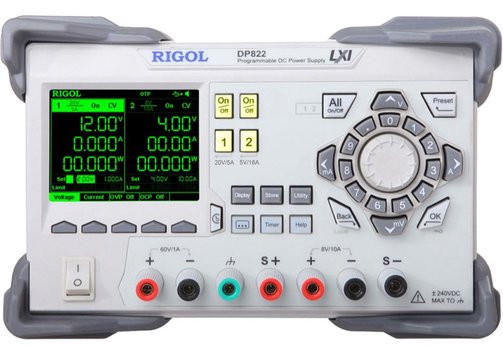

Rigol DP822(A) Programmable DC Power Supply, 2 Channel, 180 W
The Rigol DP822(A) are lowcost power supplies for professional applications with 2 channels. The devices provide a total power of up to 180 W. Can be controlled from a PC via USB, Ethernet, RS232, or optional GPIB.
- 2 channels, 180 W.
- Low ripple noise <350 µVRMS/2 mVpeak-peak.
- Excellent linear and load regulation rate.
- Fast transient response time: <50 µs.
- Standard OVP/OCP/OTP* protection functions.
- Standard timing functions.
- Integrated voltage, current, and power measurement and waveform display.
- Support output delay, analysis, monitoring, preset functions.
- Independent control for each channel.
- 3.5" (8.9 cm) colour TFT display. "Non-A" versions monochrome with4 selectable colours (orange, green, blue, white).
- Connectivity: USB Host & Device.

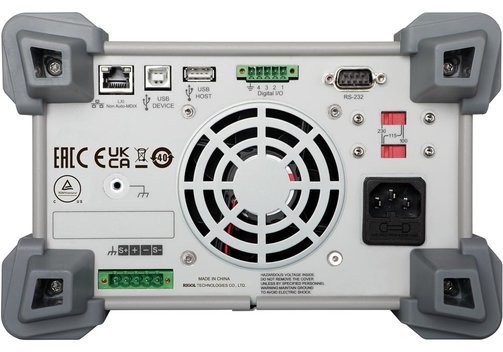

Standard for the models "A", optional for the other models: LAN, RS232, digital-I/O/trigger In/Out.
Optional USB-to-GPIB.
Model Overview
| Model | Channels | Power | Output specs | OVP/OCP | Connectivity, display |
| DP822A | 2 | 180 W | CH1: 0...20 V/0...5 A CH2: 0...5 V/0...16 A, remote-sense | CH1: 1 mV...22 V/1 mA...5.5 A CH2: 1 mV...5.5 V/1 mA...16.8 A | USB host & device, LAN, RS232, digital-I/O/trigger In/Out. Colour TFT |

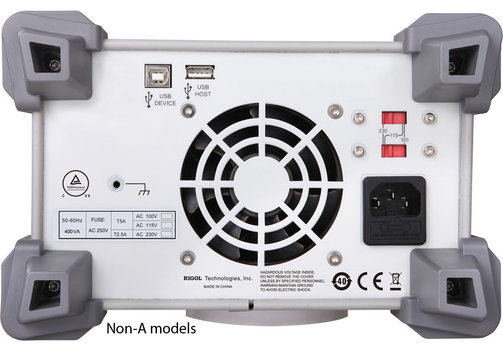

| DP822 | USB host & device, optional: LAN, RS232, digital-I/O/trigger In/Out. Monochrome TFT |
* * Overvoltage, overcurrent, overtemperature protection.
Included: Power supply DP 822, power cable, USB cable, software/user manual via download.
