Rigol DM3068 Digital Multimeter, 6½ Digits
Benefits of the Rigol DM3068 6½ Digit Digital Multimeter with 0.0035% Accuracy
- Versatile, reliable variety of measurement functions.
- Optimal value for money.
- 6½ digit resolution, up to 10 K readings/s.
Rigol DM3068 Digital Multimeter, 6½ Digits

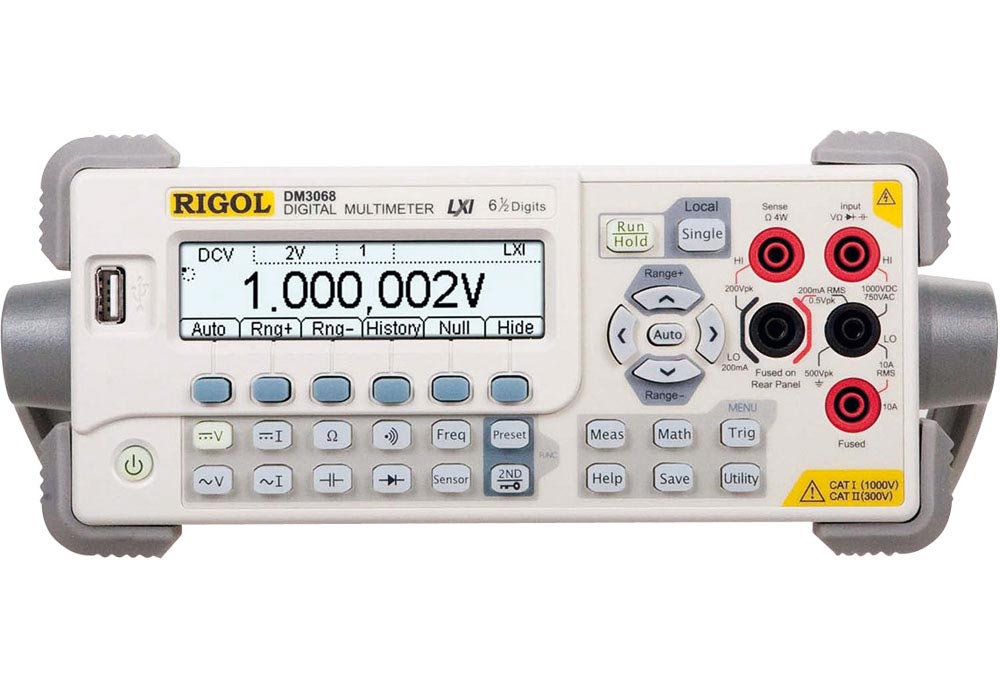

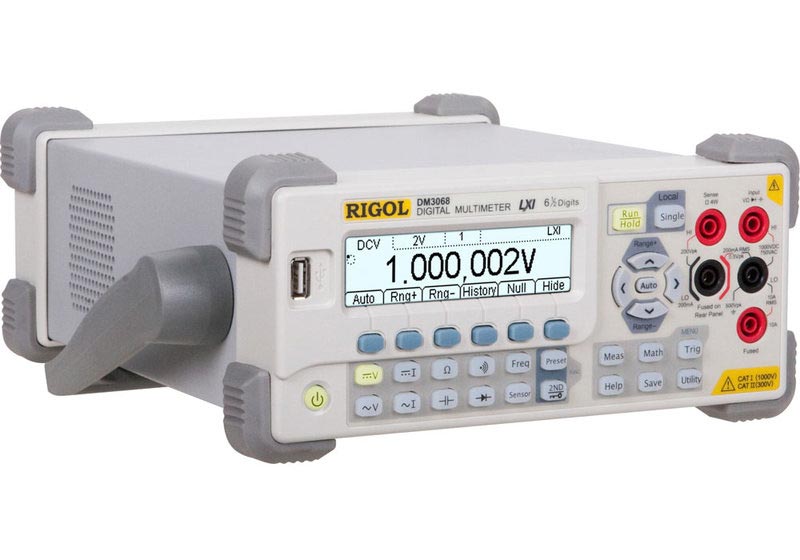

The DM3068 is a digital multimeter with 6½ digits reading resolution. The DM3068 has the capability to measure DCV, ACV, DCI, ACI, resistance (2-/4-wire), capacitance, diode test, frequency, and temperature. These DMMs are designed for simple and efficient bench top use, but include software options for datalogging and remote programming from almost any interface. They are great bench tools for high performance, reliable measurements, but also a new high speed data acquisition option for many measurement challenges.
- True, 6½ digit resolution.
- Up to 10 K readings per sec.
- Measurement functions for AC and DC volt, AC and DC current, true RMS, 2- and 4-wire resistance, capacity, continuity test, diod test, frequency measurement and periode maesurement.
- Mathematic operastions like min./max., mean, limit, dBm, dB.

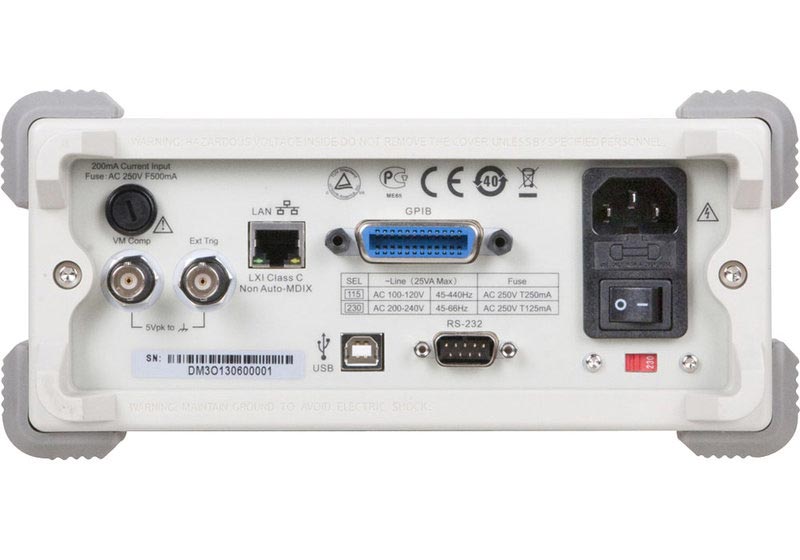

- Interfaces: USB host/device, Ethernet/LAN (LXI-C), RS232, GPIB (IEEE488, HP-IB).
- SCPI command set.
Model Overview
Model | Resolution | DC voltage accuracy (1 year) | DC voltage range | Max. readgs./s | Interfaces |
DM3068 | 6½ | 0.0035% | -1000 V...+1000 V | 10 K | RS232, USB Host/Device, LAN/LXI, GPIB |
Included: Multimeter DM 3068, power cable, USB cable, 2 leads (red/black), 2 alligator clips (red/black), spare fuses, quick start guide, software/user manual via free download.
Software: UltraSensor for DM3000 series (PC, max. 65 min recording time). UltraLogger for DM3000 series (PC). IVI driver. UltraSigma software.
