PROFiTEST M Measuring/Testing Device for Effectiveness of Protective Measures
Advantages of the PROFiTEST M Safety Testers for Stationary Electrical Installations
- Standard-compliant testing and legally binding logging according to ZVEH.
- Predefined test sequences for structured testing.
- Creation of installation structures from the installation to the measuring points.
PROFiTEST M Measuring/Testing Device for Effectiveness of Protective Measures

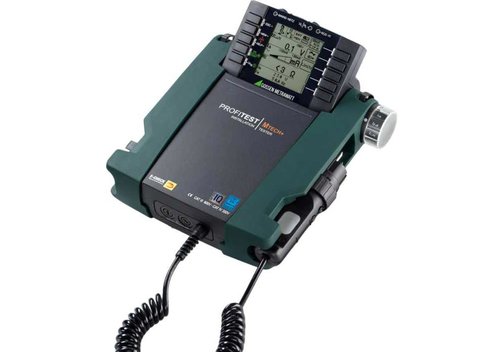

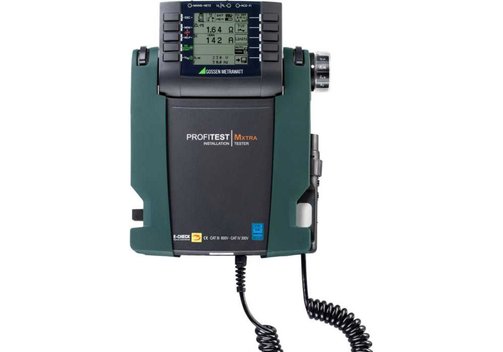

Versions PROFiTEST MXTRA (IQ) (M522P, M535M), MTECH+ (IQ) (M522R, M535L)
The GMC-I/Gossen Metrawatt PROFiTEST MXTRA (M522P) and PROFiTEST MTECH+ (M522R) are measuring and testing devices for testing the effectiveness of protective measures on fixed electrical installations after completion, repair, extension and on the occasion of a repeat test (DGUV Regulation 3). The devices offer all measuring and testing functions for testing the effectiveness of protective measures on fixed electrical installations - both with predefined and optionally with programmable test sequences which are necessary according to the test standards of IEC 60364-6 (DIN VDE 0100-600) as well as EN 50110-1 (DIN VDE 0105-100). Measurement category 300 V CAT IV/600 V CAT III. The versions PROFiTEST MXTRA IQ (M535M) and PROFiTEST MTECH+ IQ (M535L) include the additional software IZYTRONIQ Business Starter.
- Intuitive operation, standard-compliant testing, legally compliant logging according to ZVEH.
- All measurements without inconvenient reconnection of test leads.
- Internationally applicable thanks to language selection.
- Future-proof thanks to firmware updates.
- Service guarantee of 10 years.
- DAkkS certificate through GMC-I's own calibration center.
- Creation of plant structures from the plant to the measuring points - measure/save/generate protocol.
- Easy operation by rotary switch.
- Preconfigured and self-programmable test sequences for fast testing of electrical systems.
- Help function with connection diagrams.
- Measurement category 600 V CAT III/300 V CAT IV.
- Four-wire measurement technology - no compensation of test leads required.
- Memory concept up to 50,000 data records.
- Testing of all current all-current sensitive RCDs and many more.
- Operator protection by PE detection when used by finger contact.
Model Overview
| Model | PROFiTEST MXTRA (M522P) | PROFiTEST MXTRA IQ (M535M) | PROFiTEST MTECH+ (M522R) | PROFiTEST MTECH+ IQ (M535L) |
| Test | Tests the effectiveness of protective measures on fixed electrical installations in accordance with IEC 60364-6 (DIN VDE 0100-600), EN 50110-1 (DIN VDE 0105-100), EN 60204-1 (VDE 0113-1) and other country-specific standards. Testing of e-charging stations according to EN 61851-1 (DIN VDE 0122-1) as well as grounding measurements | Testing of the effectiveness of protective measures on fixed electrical installations according to IEC 60364-6 (DIN VDE 0100-600), EN 50110-1 (DIN VDE 0105-100) and other country-specific standards. Testing of e-charging stations according to EN 61851-1 (DIN VDE 0122-1) | ||
| Functions |
| |||
|
|
|
| |
| Interface | USB interface; connection of barcode scanner; push print function - sending of measured value after measurement is completed | |||
| Software IZYTRONIQ Business Starter | - | ✓ | - | ✓ |
Included: PROFiTEST MXTRA (M522P) oder PROFiTEST MTECH+ (M522R), PROFiTEST MXTRA IQ (M535M), or PROFiTEST MTECH+ IQ (M535L), 1x earthing contact plug insert (country-specific), 1x 2-pole measuring adapter and 1x cable for extension to 3-pole adapter (PRO-A3-II), 2x alligator clips, 1x neck strap, 1x set of rechargeable batteries (Z502H), 1x charger (Z502R), 1x quick reference guide, 1x safety information supplement, 1x DAkkS calibration certificate, 1x USB interface cable, M522R: 1x Software ETC as download; PROFiTEST MXTRA IQ (M535M), PROFiTEST MTECH+ IQ (M535L): 1x software IZYTRONIQ Business Starter.
Individual Devices an Bundles
| Model | Ordering Code | Replaces | Description |
| PROFiTEST MXTRA | ▸M522P | M520P | Measuring and testing device for testing the effectiveness of protective measures on fixed electrical installations after completion, repair, extension and on the occasion of a repeat test (DGUV regulation 3) |
| PROFiTEST MTECH+ | ▸M522R | M520R | |
| PROFiTEST MTECH+ IQ | ▸M535L | M535B | |
| PROFiTEST MXTRA IQ | ▸M535M | M535D | |
| Starterpaket TECH+ IQ | ▸M536N | M536A | Measuring and test equipment set for testing the effectiveness of protective measures on fixed electrical installations after completion, repair, extension and on the occasion of a repeat test (DGUV Regulation 3) |
| Starterpaket XTRA IQ | ▸M536K | M536C | |
| Meisterpaket XTRA IQ | ▸M536L | M536D | |
| MEDpaket XTRA IQ | ▸M536T | M536E | Set of measuring and testing devices for testing protective measures in medical electrical systems according to IEC 60364-6 / DIN VDE 0100-600 / DIN VDE 0105-100 |
| Profipaket XTRA IQ | ▸M536M | M536F | Measuring and test equipment set for testing the effectiveness of protective measures on fixed electrical installations after completion, repair, extension and on the occasion of a repeat test (DGUV regulation 3) |
| Meisterpaket TECH+ IQ | ▸M536P | M536G | |
| PROFiTEST MTECH+ IQ E-Mobility-Paket | ▸M536R | M536H | Installation tester set for testing stationary electrical installations, in particular wallboxes, charging columns and charging stations |
| PROFiTEST MTECH+IQ EV Basic Paket | ▸M536S | M536J |
