Aaronia PBS RF/Near-Field Probe Set

Benefits of the PBS RF Probes for Field Strength and EMC Measurements

• Extremely linear near-field probes for measuring H- and E-fields.
• Integrated electrostatic shield eliminates common-mode pickup.
• With signal generator: also for field generation.

Aaronia PBS RF/Near-Field Probe Set

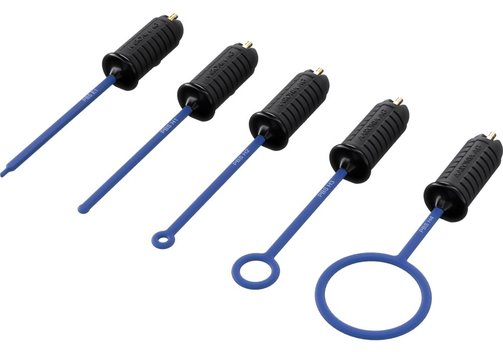

Aaronia PBS1 and PBS2 are sets of five RF/near-field probes for EMC applications with spectrum analyzers, oscilloscopes or test receivers. They allow easy localization and measurement of interference sources in the range DC (1 Hz) to 9 GHz eg. in electronic assemblies.

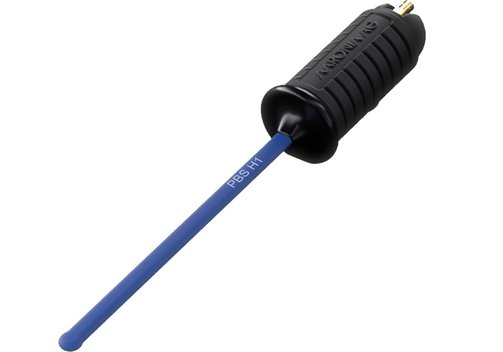

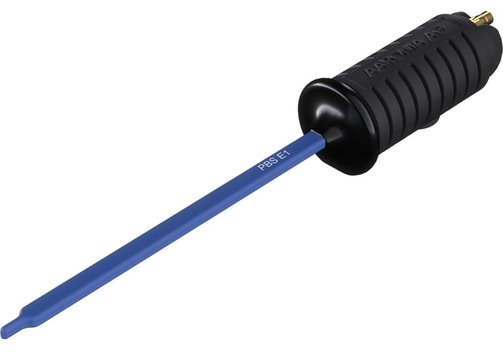

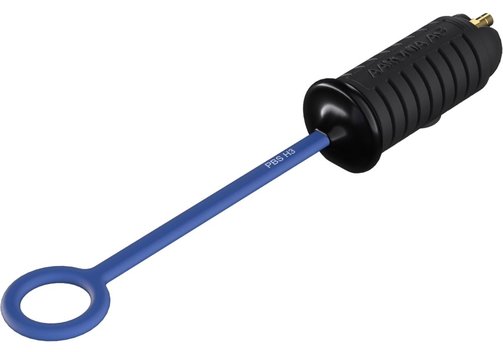

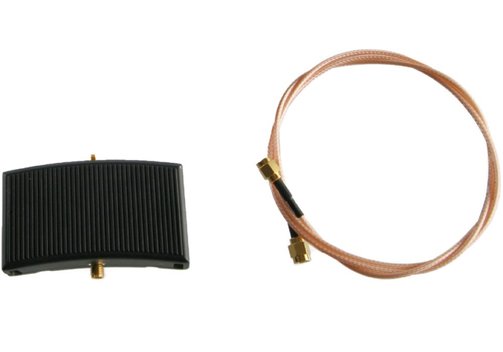

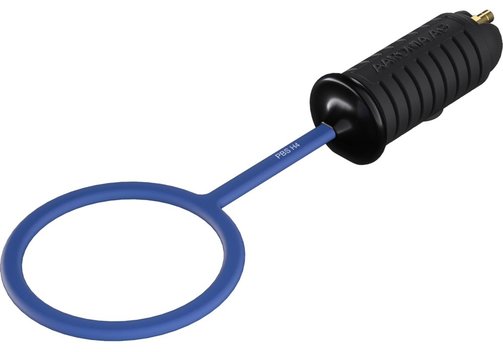

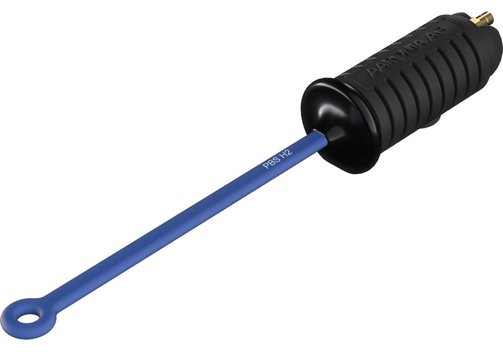

• 5 different near-field probes for measuring H- and E-fields, additional set with preamplifier.
• Passive or active versions.
• Covered with an insulating layer for safe measurements.
• Very handy design; very small size, perfect for accurate location of interference sources.
• Rubber coated handle.
• Integrated electrostatic shield eliminates common-mode pickup.
• Can be driven by a signal source to generate fields for electromagnetic susceptibility testing.
• High accuracy as gain increases very linearly with frequency.
• Typical standard calibration data included.
• High precision, therefore suitable for field strength and EMC measurements.
• Tripod connection included for perfect adjustment and reproducibility.
• Application areas: Traction power, overhead lines and cables, transformers, power supplies and harmonics, energy saving light bulbs, switching power supplies, TFT, LCD monitors and TVs, 135-kHz RFID, DSL, ADSL, VDSL and many more.

Model Overview
