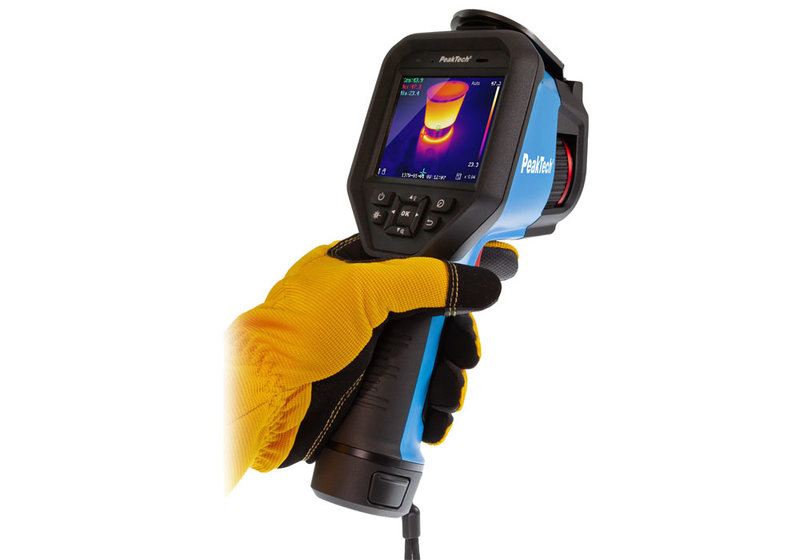

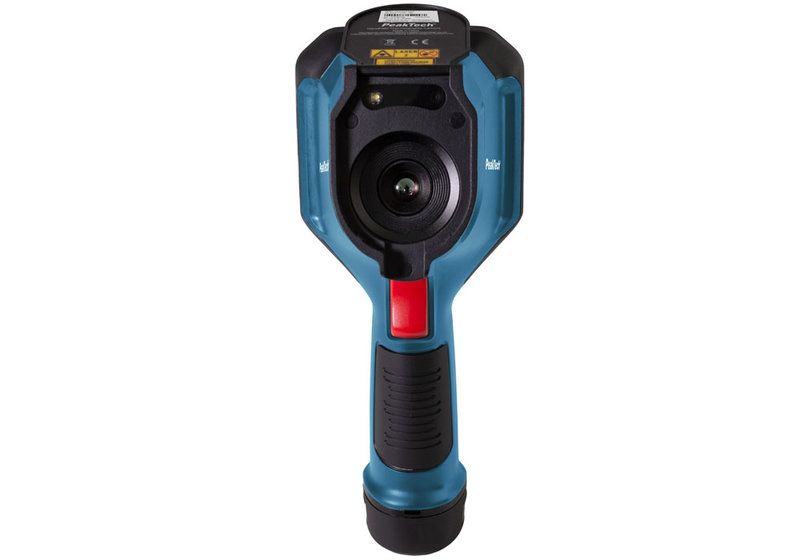

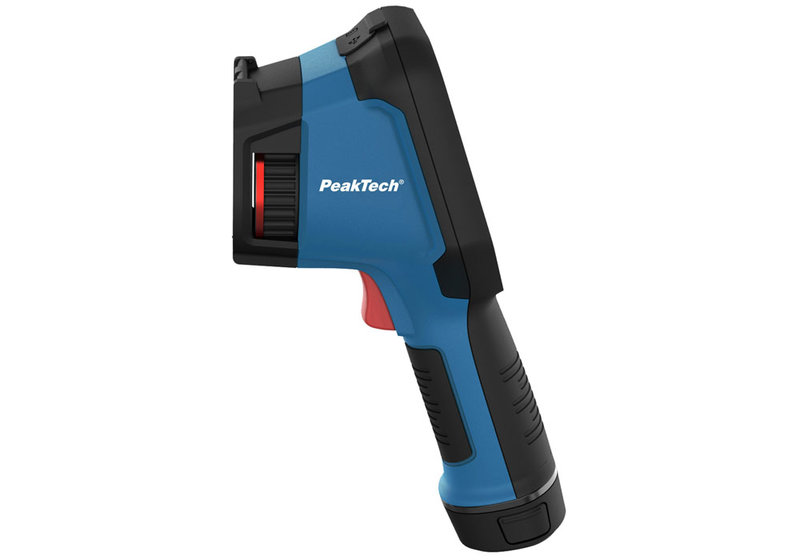

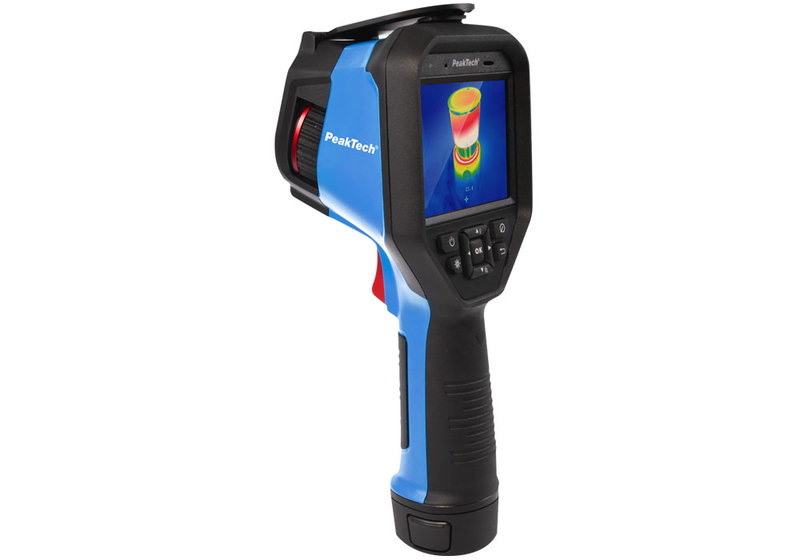

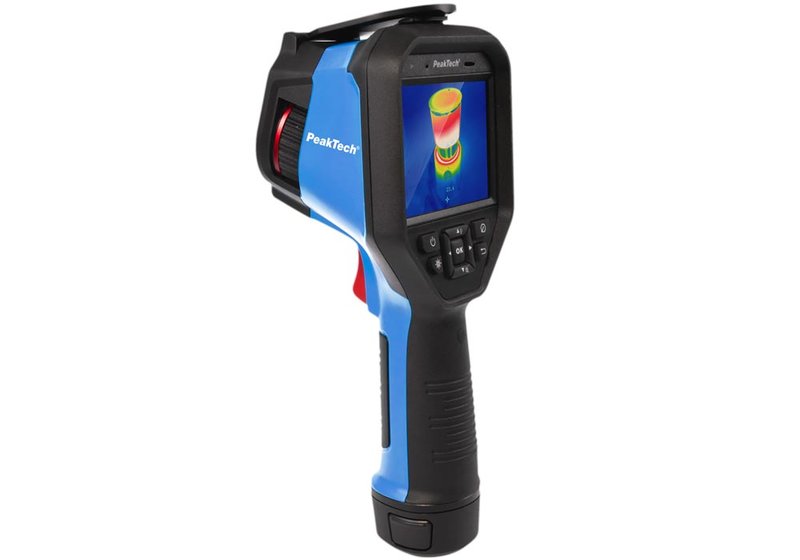

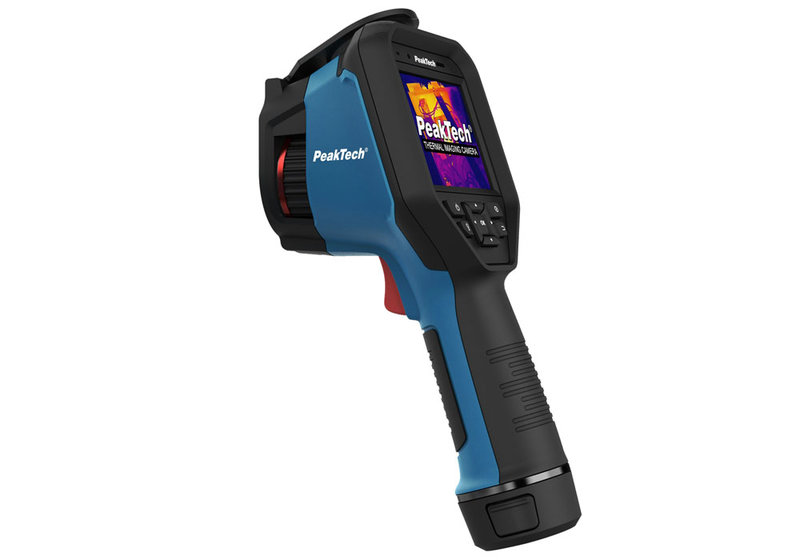

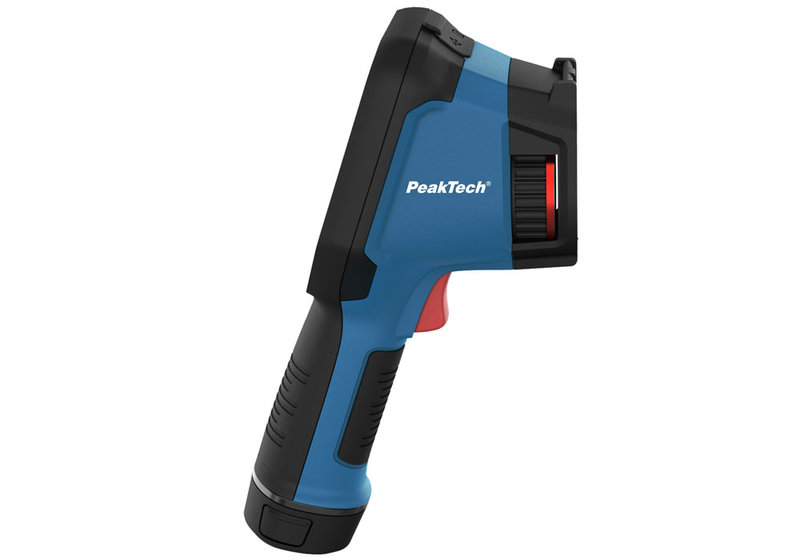

PeakTech P5620 Thermal Imaging Camera 384x288 Pixels, -20...550°C, USB/Wifi/Bluetooth
EOL/this product is obsolete and not available anymore from the manufacturer.
Benefits of the P5620 Infrared Thermal Imaging Camera with USB, Wi-Fi, Bluetooth, Touchscreen
- Infrared picture resolution 384 x 288.
- Temperature range -20...550°C.
- Picture storage on micro SD card up to 64 GB. Touchscreen.
PeakTech P5620 IR Thermal Imaging Camera 384 x 288 Pixels, -20...550°C, USB/Wifi/Bluetooth

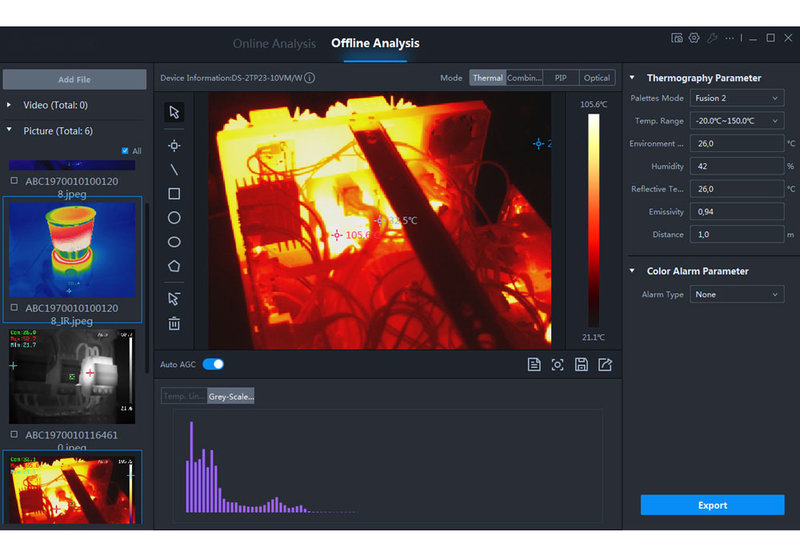

The PeakTech P5620 is a versatile thermal imaging camera with a resolution of 384 x 288 thermal pixels. In addition to the pure thermal image display, this thermo imaging camera also offers a PIP (picture-in-picture) display, a real image camera or a fusion function in which the contours of the real image recording are combined with the thermal image in order to ensure an even better display. All image modes mentioned can also be used for video recording, which also enables audio recordings for the video. All thermal images can be opened and evaluated using the software included, with subsequent changes, e.g. can be done on the pallet selection.
- Latest IR thermal imaging camera technics.

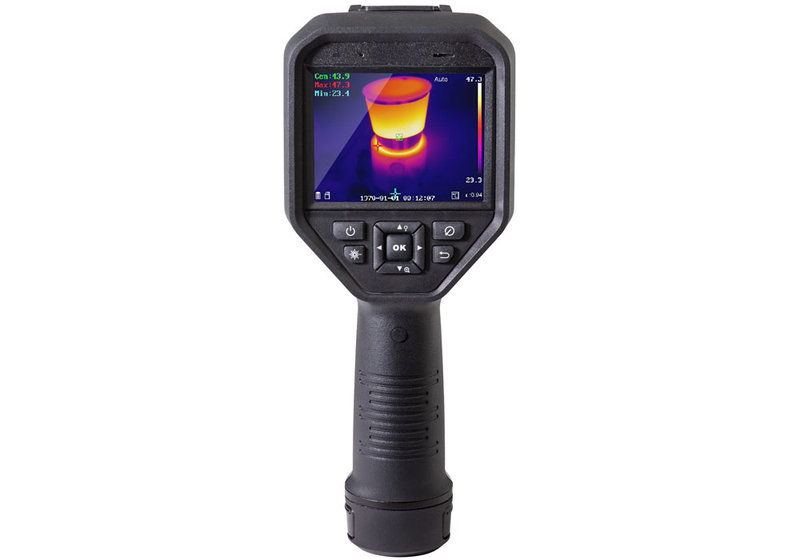

- 3.5"/8.9 cm LCD color display and graphical menu navigation.
- Thermal image resolution of 384 x 288 pixels.
- Temperature range -20...550°C (-4...1022°F).
- 3.5"/8.9 cm touchscreen and graphic menu navigation.
- High quality thermal image sensor with high temperature sensitivity.
- Fast thermal imaging with 25 Hz.
- Seven color palettes (Iron, Rainbow, White, Black, etc...).
- Photo and video recordings with audio commentary.
- WiFi, USB and Bluetooth interfaces.
- IP54 protected against dust and splash water.
Model Overview
| Model | ▸P5615 | ▸P5620 |
| Thermal resolution | 160 x 120 pixels | 384 x 288 pixels |
| Temperature range | -20...550°C/-4...1022°F; 0.1° resolution | -20...550°C/-4...1022°F; 0.1° resolution |
| Accuracy | ±2% or ±2°C | ±2% or ±2°C |
| Display | 2.4"/6.1 cm colour TFT | 3.5"/8.9 cm colour TFT |
| Thermal sensivity | <40 mK | <40 mK |
| Wave length | 37.2° x 50° | 37.2° x 28.5° |
| Field of view (FOV) | 8...14 µm | 17 µm; IFOV 1.7 mrad |
| Emissivity | 0.01...1.0 | 0.01...1.0 |
| Image frequency | 25 Hz | 25 Hz |
| Storage internal | Micro SD up to 8 GB | Micro SD up to 64 GB |
| Data interface | USB | USB, WiFi, Bluetooth |
| Operation voltage | 3350 mAh/3.6 V Li-Ion battery | 5000 mAh/3.7 V battery |
| Dimensions (mm) | 59 x 196 x 78; approx 350 g | 100 x 244 x 104; approx. 660 g |

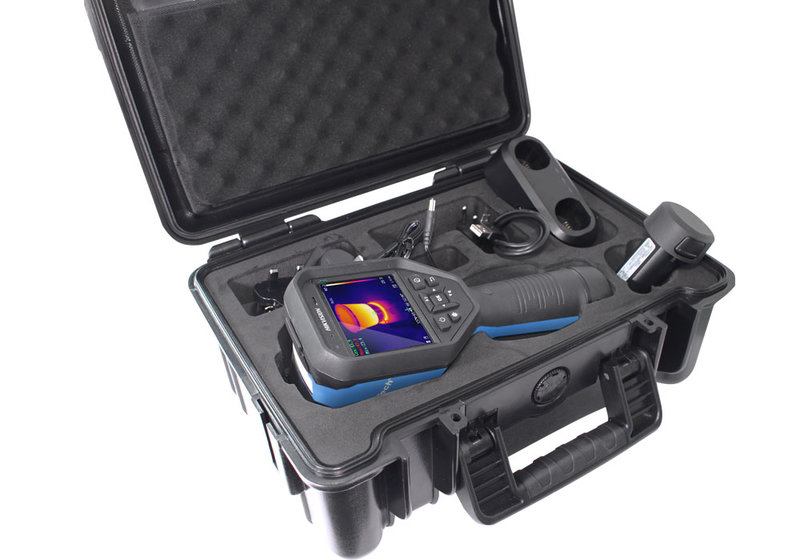

Included: Thermal imager P 5620, hard case, 2x Li-Po battery, charger, carrying strap, connection cable, software and instruction.
