Aaronia OmniLOG Series Omnidirectional Wideband Antennas 300MHz to 8GHz
Description
Files/Downloads
Benefits of the OmniLOG Antennas for Radial Isotropic Measurements up to 8 GHz
- Ideal for omnidirectional measurements with spectrum analyzers.
- SMA connector with heavy-duty 90° knuckle base.
- Very compact and lightweight design.

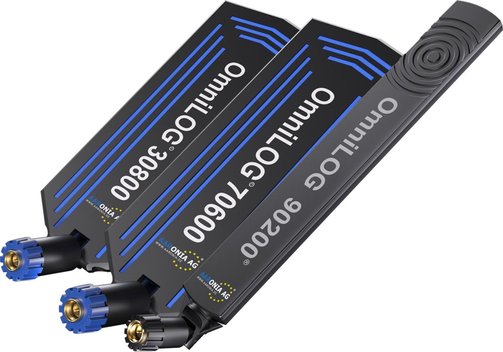

Aaronia OmniLOG Series Omnidirectional Wideband Antennas 300 MHz to 8 GHz
The Aaronia OmniLog series offers excellent and cost-effective broadband antennas for radial isotropic measurements from 300 MHz to 8 GHz. This means they cover most RF sources such as LTE, GSM, UMTS, WLAN, etc. They are small and lightweight and suitable for laboratory and outdoor applications. Includes 90° knuckle base with SMA connector as well as calibration data./p>
Model Overview
| Model | Dimensions (mm) | Design | RF connector | Frequency range | Tech. specifications | |

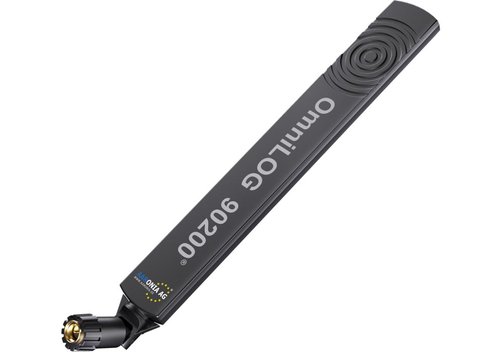

| OmniLOG-90200 | 202/001 | 210 x 20; 70 g | Omnidirectional | SMA male, nom. impedance 50 Ω | 700 MHz...2.5 GHz | VSWR typ. <3:1; temperature range -20...+70°C; shock: 40 G at 10 ms; temperature shokc -20.+70°C, 10 cycles |

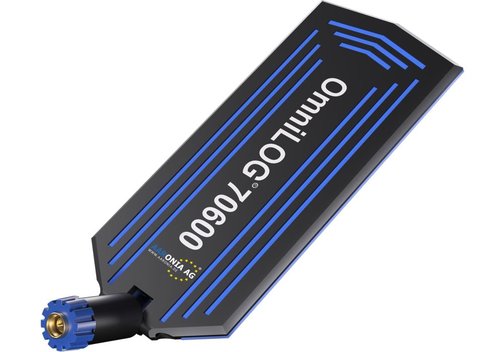

| OmniLOG-70600 | 202/002 | 173 x 62 x 9; 54 g | Omnidirectional | SMA male, nom. impedance 50 Ω | 680 MHz...6 GHz | VSWR typ. <3:1; max. input power 5 W; temperature range -40...+85°C; rel. humidity 0...95%; polarisation linear |
| OmniLOG-30800 | 202/003 | 173 x 62 x 9; 54 g | Omnidirectional | SMA male, nom. impedance 50 Ω | 300 MHz...8 GHz | VSWR typ. <3:1, max. input power 5 W; temperature range -40...+85°C; rel. humidity 0...95%; polarisation linear |
Information on product safety:
Manufacturer:
Aaronia AG, Kauthenbergstraße 14, 54597 Strickscheid/DEU
www.aaronia.com
