Benefits of the OmniLOG-PRO Antennas for Radial Isotropic Measurements up to 18 GHz

Antennas for omnidirectional measurements with spectrum analyzers.
Magnetic base or mounting bracket included.
Handy, compact design.

Aaronia OmniLOG-PRO and OmniLOG-PRO-H Series Omnidirectional Wideband Antennas 150 MHz to 18 GHz

Aaronia OmniLOG-PRO series antennas are the perfect choice for omnidirectional measurements with spectrum analyzers. The series consists of ultra-broadband and cost-effective receive antennas (1 W CW input power) and high-power transmit and receive antennas (100 W CW input power, "H" series) as an all-in-one antenna for site survey and countermeasures. Magnetic base or mounting bracket is included, also calibration data.

Model Overview

Model		Dimensions (mm)	Design	Gain	RF connector		Frequency range	Tech. specifications

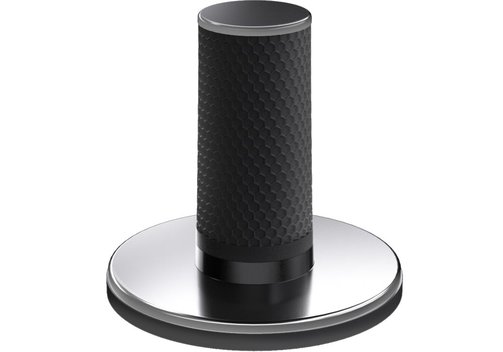

OmniLOG-PRO-1030	202/004	Ø84 x 96 (incl. magnetic base); 600 g	Radial isotrop	2 dBi	SMA male	nom. impedanz 50 Ω	150 MHz...3 GHz (usable from 80 MHz)	Polarisation vertical, linear; VSWR typ. <2.5:1; max. input power 1 W; temperature range -40...+70°C; rel. humidity 0...95%

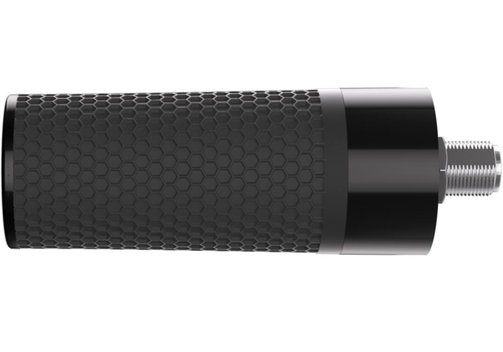

OmniLOG-PRO-1030-N	202/012	Ø36 x 11 (excl. mounting bracket); 255 g	Radial isotrop	5 dBi	N female	nom. impedanz 50 Ω	150 MHz...3 GHz (usable from 80 MHz)
OmniLOG-PRO-1060	202/005	Ø84 x 96 (incl. magnetic base); 600 g	Radial isotrop	2 dBi	SMA male	nom. impedance 50 Ω	150 MHz...6 GHz (usable from 80 MHz)	Polarisation vertical, linear; VSWR typ. <2.5:1; max. input power 1 W; temperature range -40...+70°C; rel. humidity 0...95%
OmniLOG-PRO-1060-N	202/013	Ø36 x 11 (excl. mounting bracket); 255 g	Radial isotrop	5 dBi	N female	nom. impedance 50 Ω	150 MHz...6 GHz (usable from 80 MHz)
OmniLOG-PRO-10100	202/006	Ø84 x 96 (incl. magnetic base); 600 g	Radial isotrop	2 dBi	SMA male	nom. impedance 50 Ω	150 MHz...10 GHz (usable from 80 MHz)	Polarisation vertical, linear; VSWR typ. <2.5:1; max. input power 1 W; temperature range -40...+70°C; rel. humidity 0...95%
OmniLOG-PRO-10100-N	202/014	Ø36 x 11 (excl. mounting bracket); 255 g	Radial isotrop	5 dBi	N female	nom. impedance 50 Ω	150 MHz...10 GHz (usable from 80 MHz)
OmniLOG-PRO-10200	202/007	Ø84 x 96 (incl. magnetic base); 600 g	Radial isotrop	2 dBi	SMA male	nom. impedance 50 Ω	150 MHz...18 GHz (usable from 80 MHz bis 20 GHz)	Polarisation vertical, linear; VSWR typ. <2.5:1; max. input power 1 W; temperature range -40...+70°C; rel. humidity 0...95%
OmniLOG-PRO-10200-N	202/015	Ø36 x 11 (excl. mounting bracket); 255 g	Radial isotrop	5 dBi	N female	nom. impedance 50 Ω	150 MHz...18 GHz (usable from 80 MHz bis 20 GHz)
OmniLOG-PRO-7030-H	202/008	Ø84 x 96 (incl. magnetic base); 600 g	Radial isotrop	2 dBi	SMA male	nom. impedance 50 Ω	700 MHz...3 GHz	Polarisation vertical, linear; VSWR typ. <2.5:1; max. input power 100 W; temperature range -40...+70°C; rel. humidity 0...95%
OmniLOG-PRO-7030-H-N	202/016	Ø36 x 11 (excl. mounting bracket); 255 g	Radial isotrop	5 dBi	N female	nom. impedance 50 Ω	700 MHz...3 GHz
OmniLOG-PRO-7060-H	202/009	Ø84 x 96 (incl. magnetic base); 600 g	Radial isotrop	2 dBi	SMA male	nom. impedance 50 Ω	700 MHz...6 GHz	Polarisation vertical, linear; VSWR typ. <2.5:1; max. input power 100 W; temperature range -40...+70°C; rel. humidity 0...95%
OmniLOG-PRO-7060-H-N	202/017	Ø36 x 11 (excl. mounting bracket); 255 g	Radial isotrop	5 dBi	N female	nom. impedance 50 Ω	700 MHz...6 GHz
OmniLOG-PRO-70100-H	202/010	Ø84 x 96 (incl. magnetic base); 600 g	Radial isotrop	2 dBi	SMA male	nom. impedance 50 Ω	700 MHz...10 GHz	Polarisation vertical, linear; VSWR typ. <2.5:1; max. input power 100 W; temperature range -40...+70°C; rel. humidity 0...95%
OmniLOG-PRO-70100-H-N	202/018	Ø36 x 11 (excl. mounting bracket); 255 g	Radial isotrop	5 dBi	N female	nom. impedance 50 Ω	700 MHz...10 GHz
OmniLOG-PRO-70180-H	202/011	Ø84 x 96 (incl. magnetic base); 600 g	Radial isotrop	2 dBi	SMA male	nom. impedance 50 Ω	700 MHz...18 GHz	Polarisation vertical, linear; VSWR typ. <2.5:1; max. input power 100 W; temperature range -40...+70°C; rel. humidity 0...95%
OmniLOG-PRO-70180-H-N	202/019	Ø36 x 11 (excl. mounting bracket); 255 g	Radial isotrop	5 dBi	N female	nom. impedance 50 Ω	700 MHz...18 GHz

Datasheet_Aaronia_OmniLOG-PRO-H_en.pdf

Datasheet_Aaronia_OmniLOG-PRO_en.pdf
