Aaronia MDF and MDF-X Series Broadband Magnetic Field Tracking Antennas
Description
Files/Downloads
Benefits of the MDF Series Magnetic Field Antennas for Signal Tracking and Field Strength Measurements
- Suitable for field strength and EMC measurements in the laboratory and outdoor.
- High directionality, optimal for signal direction finding.
- Max. frequency range 9 kHz to 400 MHz.
Aaronia MDF and MDF-X Series Broadband Magnetic Field Tracking Antennas

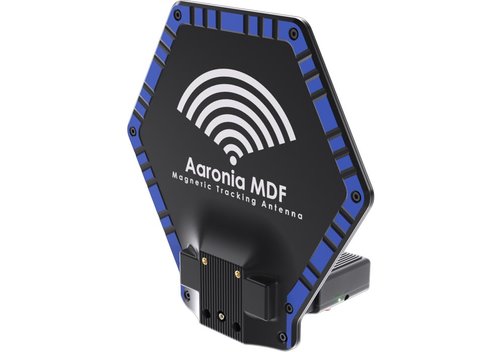

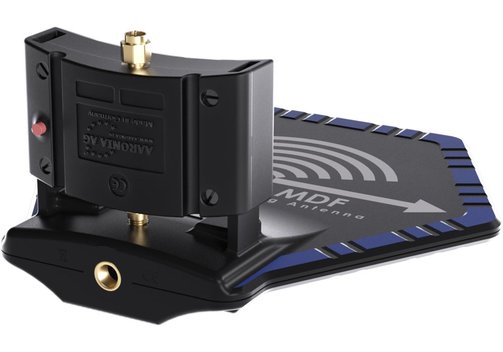

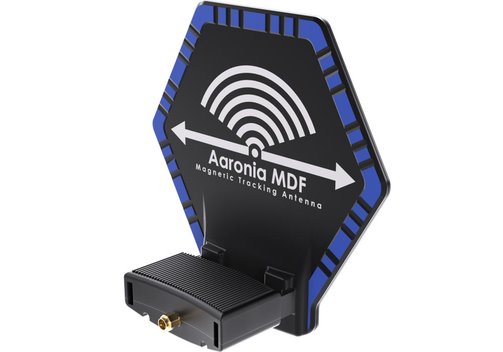

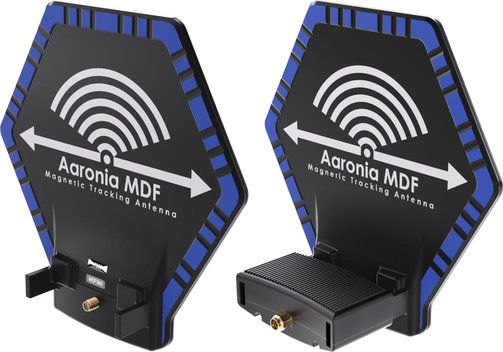

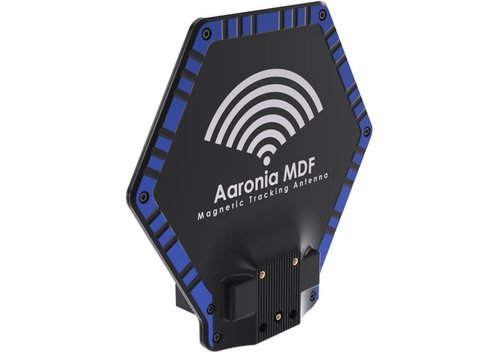

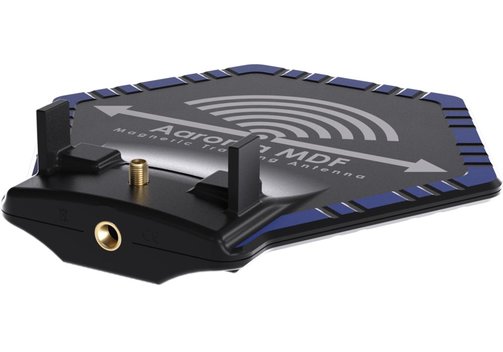

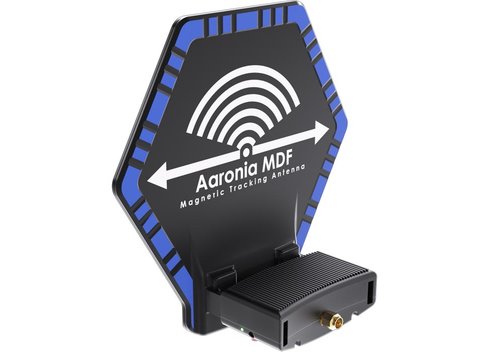

The Aaronia MDF series are extremely broadband magnetic field DF antennas that can be used for field strength measurements in addition to signal direction finding. The MDF-X series are active variants. Due to their high precision, these antennas are the ideal solution for field strength and EMC measurements. They offer high directionality and are therefore ideally suited for signal direction finding. With their robust and compact design, the antennas are suitable for both laboratory and outdoor measurements.
- Wide frequency range up to 9 kHz...400 MHz.
- High conversion accuracy allows precise field strength measurements.
- Perfect for magnetic field direction finding in combination with spectrum analyzers.

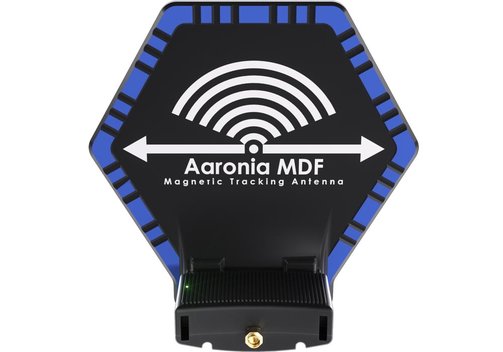

- MDF-X: Active versions; with preamplifier up to 40 dB.
- Compact and lightweight.
- Fields of application:
Pre-compliance tests.
ADSL, VDSL, DSL.
13.56-MHz RFID.
Amateur radio.
Model Overview

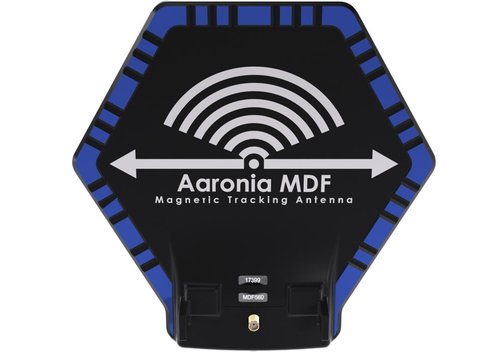

| Model | Gain | Frequency range | RF connector | Tech. specifications | |
| MDF-560 | 206/005 | 180 x 180 x 50; 180 g | 500 kHz...60 MHz (1...40 MHz with max. ±0.3-dB deviation) | SMA connector; nominal impedance 50 Ω | Max. input power 5 W (suitable as transmitting antenna); conversion factor 1 (0 dB A/m corresponds to 0 dBm); incl. pistol grip with mini tripod function; temperature range -40...+60°C |
| MDF-9400 | 206/006 | 180 x 180 x 50; 180 g | 9 kHz...400 MHz (1...40 MHz with max. ±0.3-dB deviation) | SMA socket; nominal impedance 50 Ω | Max. input power 5 W (suitable as transmitting antenna); conversion factor 1 (0 dB A/m corresponds to 0 dBm); incl. pistol grip with mini tripod function; temperature range -40...+60°C |
| MDF-930X | 206/007 | 180 x 180 x 85; 360 g | 9 kHz...30 MHz (1...25 MHz with max. ±0.5-dB deviation) | SMA connector; nominal impedance 50 Ω | Incl. 35-dB preamplifier with rechargeable battery and USB power supply; incl. pistol grip and waterproof carrying case; temperature range -40...+60°C |
| MDF-960X | 206/008 | 180 x 180 x 85; 360 g | 9 kHz...60 MHz (1...40 MHz with max. ±1.0-dB deviation) | SMA connector; nominal impedance 50 Ω | Incl. 25-dB preamplifier with rechargeable battery and USB,power supply; incl. pistol grip and waterproof carrying case; temperature range -40...+60°C |
| MDF-50400X | 206/009 | 180 x 180 x 85; 360 g | 500 kHz...400 MHz (1...40 MHz with max. ±1.0-dB deviation) | SMA socket; nominal impedance 50 Ω | Incl. 40-dB preamplifier with rechargeable battery and USB power supply; incl. pistol grip and waterproof carrying case; temperature range -40...+60°C |
