Gossen Metrawatt PROFITEST (M520) Series Test Instruments

1.725,50
including VAT free shipping (Germany)
min Quantity
1 piece
Unit price
base price
Variants
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Accessories
Files/Downloads

Benefits of the PROFITEST M520 Series Test Instruments According to VDE 0100/IEC 60364-6

  • Test instruments according to DIN VDE 0100/IEC 60364-6.
  • Measurement of contact voltage without tripping the RCCB.
  • Rugged device for mobile use.

Features of the PROFITEST INTRO (M520T)

  • Measurement of LO, ZL-PE, ZL-N, RISO, RE, ΔU, rotating field and voltage.
  • Offset Management RL-PE/RN-PE/RL-N.
  • Measurement functions directly selectable via rotary switch.
  • RCD test type A, AC, F, B, B+, EV, MI, G/R, SRCDs, PRCDs.
  • Display of permissible fuse types for electrical systems.
  • Measurement of the rotating field direction (phase sequence, highest interlinked voltage).
  • Contact voltage measurement via finger contact.
  • Connection of RFID or barcode scanner.
  • Individual measured value memory and creation of a memory structure.
  • Help function with connection pictures.
  • Bidirectional data exchange via USB, DDS-CAD, epINSTROM.
  • Measuring category CAT III 600 V/CAT IV 300 V.
  • International user interface (12 languages).
  • ETC software (Electrical Testing Center) for the creation of tree structures and documentation according to ZVEH. Models supported by the software IZYTRONIQ: M535 series.

Features of the PROFITEST MPRO (M510N), MTECH+ (M510R), MXTRA (M510P), SECULIFE IP (M510U)

  • Testing of residual current devices (RCCBs).
  • Measurement of contact voltage without tripping the RCCB. Contact voltage is measured with reference to nominal residual current using ⅓ of the nominal residual current value.
  • Testing for N-PE reversal.
  • Tripping test with nominal residual current, trip time measurement.
  • Testing of equipment and RCCBs with rising residual current including indication of tripping current and contact voltage.
  • Testing of RCCBs with nominal current of ½ IΔN, IΔN, 2 IΔN (5 IΔN to 300 mA: MPRO/MXTRA/SECULIFE IP; to 100 mA: MTECH+).
  • Intelligent ramp (PROFITEST MXTRA only): Simultaneous measurement of breaking current IΔN and breaking time tA.
  • Testing of selective SRCDs, PRCDs (SCHUKOMAT, SIDOS or comparable), type G/R, type AC, type A, F; type B, B+ and type EV (exept MPRO).
  • Testing of RCCBs which are suitable for pulsating residual direct current; testing is conducted with positive or negative half-waves.
  • Creation of test sequences (ETC).
  • Intelligent data transmission. Bidirectional interface to DDS-CAD for electrical planning.
  • Simulation of operating states of electric vehicles at electric charging stations of different manufacturers (MTECH+ and MXTRA only).

Model Overview

Model - instrumentsOrdering codeDescription

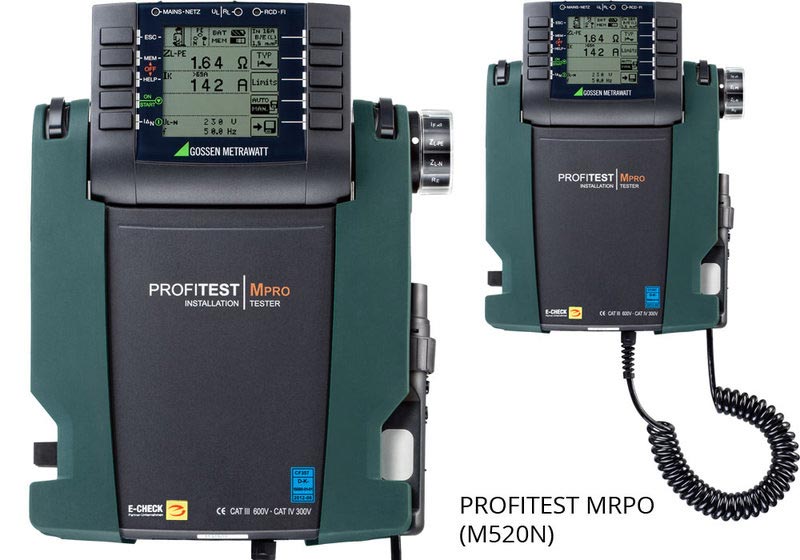

PROFITEST MPRO (EOL/obsolete)M520NSelective GND measurement with current clamps as optional accessories

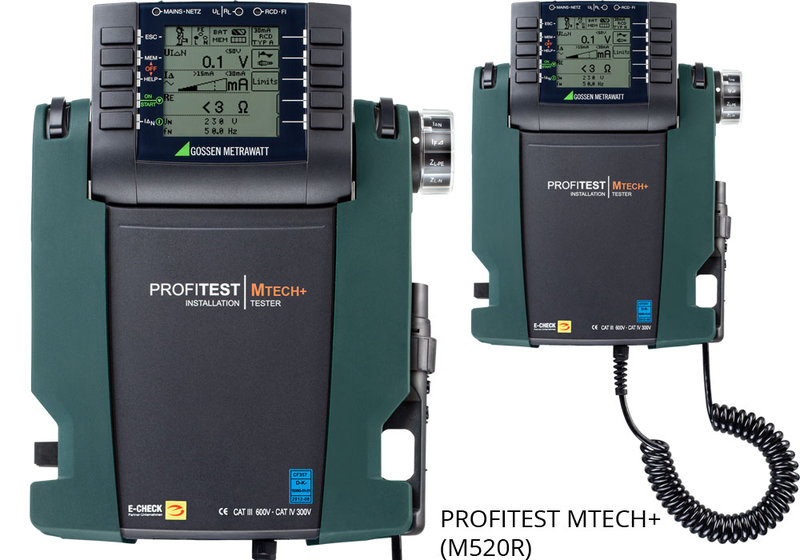

PROFITEST MTECH+ (EOL/obsolete)
replaced by ▸M522R
M520RTripping test for all-currentsensitive RCDs and loop impedance measurement without tripping the RC, e-mobility testing, Bluetooth interface

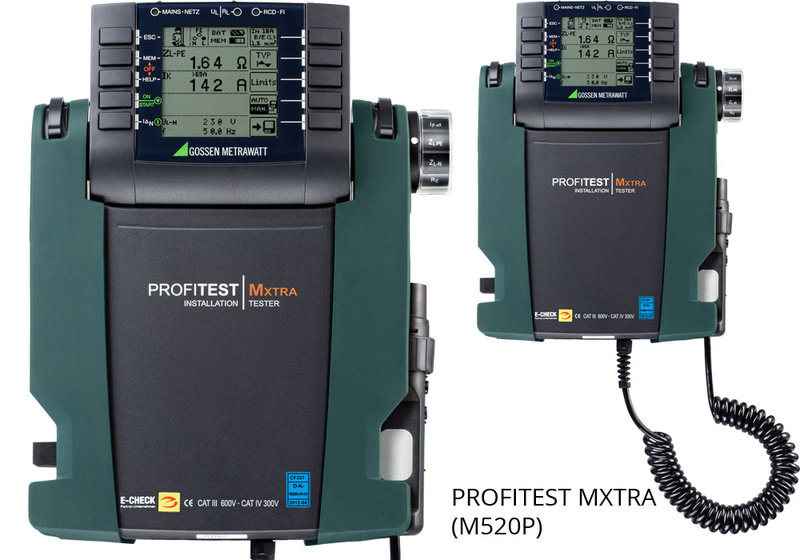

PROFITEST MXTRA (EOL/obsolete)
replaced by ▸M522P
M520PTripping test for all-current sensitive RCDs, loop impedance measurement as well as selective GND measurement with current clamps as optional accessories, testing of insulation monitors, RCMs as well as e-mobility testing, Bluetooth interface

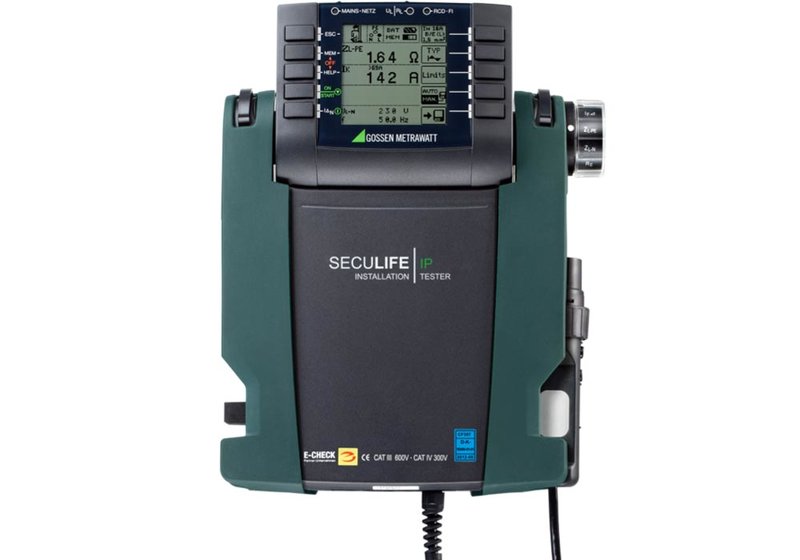

SECULIFE IP (EOL/obsolete)M520UTripping test for all-current sensitive RCDs, loop impedance measurement, testing of insulation monitors, Bluetooth interface,

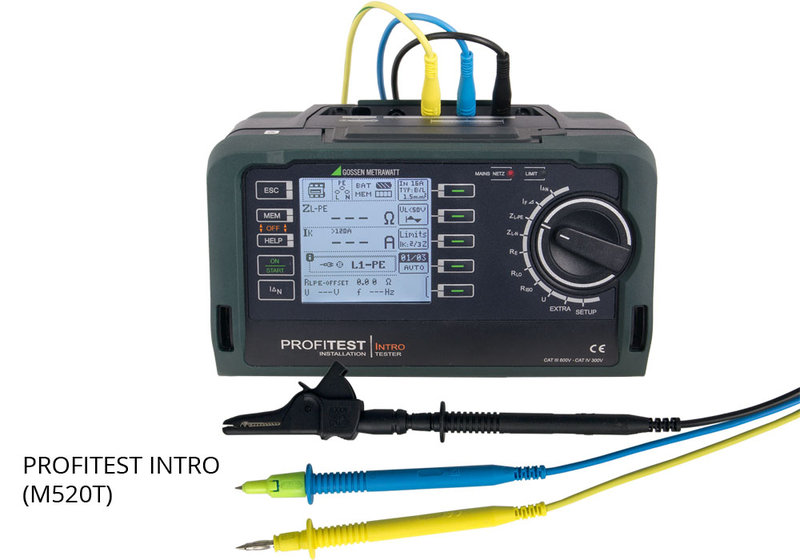

PROFITEST INTROM520TTesting device for testing the effectiveness of protective measures in electrical systems according to DIN VDE 0100-600 and VDE 0413, with integrated memory, RISO up to 1000 V, RLOW, ZL-PE, ZL-N, RE as well as RCDs of types A, AC, B, B+, F, EV, MI
