Gossen Metrawatt METRALINE DM61/DM62 Handheld Digital Multimeter
Benefits of the METRALINE DM61/DM62 Handheld DMM with Analog Bargraph and Temperature Measurement
- Handheld multimeter CAT III 600 V, CAT IV 300 V.
- DM61: Clipping function 1:1000 for optional current clamp WZ1001.
- Automatic blocking sockets ABS.
Gossen Metrawatt METRALINE DM61/DM62 Handheld Digital Multimeter
The handheld devices METRALINE DM61/62 offer all basic measurement functions of an all-round multimeter, for example voltage, resistance, current and temperature measurement. They provide precise measurements in the categories CAT IV 300 V and/or CAT III 600 V with increased security for the user and the device due to the automatic blocking socket feature (ABS). The METRALINE DM61 supports current measurements with a 1000:1 ratio current clamp up to 660 A. For this, the current clamp WZ1001 is available as an optional accessory. The METRALINE DM62 supports true RMS measurements and an extended spectrum of additional measurement functions such as capacity, frequency and duty cycle. The universal device is suitable for a wide range of electronic measurement applications, for example in electrical installation, studies or training.
- Handheld digital multimeter.
- Resolution: 6600 digits (3 6/7 digits) and analog bargraph (66 points).
- Dual digit display with backlight.
- Basic accuracy: 0.4% VDC.
- Voltage: DC/AC 100 µV...1000 V.
- Current, direct: DC/AC: 10 µA...660.0 mA (DM61)/10.00 A (DM62).
- Resistance: 100 mΩ...66 MΩ (DM61)/60.00 MΩ (DM62).
- Temperature: -50...+1300°C (thermocouple type K).
- Continuity and diode test.
- Hold/peak/min-max/relative (zero).
- Automatic/manual measurement range selection.
- Automatic connector lcok ABS.
- 300 V CAT IV, 600 V CAT III.
- Rubber protector against shock and impact.
- UL certified.

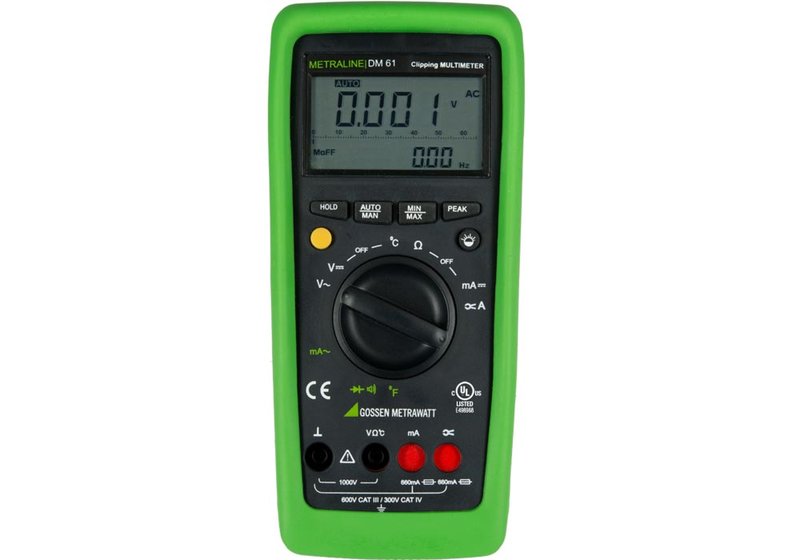

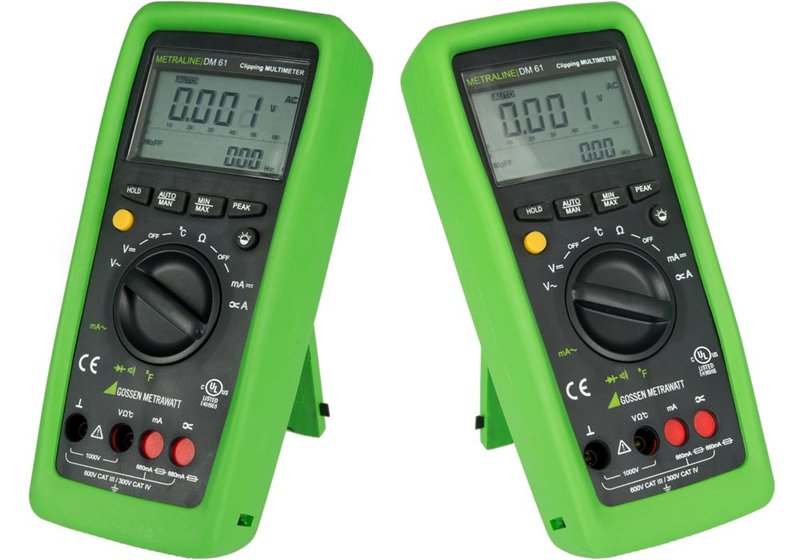

- METRALINE DM61:
Clamp ratio 1000:1 for current clamp probe;

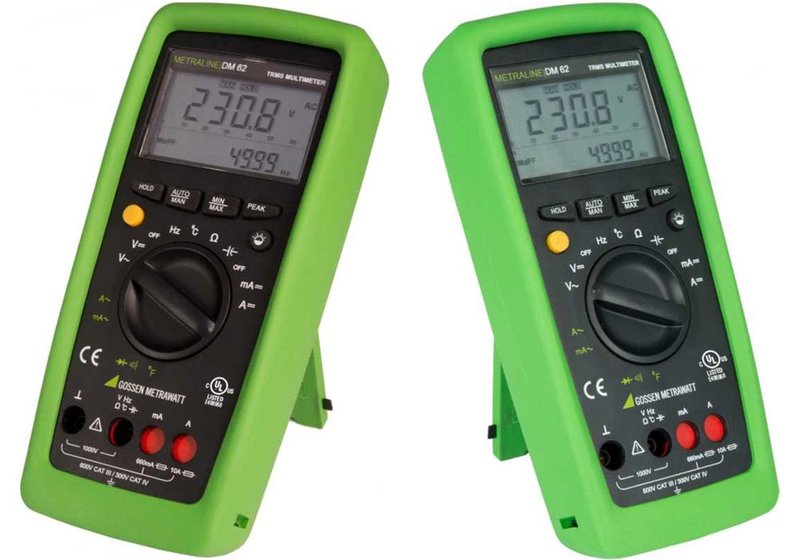

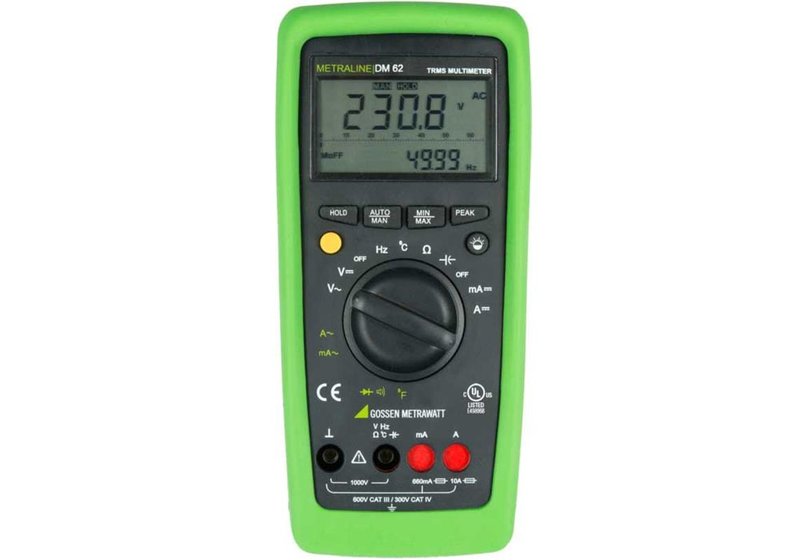

current with optional clamp: 10 mA...660 A (clip 1000:1). - METRALINE DM62:
Capacity: 1 pF...40.00 mF.
Frequency: 10.00 Hz...10.00 MHz.
Duty cycle measurement (%).
Model Overview
| Modell | ▸METRALINE DM41 | ▸METRALINE DM61 | ▸METRALINE DM62 |
| Ordering Code | M192A | M194A | M197A |
| Display digits | 3¾ digits, 3999 counts | 4 digits, 6600 counts | 4 digits, 6600 counts |
| Measurement category | 600 V CAT III/300 V CAT IV | 600 V CAT III, 300 V CAT IV; the 1000 V max. voltage can only be used at CAT II | 600 V CAT III, 300 V CAT IV; the 1000 V max. voltage can only be used at CAT II |
| Measurement range selection | manual/automatic | manual/automatic | manual/automatic |
| Measurement functions | |||
| Voltage | DC/AC 100 µV...600 V (ranges 400 mV, 4 V, 40 V, 400 V, 600 V); max./min./peak hold; smallest resolution 1 mV; frequency range VAC 20 Hz...1 kHz | DC/AC 100 µV...1000 V (ranges 660 mV, 6.6 V, 66 V, 660 V, 1000 V); max./min./peak hold; smallest resolution 100 µV; frequency range VAC 20 Hz...2 kHz | DC/AC 100 µV...1000 V (ranges 660 mV, 6.6 V, 66 V, 660 V, 1000 V); max./min./peak hold; smallest resolution 100 µV; frequency range VAC 20 Hz...2 kHz |
| Measurement type | Averaging | Averaging | TRMS (TRMS bandwidth: 2 kHz) |
| Current direct | DC/AC 10 µA...10.00 A (ranges 40 mA, 400 mA, 10 A); smallest resolution 10 µA | DC/AC 10 µA...660 mA (ranges 66 mA, 660 mA); smalles resolution 10 µA | DC/AC 10 µA...10.00 A (ranges 66 mA, 660 mA, 10 A); smalles resolution 10 µA |
| Current with clamp | - | Clamp function 1000:1 for current converters (current clamp WZ1001 available as an optional accessory) | - |
| Resistance | 100 mΩ...40.00 MΩ (ranges 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ, 40 MΩ); smallest resolution 100 mΩ | 100 mΩ...60.00 MΩ (ranges 660 Ω, 6.6 kΩ, 66 kΩ, 660 kΩ, 6.6 MΩ, 66 MΩ); smallest resolution 100 mΩ | 100 mΩ...60.00 MΩ (ranges 660 Ω, 6.6 kΩ, 66 kΩ, 660 kΩ, 6.6 MΩ, 66 MΩ); smallest resolution 100 mΩ |
| Capacity | 1 pF...200.0 µF (ranges 5 nF, 50 nF, 500 nF, 5 µF, 50 µF, 200 µF); smalles resolution 1 pF | - | 1 pF...40.00 mF (ranges 6.6 nF, 66 nF, 660 nF, 6.6 µF, 66 µF, 660 µF, 6.6 mF, 40 mF); smalles resolution 1 pF |
| Frequency | 0.001 Hz ... 500.0 kHz (ranges 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz, 500 kHz); smalles resolution 0.001 Hz | - | 10.00 Hz...10.00 MHz (ranges 66 Hz, 660 Hz, 6.6 kHz, 66 kHz, 660 kHz, 6.6 MHz, 10 MHz); smalles resolution 0.01 Hz |
| Diode | ✓ | ✓ | ✓ |
| Continuity | ✓ | ✓ | ✓ |
| Duty cycle (%) | ✓ (2.0...98.0%, smalles resolution 0.1%) | - | ✓ (1.0...98.90%, smalles resolution 0.01%) |
| Temperature | With optional thermocouple type K: -50...1300°C (ranges -50...0°C, 0...1300°C) smalles resolution 1°C | With optional thermocouple type K: -50...1300°C (ranges -50...0°C, 0...1300°C) smalles resolution 1°C | With optional thermocouple type K: -50...1300°C (ranges -50...0°C, 0...1300°C) smalles resolution 1°C |
| Relative value measurement | ✓ | - | - |
| Display | LCD (58 mm x 31 mm); digital display with backlight | LCD (58 mm x 31 mm); dual digital display with analog scale and backlight | LCD (58 mm x 31 mm); dual digital display with analog scale and backlight |
| Connectors | Automatic blocking sockets ABS | Automatic blocking sockets ABS | Automatic blocking sockets ABS |
| Power supply | 2x 1.5 V AA mignon battery | 2x 1.5 V AA mignon battery | 2x 1.5 V AA mignon battery |
| Dimensions (mm) | With cover: 86 x 188 x 53; without cover: 79 x 174 x 38; approx. 480 g (incl. batteries and rubber cover) | With cover: 86 x 188 x 53; without cover: 79 x 174 x 38; approx. 480 g (incl. batteries and rubber cover) | With cover: 86 x 188 x 53; without cover: 79 x 174 x 38; approx. 480 g (incl. batteries and rubber cover) |
Included: Digital multimeter METRALINE DM 61 or 62 (ordering code M194A or M197A), rubber protection with carrying strap, measuring lead set, batteries, operating instructions, test report. Optional accessory for DM61: AC current clamp 1000:1 WZ1001 (Z194A).
Information on product safety:
Manufacturer:
Gossen Metrawatt GmbH GMC-Instruments Group, Südwestpark 15, 90449 Nürnberg/DEU
www.gossenmetrawatt.com
