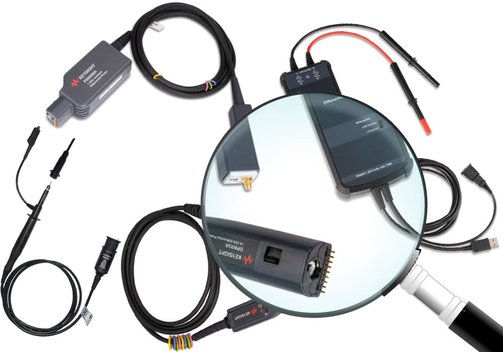

Recommended Probes for Keysight Oscilloscopes
Description
Files/Downloads
Recommended Probes for Keysight InfiniiVision 1000 X and 2000 X Series
Model Overview
| 1000 X series | 2000 X series | |
| Scope bandwidth | 70 MHz to 200 MHz | 70 MHz to 200 MHz |
| Probe interface | BNC | BNC |
| Standard passive probe(s) shipped with scope | ▸N2142A | 50 MHz ▸N2140A | 70/100 MHz | ▸N2841A | 70/100 MHz ▸N2842A | 200 MHz |
| Passive probe 1:1 | - | ▸10070D | 20 MHz, 1 MΩ, 70 pF N2870A | 35 MHz, 1 MΩ, 39 pF compact probe tip |
| Passive probe 10:1 | - | ▸N2841A | 150 MHz, 10 MΩ, 12 pF ▸N2842A | 300 MHz, 10 MΩ, 12 pF |
| Passive probe 1:1/10:1 switchable | ▸N2140A | 200 MHz, 10/1 MΩ, 15/100 pF ▸N2142A | 75 MHz, 10/1 MΩ, 15/100 pF | ▸N2889A | 350/10 MHz, 10/1 MΩ, 11/60 pF |
| Passive probe extreme temperature 10:1 (-40...+85°C) | N7007A | 400 MHz, 10 MΩ, 15.5 pF | N7007A | 400 MHz, 10 MΩ, 15.5 pF |
| High voltage passive probe 100:1 | ▸10076C | 500 MHz, 3.7 kV, 66.7 MΩ | ▸10076C | 500 MHz, 3.7 kV, 66.7 MΩ |
| Low impedance passive probe 10:1 | - | - |
| Low impedance passive probe 100:1 | - | - |
| Active single-ended probe | - | - |
| Active differential probe (high-speed) | - | - |
| Active differential probe (high-voltage) | N2791A | 25 MHz, 10:1/100:1 atten.: 70 V/700 V, 8 MΩ, 8 pF N2891A | 70 MHz, 100:1/1000:1 atten.: 700 V/7 kV, 100 MΩ, 5 pF | |
| Current probe | ▸1146B | DC...100 kHz, 0.1 VA: 100 mA...10 ARMS, 0.01 V/A: 1...100 ARMS N2780B | DC...2 MHz, 0.01 V/A: 20 mA...500 ARMS N2781B | DC...10 MHz, 0.01 V/A: 20 mA...150 ARMS N2782B | DC...50 MHz, 0.1 V/A: 5 mA...30 ARMS N2783B | DC...100 MHz, 0.1 V/A: 5 mA...30 ARMS ▸N7040A | 3 Hz...23 MHz, Rogowski coil, 2 mV/A: 100 mA...3000 APK ▸N7041A | 12 Hz...30 MHz, Rogowski coil, 10 mV/A: 100 mA...600 APK ▸N7042A | 9.2 Hz...30 MHz, Rogowski coil, 20 mV/A: 100 mA...300 APK | |
Recommended Probes for Keysight InfiniiVision 3000G X and 4000 X Series
Model Overview
| 3000G X series | 4000 X series | |
| Scope bandwidth | 100 MHz to 1 GHz | 200 MHz to 1.5 GHz |
| Probe interface | AutoProbe Lite | AutoProbe |
| Standard passive probe(s) shipped with scope | ▸N2841A | 100 MHz ▸N2842A | 200 MHz ▸N2843A | 350/500 MHz | ▸N2894A | 700 MHz |
| Passive probe 1:1 | ▸10070D | 20 MHz, 1 MΩ, 70 pF N2870A | 35 MHz, 1 MΩ, 39 pF compact probe tip | ▸10070D | 20 MHz, 1 MΩ, 70 pF N2870A | 35 MHz, 1 MΩ, 39 pF compact probe tip |
| Passive probe 10:1 | ▸N2841A | 100 MHz, 10 MΩ, 12 pF ▸N2842A | 300 MHz, 10 MΩ, 12 pF ▸N2843A | 500 MHz, 10 MΩ, 11 pF N2871A | 200 MHz, 10 MΩ, 9.5 pF, 2.5 mm probe tip | ▸N2894A | 700 MHz, 10 MΩ, 9.5 pF, 2.5 mm probe tip |
| Passive probe 1:1/10:1 switchable | ▸N2889A | 350/10 MHz, 10/1 MΩ, 11/60 pF | ▸N2889A | 350/10 MHz, 10/1 MΩ, 11/60 pF |
| Passive probe extreme temperature 10:1 (-40...+85°C) | N7007A | 400 MHz, 10 MΩ, 15.5 pF | N7007A | 400 MHz, 10 MΩ, 15.5 pF |
| High voltage passive probe 100:1 | ▸10076C | 500 MHz, 3.7 kV, 66.7 MΩ | ▸10076C | 500 MHz, 3.7 kV, 66.7 MΩ |
| Low impedance passive probe 10:1 | N2874A | 1.5 GHz, 10:1, 500 Ω, 2 pF | N2874A | 1.5 GHz, 10:1, 500 Ω, 2 pF |
| Low impedance passive probe 100:1 | N2876A | 1.5 GHz, 100:1, 5 kΩ, 2.6 pF | N2876A | 1.5 GHz, 100:1, 5 kΩ, 2.6 pF |
| Active single-ended probe | ▸N2795A | 1 GHz, ±8 V, 1 MΩ, 1 pF ▸N2796A | 2 GHz, ±8 V, 1 MΩ, 1 pF N2797A | 1.5 GHz, ±8 V, 1 MΩ, 1 pF extreme temperature 1130B | 1.5 GHz, ±2.5 V, 25 kΩ, 0.44 pF N7020A | 2 GHz, 24 V, 50 kΩ, 0.7 pF | ▸N2795A | 1 GHz, ±8 V, 1 MΩ, 1 pF ▸N2796A | 2 GHz, ±8 V, 1 MΩ, 1 pF N2797A | 1.5 GHz, ±8 V, 1 MΩ, 1 pF extreme temperature 1130B | 1.5 GHz, ±2.5 V, 25 kΩ, 0.44 pF N7020A | 2 GHz, 24 V, 50 kΩ, 0.7 pF |
| Active differential probe (high-speed) | N2750A | 1.5 GHz, ±5 V, 200 kΩ., 0.7 pF 1130B | 1.5 GHz, ±2.5 V, 50 kΩ, 0.27 pF | |
| Active differential probe (high-voltage) | N2791A | 25 MHz, 10:1/100:1 atten.: 70 V/700 V, 8 MΩ, 8 pF N2891A | 70 MHz, 100:1/1000:1 atten.: 700 V/2 kV, 100 MΩ, 5 pF ▸N2790A | 100 MHz, 50:1/500:1 atten.: 140 V/1.4 kV, 8 MΩ, 3.5 pF N2804A | 300 MHz, 100:1: 300 V, 2 MΩ, 2 pF N2805A | 200 MHz, 50:1: 100 V, 2 MΩ, 8 pF ▸DP0001A | 400 MHz, 50:1/100:1/250:1/500:1, 2 kV, 10 MΩ, 2 pF ▸DP0010A | 250 MHz, 17:1/85:1 atten.: ±4.2 V/±42 V, 1.7 MΩ, 1.5 pF ▸DP0011A | 500 MHz, 17:1/85:1 atten.: ±4.2 V/±42 V, 1.7 MΩ, 1.5 pF ▸DP0012A | 1.0 GHz, 17:1/85:1 atten.: ±4.2 V/±42 V, 1.7 MΩ, 1.5 pF ▸DP0013A | 1.7 GHz, 17:1/85:1 atten.: ±4.2 V/±42 V, 1.7 MΩ, 1.5 pF | |
| Current probe | ▸1146B | DC...100 kHz, 0.1 VA: 100 mA...10 ARMS, 0.01 V/A: 1...100 ARMS N2780B | DC...2 MHz, 0.01 V/A: 20 mA...500 ARMS N2781B | DC...10 MHz, 0.01 V/A: 20 mA...150 ARMS N2782B | DC...50 MHz, 0.1 V/A: 5 mA...30 ARMS ▸1147B | DC...50 MHz, 0.1 V/A: 5 mA...10 ARMS N2783B | DC...100 MHz, 0.1 V/A: 5 mA...30 ARMS ▸N2893A | DC...100 MHz, 0.1 V/A: 5 mA...10 ARMS N2820A/1A | DC...3 MHz, 50 µA...5 A, dual-channel (N2820A) and single-channel (N2821A) high sensitivity ▸N7026A | DC...150 MHz, 1 V/A and 0.2 V/A: 5 mA...30 ARMS, high sensitivity ▸N7040A | 3 Hz...23 MHz, Rogowski coil, 2 mV/A: 100 mA...3000 APK ▸N7041A | 12 Hz...30 MHz, Rogowski coil, 10 mV/A: 100 mA...600 APK ▸N7042A | 9.2 Hz...30 MHz, Rogowski coil, 20 mV/A: 100 mA...300 APK | |
Recommended Probes for Keysight InfiniiVision 6000 X Series and Infiniium EXR Series, S Series
Model Overview
| 6000 X series | EXR series | S series | |
| Scope bandwidth | 1 to 6 GHz | 500 MHz to 6 GHz | 500 MHz to 8 GHz |
| Probe interface | AutoProbe | AutoProbe | AutoProbe |
| Standard passive probe(s) shipped with scope | ▸N2894A | 700 MHz | N2873A | 500 MHz | |
| Passive probe 1:1 | ▸10070D | 20 MHz, 1 MΩ, 70 pF N2870A | 35 MHz, 1 MΩ, 39 pF compact probe tip | ▸10070D | 20 MHz, 1 MΩ, 70 pF N2870A | 35 MHz, 1 MΩ, 39 pF compact probe tip | |
| Passive probe 10:1 | ▸N2894A | 700 MHz, 10 MΩ, 9.5 pF, 2.5 mm probe tip | ▸N2894A | 700 MHz, 10 MΩ, 9.5 pF, 2.5 mm probe tip | |
| Passive probe 1:1/10:1 switchable | ▸N2889A | 350/10 MHz, 10/1 MΩ, 11/60 pF | ▸N2889A | 350/10 MHz, 10/1 MΩ, 11/60 pF | |
| Passive probe extreme temperature 10:1 (-40...+85°C) | N7007A | 400 MHz, 10 MΩ, 15.5 pF | N7007A | 400 MHz, 10 MΩ, 15.5 pF | |
| High voltage passive probe 100:1 | ▸10076C | 500 MHz, 3.7 kV, 66.7 MΩ | ▸10076C | 500 MHz, 3.7 kV, 66.7 MΩ | |
| Low impedance passive probe 10:1 | N2874A | 1.5 GHz, 10:1, 500 Ω, 2 pF | N2874A | 1.5 GHz, 10:1, 500 Ω, 2 pF | |
| Low impedance passive probe 100:1 | N2876A | 1.5 GHz, 100:1, 5 kΩ, 2.6 pF | N2876A | 1.5 GHz, 100:1, 5 kΩ, 2.6 pF | |
| Active single-ended probe | ▸N2795A | 1 GHz, ±8 V, 1 MΩ, 1 pF ▸N2796A | 2 GHz, ±8 V, 1 MΩ, 1 pF N2797A | 1.5 GHz, ±8 V, 1 MΩ, 1 pF extreme temperature 1130B | 1.5 GHz, ±2.5 V, 25 kΩ, 0.44 pF N7020A | 2 GHz, 24 V, 50 kΩ, 0.7 pF | ▸N2795A | 1 GHz, ±8 V, 1 MΩ, 1 pF ▸N2796A | 2 GHz, ±8 V, 1 MΩ, 1 pF N2797A | 1.5 GHz, ±8 V, 1 MΩ, 1 pF extreme temperature 1130/1/2/4B | 1.5/3.5/5/7 GHz, ±2.5 V, 25 kΩ, 0.44 pF 1168/9B | S-series only: 10/11 GHz, ±1.65 V, 50 kΩ, 0.17 pF N7020A | 2 GHz, 24 V, 50 kΩ, 0.7 pF | |
| Active differential probe (high-speed) | N2750A | 1.5 GHz, ±5 V, 200 kΩ., 0.7 pF 1130B | 1.5 GHz, ±2.5 V, 50 kΩ, 0.27 pF | N2750/1/2A | 1.5/3.5/6 GHz, ±5 V, 200 kΩ., 0.7 pF 1130/1/2/4B | 1.5/3.5/5/7 GHz, ±2.5 V, 25 kΩ, 0.44 pF 1168/9B | (S-series only) 10/11 GHz, ±1.65 V, 50 kΩ, 0.17 pF | |
| Active differential probe (high-voltage) | N2791A | 25 MHz, 10:1/100:1 atten.: 70 V/700 V, 8 MΩ, 8 pF N2891A | 70 MHz, 100:1/1000:1 atten.: 700 V/2 kV, 100 MΩ, 5 pF ▸N2790A | 100 MHz, 50:1/500:1 atten.: 140 V/1.4 kV, 8 MΩ, 3.5 pF N2804A | 300 MHz, 100:1: 300 V, 2 MΩ, 2 pF N2805A | 200 MHz, 50:1: 100 V, 2 MΩ, 8 pF ▸DP0001A | 400 MHz, 50:1/100:1/250:1/500:1, 2 kV, 10 MΩ, 2 pF ▸DP0010A | 250 MHz, 17:1/85:1 atten.: ±4.2 V/±42 V, 1.7 MΩ, 1.5 pF ▸DP0011A | 500 MHz, 17:1/85:1 atten.: ±4.2 V/±42 V, 1.7 MΩ, 1.5 pF ▸DP0012A | 1.0 GHz, 17:1/85:1 atten.: ±4.2 V/±42 V, 1.7 MΩ, 1.5 pF ▸DP0013A | 1.7 GHz, 17:1/85:1 atten.: ±4.2 V/±42 V, 1.7 MΩ, 1.5 pF | ||
| Current probe | ▸1146B | DC...100 kHz, 0.1 VA: 100 mA...10 ARMS, 0.01 V/A: 1...100 ARMS N2780B | DC...2 MHz, 0.01 V/A: 20 mA...500 ARMS N2781B | DC...10 MHz, 0.01 V/A: 20 mA...150 ARMS N2782B | DC...50 MHz, 0.1 V/A: 5 mA...30 ARMS ▸1147B | DC...50 MHz, 0.1 V/A: 5 mA...10 ARMS N2783B | DC...100 MHz, 0.1 V/A: 5 mA...30 ARMS ▸N2893A | DC...100 MHz, 0.1 V/A: 5 mA...10 ARMS N2820A/1A | DC...3 MHz, 50 µA...5 A, dual-channel (N2820A) and single-channel (N2821A) high sensitivity ▸N7026A | DC...150 MHz, 1 V/A and 0.2 V/A: 5 mA...30 ARMS, high sensitivity ▸N7040A | 3 Hz...23 MHz, Rogowski coil, 2 mV/A: 100 mA...3000 APK ▸N7041A | 12 Hz...30 MHz, Rogowski coil, 10 mV/A: 100 mA...600 APK ▸N7042A | 9.2 Hz...30 MHz, Rogowski coil, 20 mV/A: 100 mA...300 APK | ||
