Benefits of the HyperLOG Wideband EMC Measurement Antennas

Extremely broadband, up to 380 MHz...35 GHz.
High gain up to 5 dBi.
Linear frequency response.

Aaronia HyperLOG Series Passive Antennas 380 MHz to 35 GHz

The Aaronia HyperLOG series are passive antennas of the absolute top class. They support an ultra wide frequency range from max. 380 MHz to 35 GHz. Thus the antennas can be used for measuring Tetra/BOS, directional radio, various satellite applications etc. Including detailed calibration data - ideal for very accurate EMC measurements with spectrum analyzers.

Modell-Übersicht

Model		Dimensions (mm)	Design	Gain	RF connector	Frequency range	Tech. specifications

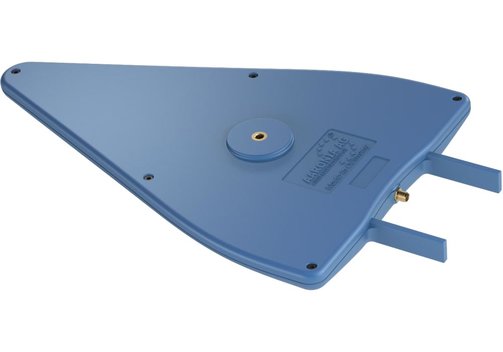

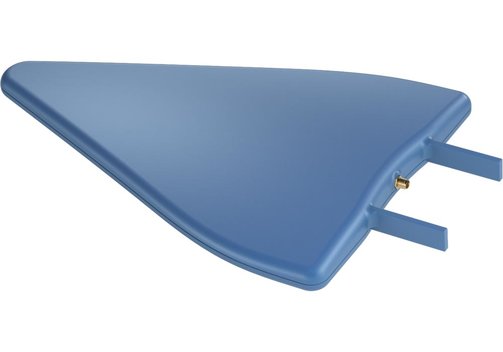

HyperLOG-7025	201/001	340 x 200 x 25; 270 g	Log periodic	4 dBi	SMA female or optional N adaptor; nominal impedance 50 Ω	700 MHz...2.5 GHz	183 calibration points (10-MHz steps); VSWR typ. <2; max. transmission power 100 W CW (400 MHz); antenna factor 23...34 dB/m
HyperLOG-7040	201/002	340 x 200 x 25; 270 g	Log periodic	4 dBi	SMA female or optional N adaptor; nominal impedance 50 Ω	680 MHz...4 GHz	333 calibration points (10-MHz steps); VSWR (typ.) <2; max. transmission power 100 W CW (400 MHz); antenna factor 23...38 dB/m
HyperLOG-7060	201/003	340 x 200 x 25; 250 g	Log periodic	5 dBi	SMA female or optional N adaptorr; nominal impedance 50 Ω	700 MHz...6 GHz	533 calibration points (10-MHz steps); VSWR typ. <2; max. transmission power 100 W CW (400 MHz); antenna factor 26...41 dB/m
HyperLOG-6080	201/004	340 x 200 x 25; 250 g	Log periodic	5 dBi	SMA female; nominal impedance 50 Ω	680 MHz...8 GHz	733 calibration points (10-MHz steps); VSWR typ. <2.5; max. transmission power 100 W CW (400 MHz); antenna factor 22...44 dB/m
HyperLOG-60100	201/005	340 x 200 x 25; 250 g	Log periodic	5 dBi	SMA female; nominal impedance 50 Ω	680 MHz...10 GHz	933 calibration points (10-MHz steps); VSWR typ. <2.5; max. transmission power 100 W CW (400 MHz); antenna factor 22..46 dB/m
HyperLOG-60180	201/006	340 x 200 x 25; 250 g	Log periodic	5 dBi	K (2.92 mm); nominal impedance 50 Ω	680 MHz...18 GHz	1733 calibration points (10-MHz steps); VSWR typ. <2.5; max. transmission power 100 W CW (400 MHz); antenna factor 22..50 dB/m

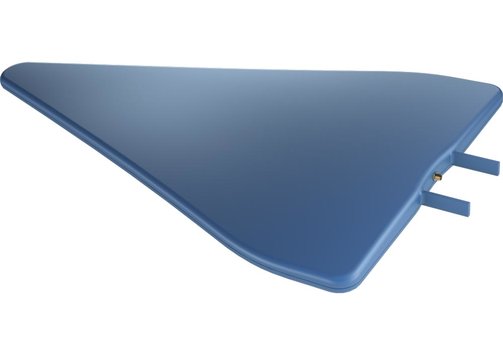

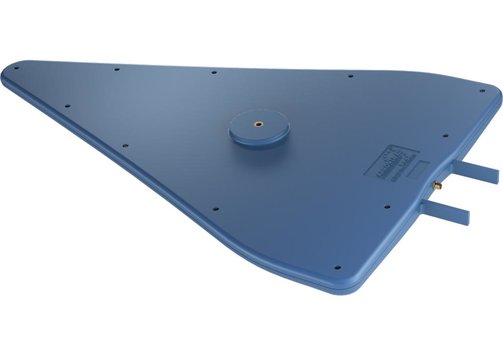

HyperLOG-4025	201/009	590 x 360 x 30; 1200 g	Log periodic	4 dBi	SMA female or optional N adaptor; nominal impedance 50 Ω	400 MHz...2.5 GHz	211 calibration points (10-MHz steps); VSWR typ. <2; max. transmission power 100 W CW (400 MHz); antenna factor 18...34 dB/m
HyperLOG-4040	201/010	590 x 360 x 30; 1200 g	Log periodic	4 dBi	SMA female or optional N adaptor; nominal impedance 50 Ω	400 MHz...4 GHz	361 calibration points (10-MHz steps); VSWR typ. <2; max. transmission power 100 W CW (400 MHz); antenna factor 18...38 dB/m
HyperLOG-4060	201/011	590 x 360 x 30; 1000 g	Log periodic	5 dBi	SMA female or optional N adaptor; nominal impedance 50 Ω	400 MHz...6 GHz	561 calibration points (10-MHz steps); VSWR typ. <2; max. transmission power 100 W CW (400 MHz); antenna factor 20...40 dB/m
HyperLOG-3080	201/012	590 x 360 x 30; 1000 g	Log periodic	4 dBi	SMA female; nominal impedance 50 Ω	380 MHz...8 GHz	763 calibration points (10-MHz steps); VSWR typ. <2.5; max. transmission power 100 W CW (400 MHz); antenna factor 20...43 dB/m
HyperLOG-30100	201/013	590 x 360 x 30; 1000 g	Log periodic	5 dBi	SMA female; nominal impedance 50 Ω	380 MHz...10 GHz	963 calibration points (10-MHz steps); VSWR typ. <2.5; max. transmission power 100 W CW (400 MHz); antenna factor 20...46 dB/m
HyperLOG-30180	201/014	590 x 360 x 30; 1000 g	Log periodic	5 dBi	SMA female; nominal impedance 50 Ω	380 MHz...18 GHz	1763 calibration points (10-MHz steps); VSWR typ. <2.5; max. transmission power 100 W CW (400 MHz); antenna factor 20...55 dB/m
HyperLOG-30250	201/015	590 x 360 x 30; 1000 g	Log periodic	5 dBi	K (2.92 mm); nominal impedance 50 Ω	380 MHz...25 GHz	493 calibration points (10-MHz steps); VSWR typ. <2.5; max. transmission power 100 W CW (400 MHz); antenna factor 20...55 dB/m
HyperLOG-30350	201/016	590 x 360 x 30; 1000 g	Log periodic	5 dBi	K (2.92 mm); nominal impedance 50 Ω	380 MHz...35 GHz	693 calibration points (10-MHz steps); VSWR typ. <2.5; max. transmission power 100 W CW (400 MHz); antenna factor 20...55 dB/m

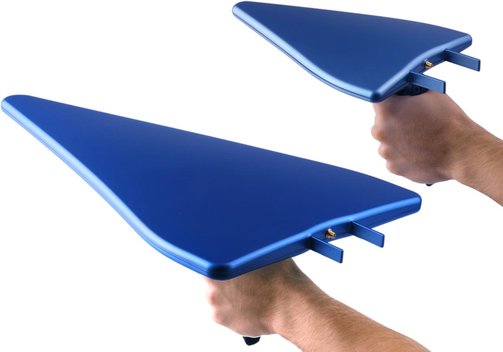

Included: HyperLOG antenna, typical calibration data, aluminum carrying case with foam protection, pistol grip with mini tripod function, Aaronia SMA tool set with over-torque protection.
