Description
Files/Downloads

Benefits of the HyperLOG-X Active Broadband Antennas up to 380 MHz...20 GHz

  • Ideal for EMC testing combined with a spectrum analyzer.
  • High bandwidth, different ranges depending on the model.
  • High gain for detection of even lowest RF sources.

Aaronia HyperLOG-X Series Active Log-periodic Measurement Antennas

  • For field strength and EMC measurements in combination with spectrum analyzers or oscilloscopes from various manufacturers.
  • High gain for detection of even lowest RF sources.
  • Low noise preamplifier with integrated LiPo battery.
  • Gold coating for stable performance.
  • High bandwidth.
  • Coverage of various cellular frequencies.
  • Compact and rugged design.
  • For laboratory and outdoor measurements/field.
  • Battery- or power supply-operated.

Model Overview

ModelDimensions (mm)DesignGainRF connectorFrequency rangeTech. specifications

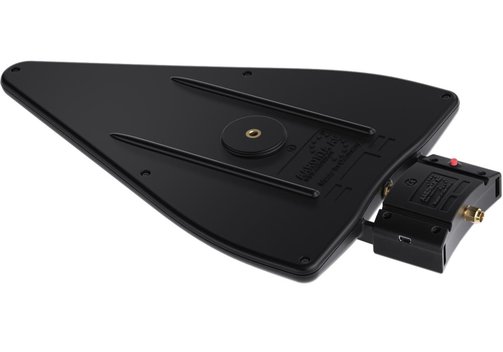

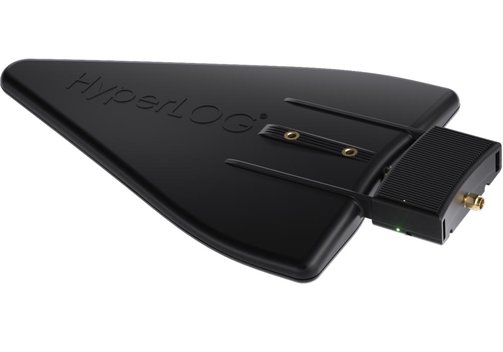

HyperLOG-7025-X201/017390 x 200 x 25; 400gActive log. periodic44 dBiSMA female or optional N adaptor; nominal impedance 50 Ω100 MHz1)/700 MHz...2.,5 GHz183 calibration points (10-MHz steps); VSWR typ. <2; tripod socket 1/4"; USB 2.0/1.1 interface2); pre-amp.: Noise "linear" increase 100 MHz: 3.50 dB/2.50 GHz: 3.91 dB, gain (typ.) "linear" falloff 1 MHz: 40 dB/2.5 GHz: 38 dB
HyperLOG-7040-X201/018390 x 200 x 25; 400gActive log. periodic44 dBiSMA female or optional N adaptor; nominal impedance 50 Ω100 MHz1)/700 MHz...4 GHz333 calibration points (10-MHz steps); VSWR typ. <2; tripod socket 1/4"; USB 2.0/1.1 interface2); pre-amp.: Noise "linear" increase 100 MHz: 3.50 dB/4 GHz: 4.15 dB, gain (typ.) "linear" falloff 1 MHz: 40 dB/4 GHz: 36.5 dB
HyperLOG-7060-X201/019390 x 200 x 25; 400gActive log. periodic45 dBiSMA female or optional N adaptor; nominal impedance 50 Ω120 MHz1)/700 MHz...6 GHz533 calibration points (10-MHz steps); VSWR typ. <2; tripod socket 1/4"; USB 2.0/1.1 interface2); pre-amp.: Noise "linear" increase 100 MHz: 3.5 dB/3 GHz: 4.0 dB/6 GHz: 4.5 dB, gain (typ.) "linear" falloff 1 MHz: 40.0 dB/3 GHz: 37.5 dB/6 GHz: 35.0 dB
HyperLOG-6080-X201/020390 x 200 x 25; 400gActive log. periodic45 dBiSMA female; nominal impedance 50 Ω100 MHz1)/680 MHz...8 GHz733 calibration points (10-MHz steps); VSWR typ. <2; tripod socket 1/4"; USB 2.0/1.1 interface2); pre-amp.: Noise "linear" increase 100 MHz: 3.5 dB/3 GHz: 4 dB/6 GHz: 4.5 dB, gain (typ.) "linear" falloff 1 MHz: 40 dB/3 GHz: 37.5 dB/6 GHz: 35 dB
HyperLOG-60100-X201/021390 x 200 x 25; 400gActive log. periodic45 dBiSMA female; nominal impedance 50 Ω100 MHz1)/680 MHz...10 GHz933 calibration points (10-MHz steps); VSWR typ. <2; tripod socket 1/4"; USB 2.0/1.1 interface2); pre-amp.: Noise "linear" increase 100 MHz: 3.5 dB/3 GHz: 4 dB/6 GHz: 4.5 dB, gain (typ.) "linear" falloff 1 MHz: 40 dB/3 GHz: 37.5 dB/6 GHz: 35 dB
HyperLOG-60200-X201/022390 x 200 x 25; 400gActive log. periodic19 dBiSMA female; nominal impedance 50 Ω100 MHz1)/680 MHz...20 GHz389 calibration points (10-MHz steps); VSWR typ. <2; tripod socket 1/4"; USB 2.0/1.1 interface2); pre-amp.: Noise 2.5 dB, gain typ. 14 dB

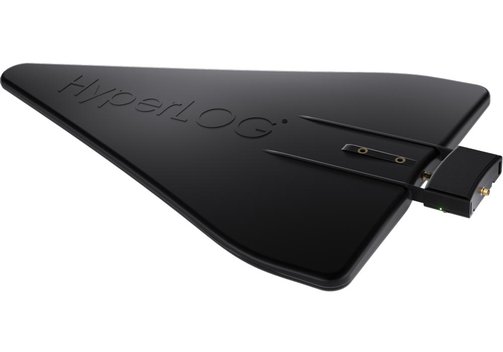

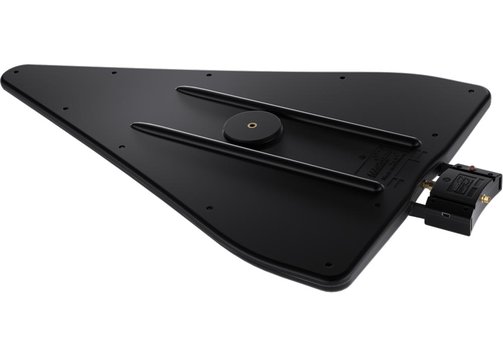

HyperLOG-4025-X201/023640 x 360 x 30; 1400 gActive log. periodic44 dBiSMA female or optional N adaptor; nominal impedance 50 Ω70 MHz1)/400 MHz...2.5 GHz211 calibration points (10-MHz steps); VSWR typ. <2; tripod socket 1/4"; USB 2.0/1.1 interface2); pre-amp.: Noise "linear" increase 100 MHz: 3.50  dB/2.50 GHz: 3.91 dB, gain (typ.) "linear" falloff 1 MHz: 40.0 dB/2.5 Hz: 38,0 dB
HyperLOG-4040-X201/024640 x 360 x 30; 1400 gActive log. periodic44 dBiSMA female or optional N adaptor; nominal impedance 50 Ω70 MHz1)/400 MHz...4 GHz361 calibration points (10-MHz steps); VSWR typ. <2; tripod socket 1/4"; USB 2.0/1.1 interface2); pre-amp.: Noise "linear" increase 100 MHz: 3.50 dB/4 GHz: 4.15 dB, gain (typ.) "linear" falloff 1 MHz: 40.0 dB/4 GHz: 36.5 dB
HyperLOG-4060-X201/025640 x 360 x 30; 1400 gActive log. periodic45 dBiSMA female or optional N adaptor; nominal impedance 50 Ω70 MHz1)/400 MHz...6 GHz561 calibration points (10-MHz steps); VSWR typ. <2; tripod socket 1/4"; USB 2.0/1.1 interface2); pre-amp.: Noise "linear" increase 100 MHz: 3.5 dB/3 GHz: 4.0 dB/6 GHz: 4.5 dB, gain (typ.) "linear" falloff 1 MHz: 40.0 dB/3 GHz: 37,5 dB/6 GHz: 35.0 dB
HyperLOG-3080-X201/026640 x 360 x 30; 1400 gActive log. periodic45 dBiSMA female; nominal impedance 50 Ω50 MHz1)/380 MHz...8 GHz763 calibration points (10-MHz steps); VSWR typ. <2; tripod socket 1/4"; USB 2.0/1.1 interface2); pre-amp.: Noise "linear" increase 100 MHz: 3.5 dB/3 GHz: 4 dB/6 GHz: 4.5 dB, gain (typ.) "linear" falloff 1 MHz: 40  dB/3 GHz: 37.5 dB/6 GHz: 35 dB
HyperLOG-30100-X201/027640 x 360 x 30; 1400 gActive log. periodic44 dBiSMA female; nominal impedance 50 Ω50 MHz1)/380 MHz...10 GHz963 calibration points (10-MHz steps); VSWR typ. <2.5; tripod socket 1/4"; USB 2.0/1.1 interface2); pre-amp.: Noise "linear" increase 100 MHz: 3.5 dB/3 GHz: 4 dB/6 GHz: 4.5 dB, gain (typ.) "linear" falloff 1 MHz: 40 dB/3 GHz: 37.5 dB/6 GHz: 35 dB
HyperLOG-30200-X201/028640 x 360 x 30; 1400 gActive log. periodic19 dBiSMA female; nominal impedance 50 Ω50 MHz1)/380 MHz...20 GHz394 calibration points (10-MHz steps); VSWR typ. <2.5; tripod socket 1/4"; USB 2.0/1.1 interface2); pre-amp.: Noise 2.5 dB, gain typ. 14 dB

1) with limited directivity.
2) calibration data readout.

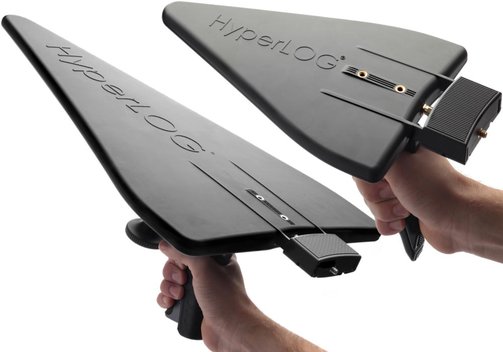

Included: HyperLOG-X antenna, typical calibration data, aluminum carrying case with foam protection, pistol grip with mini tripod function, Aaronia SMA tool set with over-torque protection, pre-amplifier with special battery and power supply.

Active DF Antennas with Bypass - Can also be used as passive antennas

ModelDimensions (mm)DesignGainRF connectorFrequency rangeActiveMount
HyperLOG-7025-X-BPA201/029590 x 360 x 30; 1200 gLPDA26 dBiSMA female400 MHz...2.5 GHzYes (with bypass)1/4" thread
HyperLOG-7040-X-BPA201/030590 x 360 x 30; 1200 gLPDA26 dBiSMA female400 MHz...4 GHzYes (with bypass)1/4" thread
HyperLOG-7060-X-BPA201/031590 x 360 x 30; 1200 gLPDA26 dBiSMA female400 MHz...6 GHzYes (with bypass)1/4" thread
HyperLOG-4025-X-BPA201/032340 x 200 x 25; 270 gLPDA26 dBiSMA female700 MHz...2.5 GHzYes (with bypass)1/4" thread
HyperLOG-4040-X-BPA201/033340 x 200 x 25; 270 gLPDA26 dBiSMA female700 MHz...4 GHzYes (with bypass)1/4" thread
HyperLOG-4060-X-BPA201/034340 x 200 x 25; 270 gLPDA26 dBiSMA female700 MHz...6 GHzYes (with bypass)1/4" thread

Information on product safety:

Manufacturer:
Aaronia AG, Kauthenbergstraße 14, 54597 Strickscheid/DEU
www.aaronia.com
