Aaronia HyperLOG-Pro Series Directional Measuring and DF Antennas
Benefits of the HyperLOG-Pro Logarithmic Periodic Broadband Measuring and DF Antennas
- Extremely broadband.
- High gain and high directivity.
- Excellent forward/backward ratio.

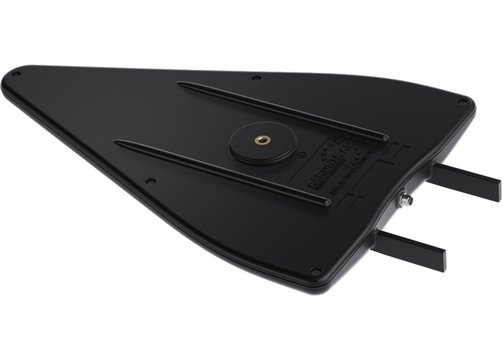

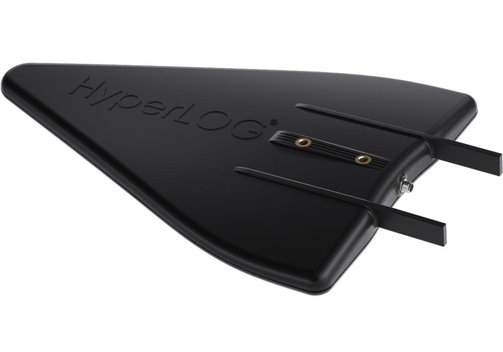

Aaronia HyperLOG-Pro Series Directional Measuring and Direction Finding Antennas
The Aaronia HyperLOG-Pro series are low-cost, logarithmic periodic broadband measurement and direction finding antennas (DF) that meet the highest requirements. In this price range they offer a new mix of performance, functionality and design. Together with the HyperLOG antennas, any commercially available spectrum analyzer becomes a professional RF measurement system with DF function - ideal for EMC measurements in the lab or in the field. Thanks to their low weight and the multi-function pistol grip, the antennas are also ideally suited as a supplement to portable EMC measuring instruments for all kinds of direction finding and measuring tasks. Their compact and robust design also contributes to this.
Model Overview
| Model | Dimensions (mm) | Design | Gain | RF connector | Frequency range | Tech. data | |
| HyperLOG-PRO-18200 | 201/043 | 340 x 200 x 25; 250 g | LPDA Hybrid | 11 dBi | 2.92 mm K female, nom. impedance 50 Ω | 2...20 GHz | 365 calibration points (50-MHz steps); VSWE typ. <2:1; max. transmission power 100 W CW (15 GHz); antenna factor 29-47 dB/m; HPBW min. 26° |
| HyperLOG-PRO-18250 | 201/037 | 340 x 200 x 25; 250 g | LPDA Hybrid | 11 dBi | 2.92 mm K female, nom. impedance 50 Ω | 2...25 GHz | 465 calibration points (50-MHz steps); VSWR typ. <2:1; max. transmission power 100 W CW (15 GHz); antenna factor 29-48 dB/m; HPBW min. 26° |
| HyperLOG-PRO-18300 | 201/038 | 340 x 200 x 25; 250 g | LPDA Hybrid | 11 dBi | 2.92 mm K female, nom. impedance 50 Ω | 2...30 GHz | 565 calibration points (50-MHz steps); VSWR typ. <2:1; max. transmission power 100 W CW (15 GHz); antenna factor 29-50 dB/m; HPBW min. 26° |
| HyperLOG-PRO-18350 | 201/039 | 340 x 200 x 25; 250 g | LPDA Hybrid | 11 dBi | 2.92 mm K female, nom. impedance 50 Ω | 2...35 GHz | 665 calibration points (50-MHz steps); VSWR typ. <2:1; max. transmission power 100 W CW (15 GHz); antenna factor 29-54 dB/m; HPBW min. 26° |
| HyperLOG-PRO-18400 | 201/040 | 340 x 200 x 25; 250 g | LPDA Hybrid | 12 dBi | 2.92 mm K female, nom. impedance 50 Ω | 2...40 GHz | 765 calibration points (50-MHz steps); VSWR typ. <2:1; max. transmission power 100 W CW (15 GHz); antenna factor 29-53 dB/m; HPBW min. 25° |
| HyperLOG-PRO-7080 | 201/044 | 590 x 360 x 30; 1200 g | LPDA Hybrid | 11 dBi | SMA female | 700 MHz...8 GHz | |
| HyperLOG-PRO-70140 | 201/045 | 590 x 360 x 30; 1200 g | LPDA Hybrid | 13 dBi | SMA female | 700 MHz...14 GHz | |
| HyperLOG-PRO-70200 | 201/046 | 590 x 360 x 30; 1200 g | LPDA Hybrid | 13 dBi | SMA female | 700 MHz...20 GHz | |
| HyperLOG-PRO-70260 | 201/050 | 590 x 360 x 30; 1200 g | LPDA Hybrid | 13 dBi | 2.92 mm K female | 700 MHz...26.5 GHz | |
| HyperLOG-PRO-7080X | 201/047 | 590 x 360 x 30; 1400 g | LPDA hybrid, active | 11 dBi | SMA female | 700 MHz...8 GHz | |
| HyperLOG-PRO-70140X | 201/048 | 590 x 360 x 30; 1400 g | LPDA hybrid, active | 11 dBi | SMA female | 700 MHz...14 GHz | |
| HyperLOG-PRO-70200X | 201/049 | 590 x 360 x 30; 1400 g | LPDA hybrid, active | 11 Bi | SMA female | 700 MHz...20 GHz | |
Included: HyperLOG-PRO antenna, typical calibration data, aluminum carrying case with foam protection, pistol grip with mini tripod function, Aaronia SMA tool set with over-torque protection.
Information on product safety:
Manufacturer:
Aaronia AG, Kauthenbergstraße 14, 54597 Strickscheid/DEU
www.aaronia.com
