Benefits of the MR6000 Memory Recorder with High Measurement Capabilities and Fast Transfer Rates
- Modular, stand-alone design with a wide, clear touch screen display.
- Up to 32 channels analog to 128 channels logic.
- Depending on module high voltage inputs, high-speed inputs.
HIOKI MR6000 Stand-Alone Modular Memory Recorder
The HIOKI MR6000 is a portable high-speed memory recorder with high measurement capabilities. It offers a maximum of 32 channels analog to 128 channels logic, 200 MS/s (16 channels) sampling, 1 GWord memory (1 channel), and 12/16/24bit A/D resolution. The device has USB, SSD option, and an SD-card slot. With a wide touch-screen display and front-panel with buttons the MR6000 works as a stand-alone device. The MR6000 is the main unit of this modular system that can integrate up to 8 input modules. A wide selection of modules is available.
- High-speed memory recorder with up to 32 channels analog to 128 channels logic.

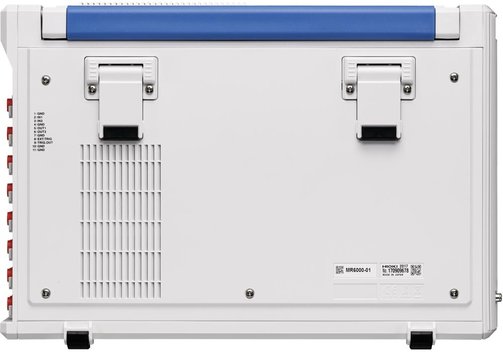

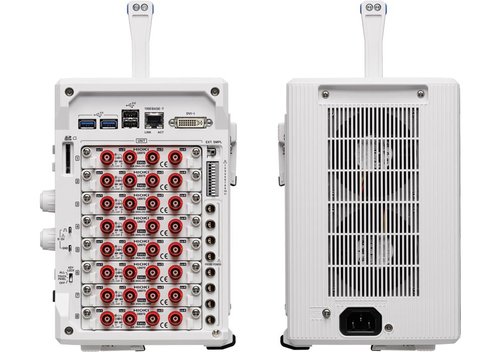

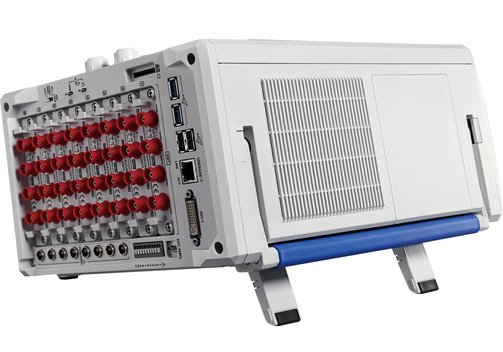

- Modular design with main unit MR6000 and up to to ▸8 input modules (wide selection available).
- 200 MS/s (16 channels, high-speed unit) sampling, 1 GWord memory (1 channel), and 12/16/24 bit A/D resolution.
- USB, SSD option, SD-card slot.

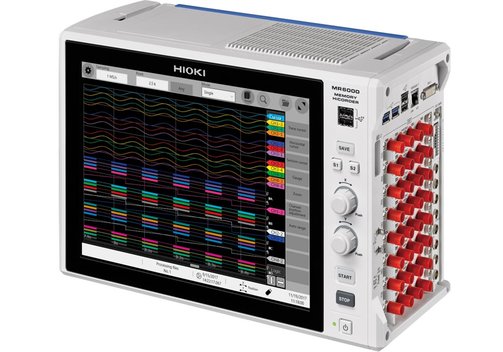

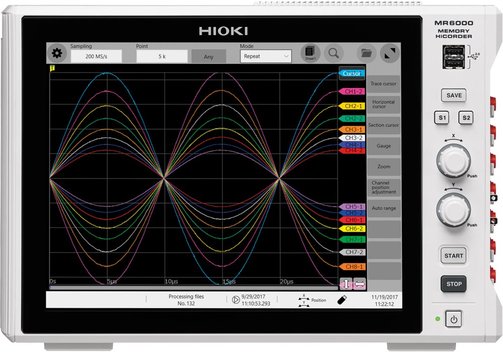

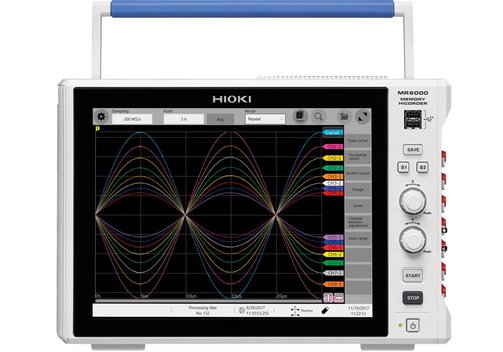

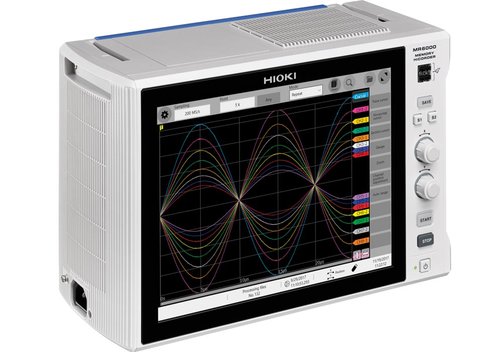

- Portable stand-alone device with touch-screen display and front-panel with buttons.
- Capture momentary phenomena by performing isolation measurement.
- Save data in real time while measurement continues.
- Version MR-6000-01: Built-in real-time waveform calculation and other functionality.
Model Overview
| Model | MR6000 (standard) | MR6000-01 |
| Number of input units | Max. 8 units | |
| Number of channels | Max. 32 analog channels (when using the U8975), or 128 logic channels (when using the 8973) | |
| Additional function | - | Real-time waveform calculation, digital filter calculation |
| Measurement ranges (20 div full-scale) | 10 mV...400 V f.s., 12 ranges (when using the U8976), resolution: 1/1600 of range; 4 V...200 V f.s., 6 ranges (when using the U8975), resolution: 1/32000 of range | |
| Max. allowable input | 400 VDC (when using the U8976), 200 VDC (when using the U8975) | |
| Frequency characteristics | DC...30 MHz (when using the U8976), DC...2 MHz (when using the U8975) | |
| Max. sampling rate | 200 MS/s, all channnels simultaneously (when using the U8976); external sampling: 10 MS/s | |
| Recording methods | Normal: Normal waveform recording; envelope: Record maximum and minimum values every fixed period | |
| Storage | Storage memory capacity 1 GWords; removable storage (HIOKI storage medium recommended) SD memory card, USB memory x7, SSD/HDD (built in the main unit); FTP transmission (to LAN-connected computer) | |
| Interfaces | LAN, USB, SD, SATA, monitor output | |
| Power supply | 100...240 VAC (50/60 Hz); max. 300 VA | |
| Dimensions (mm) | 353 x 235 x 155; 6.5 kg | |
Included: HIOKI memroy recorder MR 6000, power cord, quick start manual, precautions conserning use, application CD, instruction manual (CD, detail and calculation), blank panel (for blank slots only).
Model Versions and Compatible Modules
| Model | Description | Number of channels | Fastest sampling | Bandwidth | A/D resolution | DC accuracy (f.s.) | Max. input voltage | Sensitivity | Max. sensitivity range (f.s.) | Isolation | Supplement |
| MR6000 (standard) | Main unit, 8 slots, max. 32 channels analog or 128 channels logic | ||||||||||
| MR6000-01 | Enhanced version with realtime waveform calculation, digital filter calculation | ||||||||||
| ▸U8976 | High-speed analog unit | 2 | 200 MS/s | DC...30 MHz | 12 bit | ±0.5% | 400 VDC, 1000 VDC | 0.0625 mV | 100 mV | Yes | - |
| ▸8966 | Analog unit | 2 | 20 MS/s | DC...5 MHz | 12 bit | ±0.5% | 400 VDC | 0.05 mV | 100 mV | Yes | - |
| ▸U8975 | 4-channel analog unit | 4 | 5 MS/s | DC...2 MHz | 16 bit | ±0.1% | 200 VDC | 0.125 mV | 4 V | Yes | - |
| ▸U8978 | 4-channel analog unit | 4 | 5 MS/s | DC...2 MHz | 16 bit | ±0.3% | 40 VDC | 3.125 µV | 100 mV | Yes | - |
| ▸8968 | High resolution unit | 2 | 1 MS/s | DC...100 kHz | 16 bit | ±0.3% | 400 VDC | 3.125 µV | 100 mV | Yes | with AAF |
| ▸8972 | DC/RMS unit | 2 | 1 MS/s | DC...400 kHz | 12 bit | ±0.5% | 400 VDC | 0.05 mV | 100 mV | Yes | with RMS |
| ▸U8974 | High voltage unit | 2 | 1 MS/s | DC...100 kHz | 16 bit | ±0.25% | 1000 VDC; 700 VAC | 0.125 mV | 4 V | Yes | - |
| ▸MR8990 | Digital voltmeter unit | 2 | 2 ms | - | 24 bit | ±0.01% rdg. ±0.0025% f.s. | 500 VDC | 0.1 µV | 100 mV | Yes | - |
| ▸U8977 | 3-channel current unit | 3 | 5 MS/s | DC...2 MHz | 16 bit | ±0.3% | Current sensor only | Depends on current sensor | - | Max. 3 units | |
| ▸8971 | Current unit | 2 | 1 MS/s | DC...100 kHz | 12 bit | ±0.65% | Current sensor only | Depends on current sensor | - | with RMS; max. 4 units | |
| ▸8967 | Temperature unit | 2 | 1.2 ms | DC | 16 bit | see detailed reference | Thermocouples only | 0.01°C | 200°C (392°F) | Yes | - |
| ▸U8969 | Strain unit | 2 | 200 Hz | DC...20 kHz | 16 bit | ±0.5% ±4 µε | Strain only | 0.016 µε | 400 µε | Yes | Discontinued product 8969 can also be used |
| ▸8970 | Frequency unit | 2 | 200 Hz | DC...100 kHz3) | 16 bit | - | 400 VDC | 0.002 Hz | Depends on mode | Yes | - |
| ▸U8979 | Charge unit | 2 | 200 Hz | DC...50 kHz (DC); 1 Hz...50 kHz (AC) | 16 bit | ±0.5% (voltage); ±2.0% (acceleration) | 40 VDC | Depends on acceleration sensor | Yes | Supports TEDS | |
| ▸8973 | Logic unit | 4 probes (16 channels) | - | - | - | - | - | - | - | - | Requires 9320-01, 9327 or MR9321-01 |
| Model | Description | Number of channels | Output function | Output voltage range | |||||||
| ▸U8793 | Arbitrary waveform generator unit | 2 | Function generator: Sine, square, pulse, triangle, ramp, DC; arbitrary waveform generation: Measurement waveform with memory recorder, waveform editted with the SP8000 | -10...15 V | |||||||
| ▸MR8790 | Waveform generator unit | 4 | DC, sine wave (output frequency range: 0 Hz...20 kHz) | -10...10 V | |||||||
| ▸MR8791 | Pulse generator unit | 8 | Pulse output: Frequency 0 Hz...20 kHz; logic output: Voltage level 0...5 V, open-collector; output terminal connector: D-sub, half-pitch, 50-pin | ||||||||
