Benefits of the IM35xx Series LCR Meters for R&D and Industrial Production Lines

  • High accuracy LCR testing, model with transformer measurement mode.
  • Fast measuring speed up to 1 ms or 2 ms.
  • Exceptional specifications and cost-performance for a wide range of applications.

HIOKI IM35xx Series LCR Meters and Impedance Meters

HIOKI IM3523/IM3523A, IM3533, IM3536 Industrial LCR Meters

The HIOKI IM35xx is a series of high accuracy and reliability LCR and impedance meters for professional industrial production lines and R&D applications in the testing of electronic components.

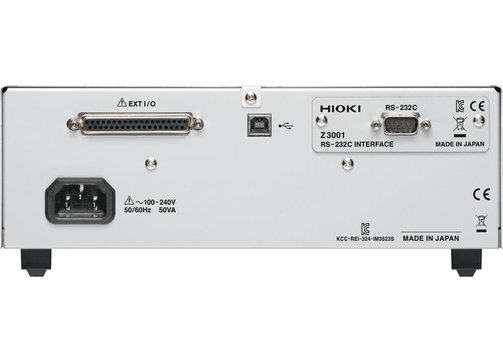

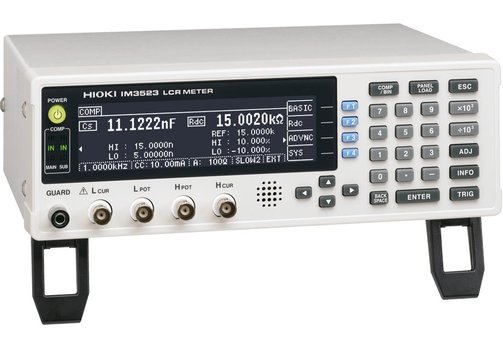

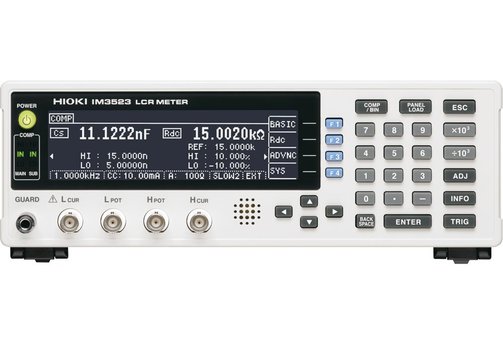

  • IM3523(A) basic LCR meter:
    • |Z|, L, C, R testing; testing source frequency 40 Hz...200 kHz.
    • Fast measuring time 2 ms.
    • ±0.05% accuracy with wide measurement range (DC, 40 Hz...200 kHz, 5 mV...5 V, 10 µA...50 mA).
    • Built-in comparator and BIN functions.
    • Non-stop testing over mixed measurement conditions such as C-D (120 Hz) and ESR (100 kHz).

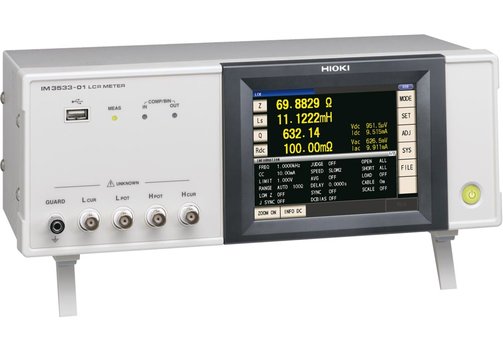

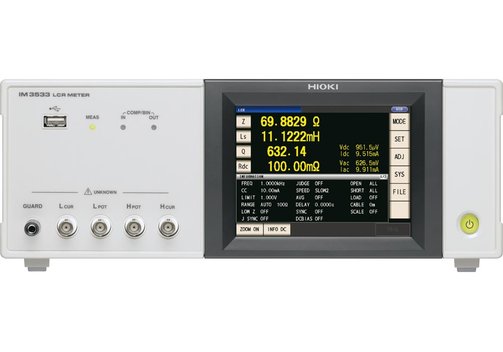

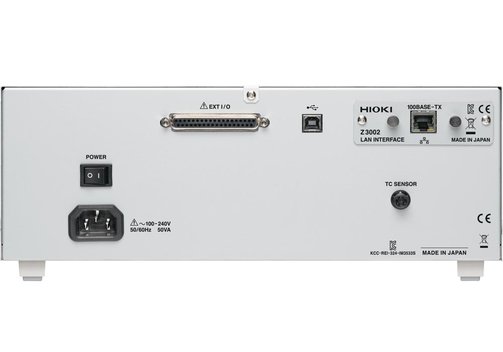

  • IM3533(-01) enhanced LCR meter:
    • |Z|, L, C, R testing; testing source frequency 1 mHz...200 kHz.
    • Fast measuring time 2 ms.
    • Transformer measurement mode: Turn ratio, mutual inductance and inductance difference measurements of transformers and coils.
    • IM3533-01: Frequency sweep measurement.
    • Internal DC bias to facilitate HDMI compliance testing.
    • ±0.05% accuracy with wide measurement range (DC, 1 mHz...200 kHz, 5 mV...5 V, 10 µA...50 mA).
    • Non-stop testing over mixed measurement conditions such as C-D and ESR.
    • Built-in low impedance high precision mode effective for testing low inductance or the ESR of aluminum electrolysis capacitance.

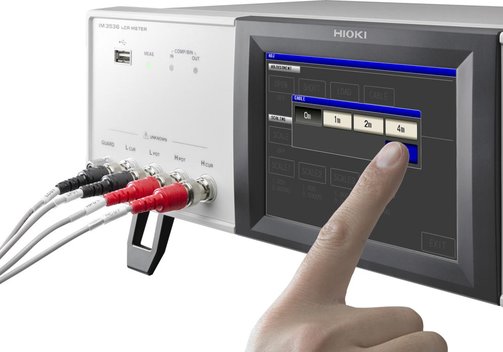

    • 2 m/4 m cable setting in addition to the standard 0 m/1 m.
    • Touch screen with intuitive operation.

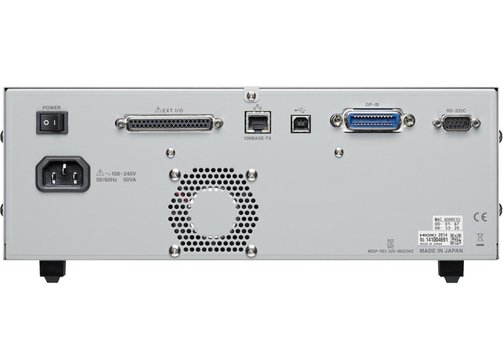

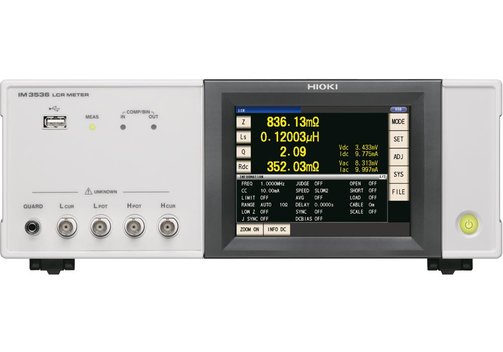

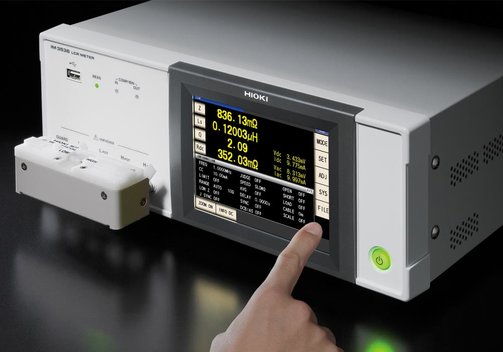

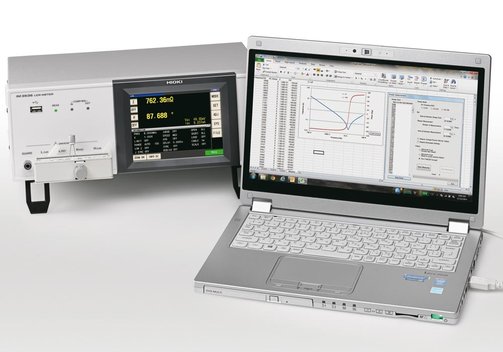

  • IM3536 general-purpose LCR meter:
    • |Z|, L, C, R testing, testing source frequency DC, or 4 Hz...8 MHz (customizable up to 10 MHz on request).
    • Fast measuring time 1 ms.
    • Accuracy guaranteed range from 1 mΩ, low-impedance measurement with unmatched repeatability.
    • High-precision measurement of ±0.05% rdg. (representative value).
    • DC bias function: Measure under conditions simulating actual use or in accordance with industry standards.

Model Overview

ModelHIOKI IM3523(A)HIOKI IM3533(-01)HIOKI IM3536
Measurement modesLCR (measurement with single condition),
continuous testing (continuous measurement under saved conditions)		LCR (measurement with single condition),
transformer testing (N, M, ΔL)
IM3533: Continuous testing (continuous measurement under saved conditions, LCR mode)
IM3533-01: Analyzer (sweep testing),
continuous cesting (LCR/analyzer mode)		LCR (measurement with single condition),
continuous testing (continuous measurement under saved conditions)
Measurement parametersZ, Y, θ, X, G, B, Q, Rdc (DC resistance), Rs (ESR), Rp, Ls, Lp, Cs, Cp, D (tan δ), σ, εZ, Y, θ, X, G, B, Q, Rdc (DC resistance), Rs (ESR), Rp, Ls, Lp, Cs, Cp, D (tan δ), N, M, ΔL, TZ, Y, θ, X, G, B, Q, Rdc (DC resistance), Rs (ESR), Rp, Ls, Lp, Cs, Cp, D (tan δ), σ, ε
Measurement range100 mΩ...100 MΩ, 10 ranges (all parameters defined in terms of Z)
Displayable rangeZ, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp: ±(0.00000 [unit]...9.99999 G [unit]) real value display for Z and Y only;
θ: ±(0.000°...180.000°);
D: ± (0.00000...9.99999);
Q: ±(0.00...99999.9);
Δ%: ±(0.0000%...999.999%)		Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp: ±(0.00000 [unit]...9.99999 G [unit]) real value display for Z and Y only;
θ: ±(0.000°...180.000°);
D: ±(0.00000 to 9.99999);
Q: ±(0.00...99999.9);
Δ%: ±(0.0000%...999.999%);
T: -10.0...99.9°C		Z: 0.00 mΩ...9.99999 GΩ;
Y: 0.000 nS...9.99999 GS;
&theta: ±(0.000°...180.000°);
Q: ±(0.00...9999.99);
Rdc: ±(0.00 mΩ...9.99999 GΩ);
D: ±(0.00000...9.99999);
Δ%: ±(0.000% to 999.999%), or other
Basic accuracyZ: ±0.05% rdg. θ: ±0.03°Z: ±0.05% rdg. θ: ±0.03°Z ±0.05% rdg. θ: ±0.03°(representative value, measurable range 1 mΩ...200 MΩ)
Measurement frequency40 Hz...200 kHz (5 digits setting resolution)1 mHz...200 kHz (5 digits setting resolution, minimum resolution 1 mHz)4 Hz...8 MHz (5 digits setting resolution, minimum resolution 10 mHz)
Measurement signal levelNormal mode
V mode, CV mode: 5 mV...5 VRMS, 1 mVRMS steps;
CC mode: 10 µA...50 mARMS, 10 µARMS steps		Normal mode
V mode, CV mode: 5 mV...5 VRMS, 1 mVRMS steps;
CC mode: 10 µA...50 mARMS, 10 µARMS steps.

Low impedance high accuracy mode
V mode, CV mode: 5 mV...2.5 VRMS, 1 mVRMS steps;
CC mode: 10 µA...100 mARMS, 10 µARMS steps		Normal mode;
V mode/CV mode 4 Hz...1.0000 MHz: 10 mV...5 VRMS (maximum 50 mARMS), 1.0001 MHz...8 MHz: 10 mV...1 VRMS (max. 10 mARMS).

Low impedance high accuracy mode
V mode/CV mode 4 Hz...1.0000 MHz: 10 mV...1 VRMS (max.m 100 mARMS).

Normal mode
CC mode 4 Hz...1.0000 MHz: 10 µA...50 mARMS (max. 5 VRMS), 1.0001 MHz...8 MHz: 10 µA...10 mARMS (max. 1 VRMS).

Low impedance high accuracy mode
CC mode 4 Hz...1.0000 MHz: 10 µA...100 mARMS (max. 1 VRMS).

DC resistance measurement
measurement signal level: Fixed at 1 V.

DC bias measurement generating range:
DC voltage 0...2.50 V (10 mV resolution);
in low Z high accuracy mode: 0...1 V (10 mV resolution)
Output impedance100 ΩNormal mode: 100 Ω, low impedance high accuracy mode: 25 ΩNormal mode: 100 Ω, low impedance high accuracy mode: 10 Ω
DisplayMonochrome LCD5.7"/14.5 cm touch-screen color TFT, display can be set to ON/OFF
Measurement time2 ms (1 kHz, FAST, representative value)2 ms (1 kHz, FAST, display OFF, representative value)1 ms (fastest time)
FunctionsComparator, BIN measurement (classify function), panel loading/saving, memory function
-DC bias measurement, DC resistance temperature compensation (converted reference temperature display)Trigger function, open/short compensation, contact check
InterfacesEXT I/O (handler), USB; optional: Choose 1 from RS232C, GPIB, or LAN.
Version A: EXT I/O (handler), USB, LAN (options for RS232C or GPIB not available)		EXT I/O (handler), USB, USB flash drive; optional: Choose 1 from RS232C, GPIB, or LANEXT I/O (handler), USB, USB flash drive LAN, GPIB, RS232C, BCD
Dimensions (mm)260 x 88 x 203; 2.4 kg330 x 119 x 168; 3.1 kg330 x 119 x 230; 4.2 kg

Included: LCR meter HIOKI IM 3523, 3533, or 3536, power cord, instruction manual, CD with software, user manual.
