Aaronia Real-Time EMC Bundles
Aaronia Real-Time EMC Bundles
The Aaronia real-time EMC measurement bundles allow EMC diagnosis already during product design. Shielding problems can be detected, the success of countermeasures can be analyzed in real time and much more. This significantly reduces the time and cost involved in product development. Typical application areas are: Real-time EMC measurements, localization of sources of interference radiation, estimation of interference field strengths, real-time verification of shielding and filtering measures, detection of faulty components, determination of spurious radiation sensitivities.
Aaronia Real-Time EMC Package 1 (104/005)
- Frequency range 10 MHz...6 GHz (optional 8 GHz).
- Type. measuring range -170...+23 dBm.
- Type. accuracy 0.5 ppm (optional 5 ppb).
Aaronia Real-Time EMC Package 2 (104/006)
- Frequency range 10 MHz...6 GHz (optional 8 GHz).
- Type. measuring range -170...+23 dBm.
- Type. accuracy 0.5 ppm (optional 5 ppb).
Aaronia Real-Time EMC Package 3 (104/007)
- Frequency range 10 MHz...6 GHz (optional 8 GHz).
- Type. measuring range -170...+23 dBm.
- Type. accuracy 0.5 ppm (optional 5 ppb).
Model Overview and Contents
| Model | Contents | |||
| Spektrum analyzer | Antenna(s), probes | Software | ||

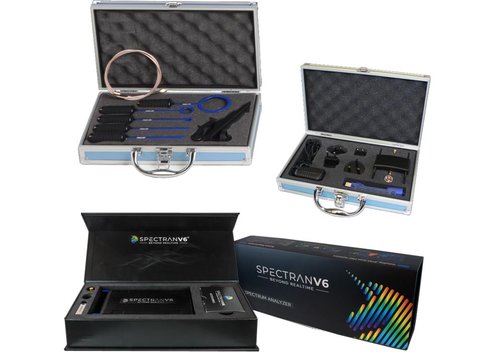

| Real-Time EMC Package 1 | 104/005 | SPECTRAN-V6-RSA500X in a box, power supply, 3x USB cable | PBS2 active probe set with 5 probes in a case, SMB cable 1 m and mini tripod/pistol grip | RTSA-Suite-PRO basic software (on USB stick, also contains the manuals) |

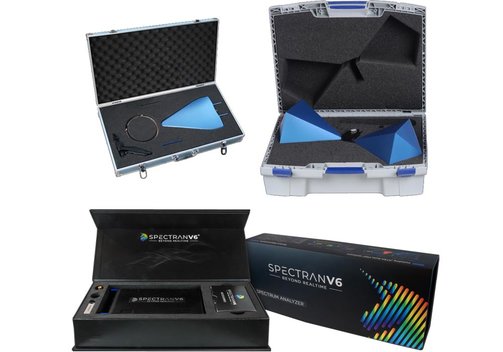

| Real-time EMC package 2 | 104/006 | HyperLOG-6080 in case, BicoLOG-20100E in case, SMA cable, SMA tool, mini tripod/pistol grip | ||

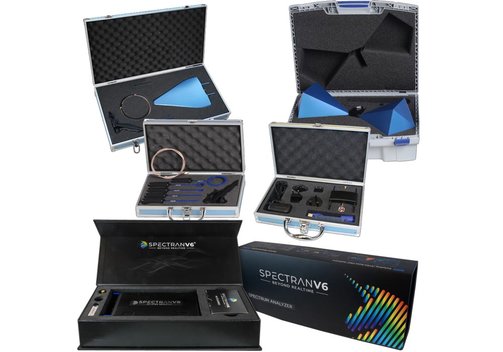

| Real-time EMC package 3 | 104/007 | HyperLOG-6080 in case, BicoLOG-20100E in case, SMA cable, SMA tool, mini tripod/pistol grip, PBS2 active probe set with 5 probes in case, SMB cable 1 m and mini tripod/pistol grip | ||
Information on product safety:
Manufacturer:
Aaronia AG, Kauthenbergstraße 14, 54597 Strickscheid/DEU
www.aaronia.com
