dydaqlog DL-160-16-D - IIoT Datalogger with WLAN and Ethernet/LAN

starting 2.387,14
including VAT free shipping (Germany)
min Quantity
1 piece
Unit price
base price
Variants
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Accessories
Files/Downloads

Benefits of the dydaqlog Sensor Datalogger, Monitoring and Automation System

  • Datalogger for highprecision data acquisition with flexible sensor inputs (U, I, TC, PT50/100/500/1000, strain gauge)

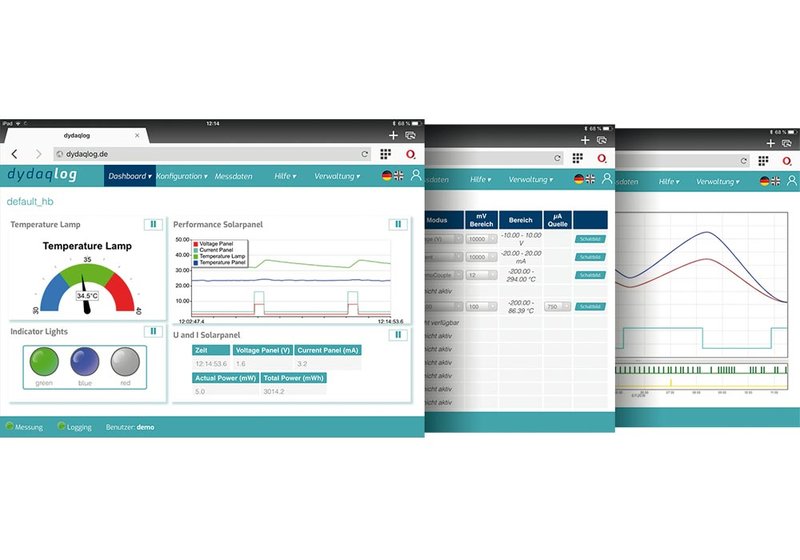

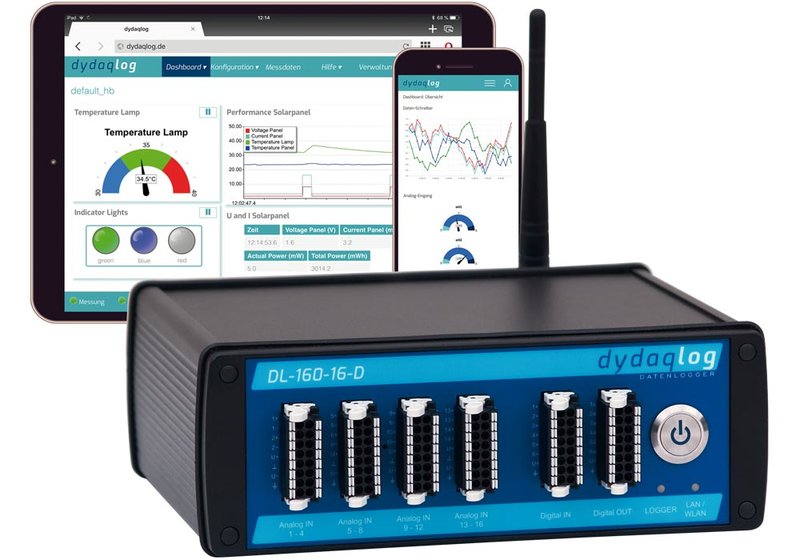

  • Configure and control measurement, display data with web interface.
  • Store data in internal Flash memory, send to a Cloud or a server.

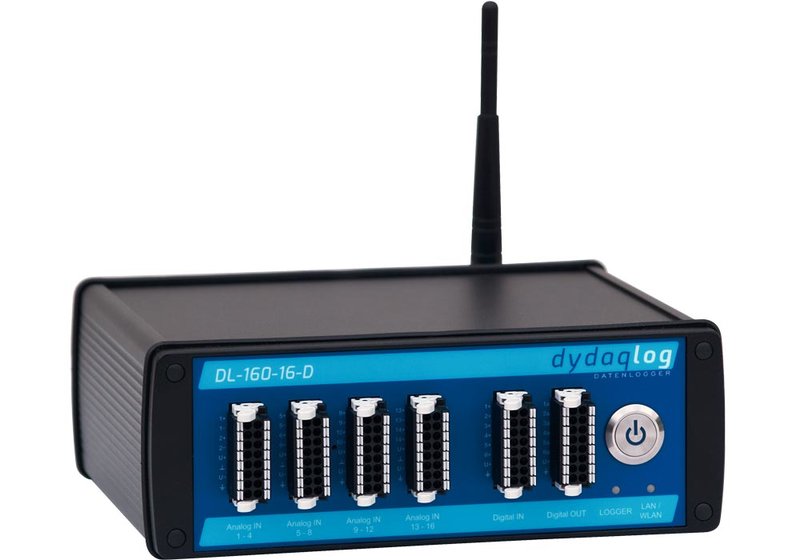

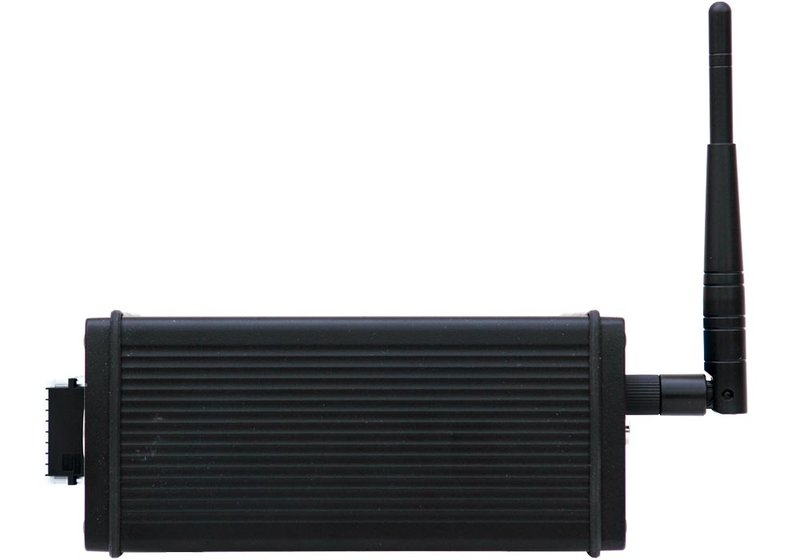

dydaqlog DL-160-16-D IIoT WLAN and Ethernet/LAN Datalogger

The dydaqlog IIoT datalogger DL-160-16-D (article code DL-V-002-A1) combines the benefits of flexible sensor inputs and precise data acquisition with an intuitive operation and seamless connectivcity to industrial Cloud solutions. Measurement data is accessible at any time and from anywhere in the Industrial Internet of Things. The datalogger has 16 differential analog inputs with 24 bit resolution. The inputs can be used for current and voltage acquisition or for the direct connection of thermocouples, PT50/100/500/1000 resistance thermometers and and strain gauges. At the same time the dydaqlog datalogger is a versatile webserver. All functions are configured and managed using a modern web interface in a browser. Measurement data can be displayed online or offline. As communication interface the datalogger uses WLAN or Ethernet/LAN. The MQTT protocol is supported for data transmission into a Cloud.

  • 16 differential analog inputs with 24 bit resolution and a sample rate of max. 20 Hz per channel.
  • Input: Voltage, current, thermocouple (J, K, T, E, R, S, B, N), PT100/1000, resistors, resistive bridge trasnduvers (6-wire).
  • Input voltage ranges: ±10 V, ±5 V, ±3 V, ±1.6 V, ±800 mV, ±400 mV, ±200 mV, ±100 mV. Input current ranges: 0...20 mA.
  • Digital inputs: 6, opto-coupled.
  • Digital outputs: 6, electronic relays.
  • Processor: Quadcore 1.4 GHz ARM Cortex-A53 with integrated webserver.
  • Data storage: MicroSD Card internal, 1 GSamples.
  • Power supply: 10...36 VDC (external power supply adaptor incl.).

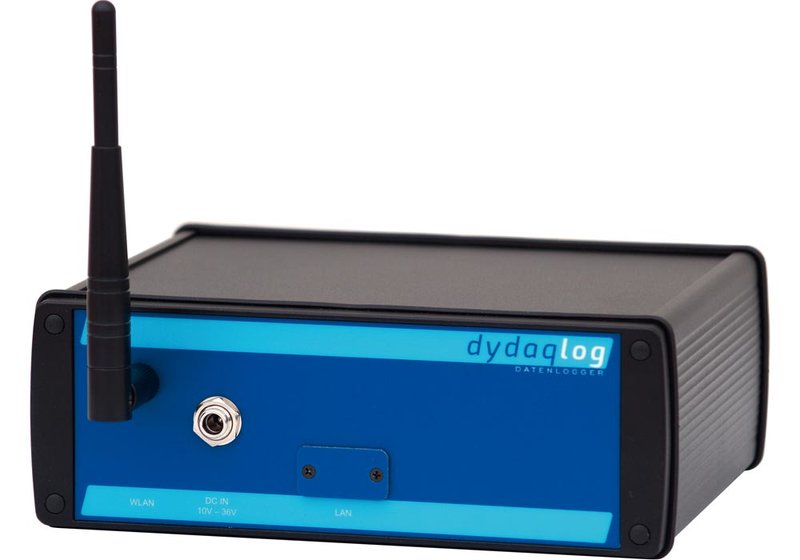

  • Host interfaces: WLAN, Ethernet/LAN.
  • Configuration interface: WLAN hotspot. Web interace for configuration and measurement data display.
  • Access to industrial Cloud solutions with MQTT protocol.
  • Alarms can trigger actions like switching of digital outputs, sending e-mails or short messages.
  • Rugged Aluminum enclosure, full IP65 protection.

Model Overview

Modeldydaqlog DL-160-16-D
Analog inputsNumber16 differential; all analog inputs can be configured individually
A/D converterSigma-Delta; resolution 24 bit; sample rate (max.) per channel 20 Hz
RangesVoltage: ±10 V, ±5 V, ±3 V, ±1.6 V, ±800 mV, ±400 mV, ±200 mV, ±100 mV,
Current: 0...20 mA,
Input resistance 1 MΩ
CouplingDC
Sensor connectionThermocouples type B, E, J, K, N, R, S, T, PT50, PT100, PT500, PT1000, resistive bridge transducer, eg. strain gauges.
Connection of external sensors and I/O-modules via MQTT or Modbus
Digital inputsNumber6, opto-coupled
LevelTTL, Low: <0.8 V, High: >2.4 V (max.)
Digital outputsNumber6 electronic relays
Switching voltage40 V max. at 1 A
Counter inputsChannels6 (alternative usage of digital inputs)
Input frequencymax. 1 kHz
ProcessorARM Cortex A-53 quad core 1.4 GHz mikroprozessor with integrated webserver; web interface for configuration and data display
Data storageMicroSD Card internal; for 1 GSamples of measurement data
Other featuresThe measurement channels can be calculated online or monitored for threshold values/limits. Alarms can trigger actions like switching of digital outputs or sending e-mails
Host interfaceWLAN (antenna incl.) 802.11 b/g/n/ac (2.4 and 5 GHz,
LAN/Ethernet 1x Gigabit RJ45),
for configuration and data transmission; access to industrial Cloud solutions with MQTT protocol. Measurement data can be stored in internal memory, transmitted to a server or a data Cloud.
Option, on request: Cellular Radio 4G/LTE - configuration and operation via web interface, transmission of messages, e-mails, data transmission via MQTT, FTP
Power supply10...36 VDC (external power supply adaptor incl.)
Operating temperature0...+50°C
EnclosureAluminum, full IP65 protection; available as optional accessories: Transportation cases, holding clamp for DIN-rail
Dimesions (mm)211 x 70 x 209, 1.7 kg

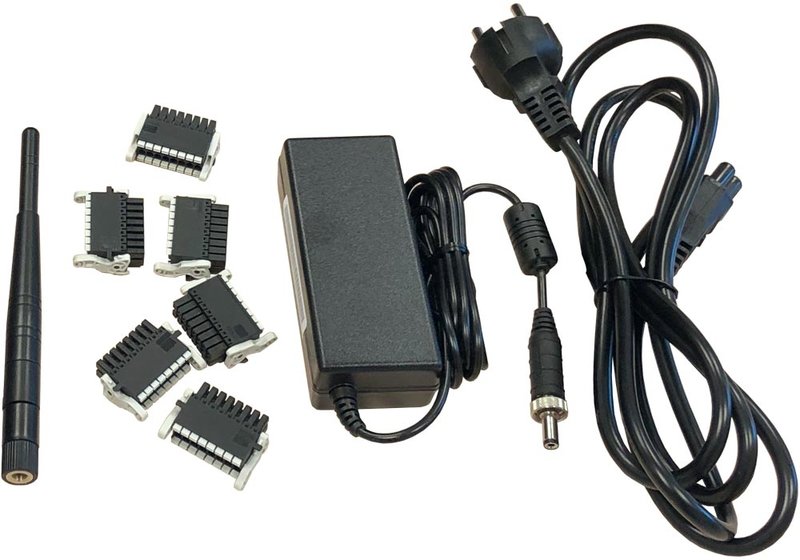

Included: Datalogger dydaqlog (DL-160-16-D/DL-V-004-A1), WLAN antenna, external power supply adaptor.

Optional accessories: DIN-rail mountable holding clamp, transportation case.


Information on product safety:

Manufacturer:
gbm Gesellschaft für Bildanalyse und Messwerterfassung mbH, Lehmkuhlenweg 16, 41065 Mönchengladbach/DEU
www.dydaqlog.de
