Rigol DS2000A Series "Economy" Oscilloscopes, 2 Channels, up to 300MHz

Benefits of the Rigol DS2000A Series UltraVision Oscilloscopes with 2 GS/s

• 2-channel oscilloscope up to 300 MHz bandwidth, 2 GS/s max. sample rate.
• Deep memory 56 Mpts standard.
• Signal update rate 50,000 wfms/s.

Rigol DS2000A Series "Economy" Oscilloscopes, 2 Channels, up to 300MHz Bandwidth

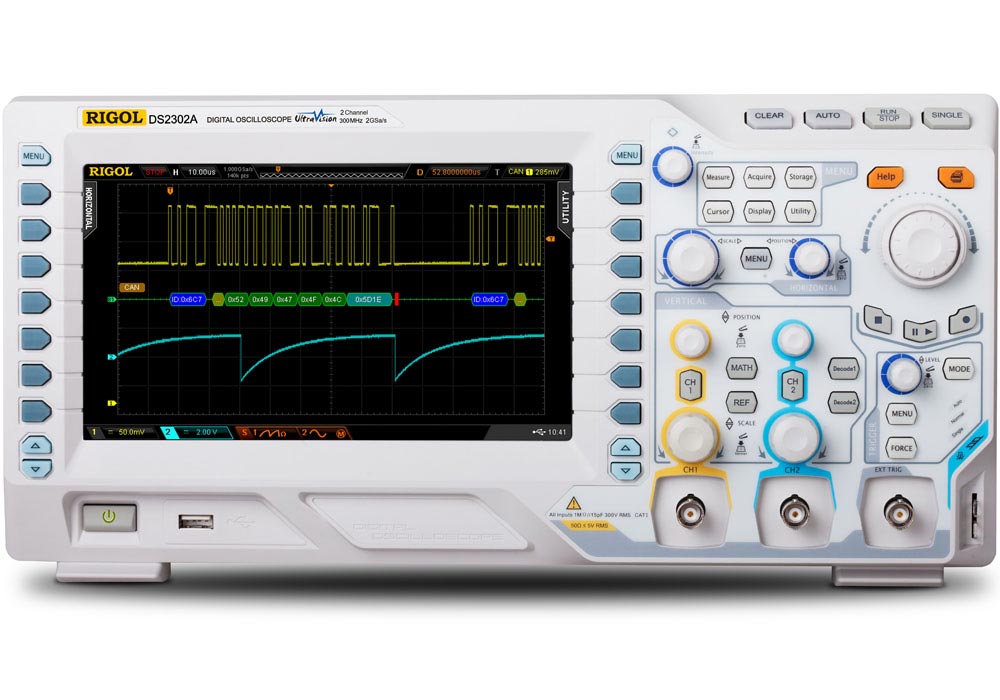

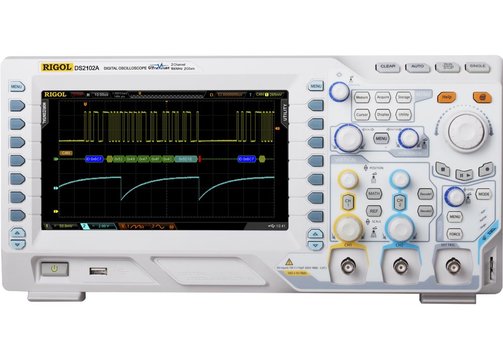

Models Rigol DS2102A, DS2202A, DS2302A

The Rigol MSO2000A series are the mainstream digital scopes to meet the customer's applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. The devices are fast and versatile scopes covering frequencies up to 100, 200, or 300 MHz with two analog channels, and a wide vertical range (500 µV/Div...10 V/Div) to deliver an extremely low noise floor to help you capture smaller signals. Add a 2 GS/s max. sample rate and 56 Mpts of standard memory depth to its user-friendly interface and 8"/20 cm WVGA display and you've got a scope that outperforms the competition in a wide range of bench-top and field applications. The models "-S" have a built-in 2 channel source.

• 2 analog channels:
  • Bandwidth up to 100, 200, or 300 MHz.
  • Max. sample rate 2 GS/s.
  • UltraVision technology:
    Deep memory,
    high waveform capture rate,
    hardware based realtime waveform record and replay up to 65,000 frames,
    multi-level intensity grading display.
  • 56 Mpts memory depth standard.
  • Waveform capture rate up to 50,000 waveforms per sec.
  • A variety of trigger and serial bus decording functions (RS232, I2C, SPI, CAN).
  • Former options now pre-installed/incl.: MEM-DS2000 (56 Mpts memory), AT-DS2000 (advanced trigger), SD-DS2000 (serial decoder), CAN-DS2000 (CAN decoding).
• Clear 8"/20 cm WVGA display.

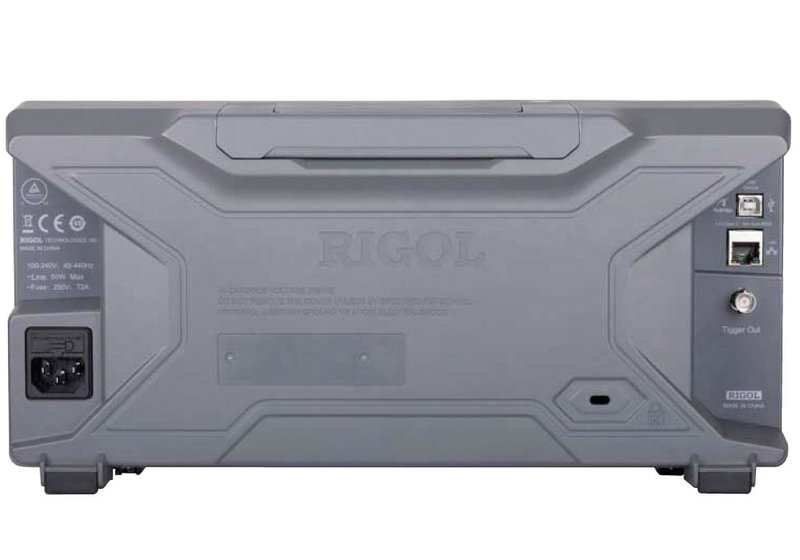

• Interfaces: USB, Ethernet/LAN/LXI-C. Printer: PictBridge compatible.
• Compact and portable.

Model Overview

---
