Reduced special price until 2024-12-02 (compared to list price) for DP932U!

Benefits of the DP900 3-Channel Power Supplies up to 210 W

3 isolated independent channels up to max. 32 V/3 A; max. 210 W total.
Excellent values for accuracy, ripple, speed etc.
Touch screen and interfaces LAN, USB, digital I/O (depending on variant).

Rigol DP900 Series Programmable Linear DC Power Supplies

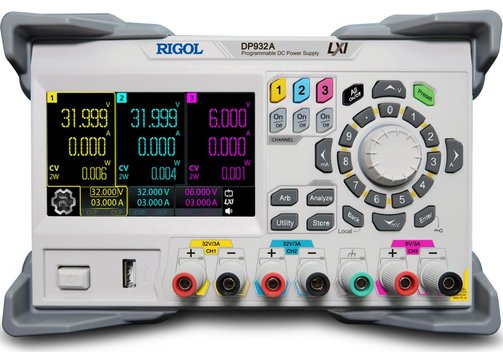

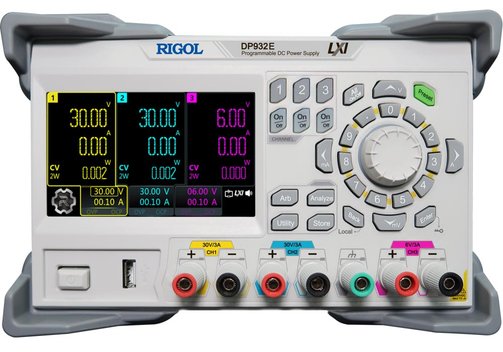

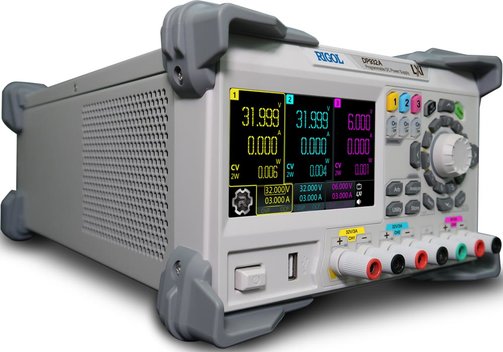

Rigol DP932A, DP932U, DP932E Power Supplies

The Rigol DP900 series includes three variants of a 3-channel programmable linear DC power supply. The variants differ in their technical specifications and features: The standard DP932A model and the educational/university DP9000U model (with safety sockets) offer 32 V/3 A, 32 V/3 A, and 6 V/3 A ranges. The DP932E model (e-commerce version) has 30 V/3 A, 30 V/3 A, and 6 V/3 A ranges. The total power is 210 W max. Common to all models is a touch screen, the possibility of internal serial/parallel connection of channel 1 and 2, protection functions (OVP, OCP, OTP) and excellent ripple and noise of only &let;350 µV_RMS/2 mV_pp.

Programmable linear DC power supplies.
3 isolated independent channels up to 32 V/3 A, 32 V/3 A, 6 V/3 A.
Internal channel serial-parallel switching of channel 1 and 2.
Command processing time <10 ms.
Low ripple and noise <350 mV_RMS/2 mV_pp.
Minimum dwell time in arbitrary editor 100 ms (standard version A, option verion U). Max. 512 arbitrary points and various fixed basic waveforms.

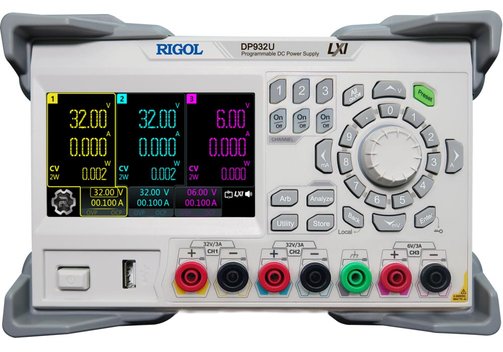

Model DP900U with safety sockets on the front panel.
Protection against over voltage (OVP), over current (OCP), over temperature (OTP).
4.3"/10.8 cm color LCD touch screen.

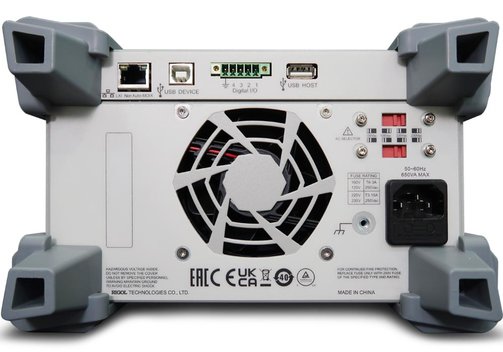

Interfaces: LAN/Ethernet, USB and digital I/O (depending on variant).
Available in 3 variants with different features/price.

Model Overview

Model	Rigol DP932A	Rigol DP932U	Rigol DP932E
Application	Standard	University/Education	E-commerce
Display resolution	1 mV/1 mA	10 mV/1 mA (upgradeable)	10 mV/10 mA (upgradeable)
Minimum dwell time between 2 arbitrary points	100 ms	1000 ms (upgradeable)	-
Interfaces	USB host and device, LAN, digital I/O	USB host and device, LAN, optional digital I/O	USB host and device, LAN
Safety jacks on front panel	-	Available	-
Other features	Fully equipped, no additional options required	Available options: DP900-ARB, DP900-HIRES, DP900-DIGITALIO	Available option: DP900-HIRES
Channels	3	3	3
DC output	Channel 1: 0...32 V/0...3 A; channel 2: 0...32 V/0...3 A; channel 3: 0...6 V/0...3 A		Channel 1: 0...30 V/0...3 A; channel 2: 0...30 V/0...3 A; channel 3: 0...6 V/0...3 A
OVP/OCP	Channel 1: 1 mV...35.2 V/1 mA...3.3 A; Channel 2: 1 mV...35.2 V/1 mA...3.3 A; channel 3: 1 mV...6.6 V/1 mA...3.3 A		Channel 1: 1 mV...33 V/1 mA...3.3 A; channel 2: 1 mV...33 V/1 mA...3.3 A; channel 3: 1 mV...6.6 V/1 mA...3.3 A
Internal channel-serial-parallel mode	Serial mode voltage 64 V, parallel mode current 6 A
Output ripple and noise	Normal mode, voltage <350 mV_RMS/2 mV_pp, current <2 mA_RMS
Display	4.3"/10.8 cm color LCD touch screen
Dimensions (mm)	239 x 157 x 419; 9.15 kg; rack mount kit: 3U, ½-rack size

Included: Rigol power supply DP 900 in one of the versions, power cable, USB cable, spare fuse, 2 pairs of connection leads (10 A).

Rigol DP Series Family Overview

Series	Rigol DP800	Rigol DP900	Rigol DP2000
Number of channels	1/2/3	3	3
Channel-to-channels isolation	Partially isolated	Fully isolated	Fully isolated
Auto series/parallel connection	-	✓ (channel 1, channel 2)	✓ (channel 1, channel 2)
Display	3.5"/8.6 cm screen	4.3"/10.8 cm touch screen	4.3"/10.8 cm touch screen
Total power	140 W to 200 W	210 W	222 W
Output ripple and noise	<350 µV_RMS/2 mV_pp, <2 mA_RMS	<350 µV_RMS/2 mV_pp, <2 mA_RMS	<350 µV_RMS/2 mV_pp, <2 mA_RMS
Programming accuracy 12 months (25°C ±5°C)	Channel 1, channel 2: 0.05% + 20 mV/0.2% + 5 mA; channel 3: 0.1% + 5 mV/0.2% + 5 mA (DP832A)	Channel 1, channel 2: 0.05% + 10 mV (voltage readback/programming accuracy 12 months for DP932U: 0.05% + 20 mV)/0.2% + 5 mA; channel 3: 0.1% + 5 mV/0.2% + 5 mA	Channel 1, channel 2: 0.03% + 8 mV/0.15% + 5 mA; channel 3: 0.04% + 4 mV/0.15% + 10 mA
Readback accuracy 12 months (25°C ±5°C)	Channel 1, channel 2: 0.05% + 10 mV/0.15%+5 mA; channel 3: 0.1% + 5 mV/0.15% + 5 mA (DP832)	Channel 1, channel 2: 0.05% + 10 mV (voltage readback/programming accuracy 12 months for DP932U: 0.05% + 20 mV)/0.15% + 5 mA; channel 3: 0.1% + 5 mV/0.15% + 5 mA	Channel 1, channel 2: 0.05% + 8 mV/0.15% + 5 mA, 0.25% + 28 µA (low range current); channel 3: 0.08% + 3 mV/0.15% + 10 mA
Programming resolution	1 mV/1 mA (DP832)	1 mV/1 mA	Channel 1, 2: 1 mV/0.1 mA; channel 3: 1 mV/1 mA
Readback resolution	0.1 mV/0.1 mA (DP832A)	0.1 mV/0.1 mA	0.1 mV/0.1 mA (low range current: 1 µA)
Command processing time	118 ms	10 ms	10 ms
Command processing time	(Time required for the output to change accordingly after receiving the APPLy and SOURce commands
Minimum dwell time	1000 ms	100 ms (the highest level)	1 ms (the highest level)
Interface	USB/LAN/RS232/digital-I/O; optional USB-GPIB	USB/LAN/digital-I/O	USB/LAN/RS232/digital-I/O; optional GPIB (can be installed in place of the RS232 interface; RS232 and GPIB cannot be used concurrently)
Rear output terminals	Available on DP811 and DP813 only (for 1 channel )	-	Available (for 3 channels)
Dimension (mm)	239 x 157 x 418; 9.75 kg to 10.5 kg	239 x 157 x 419; 9.15 kg	239 x 157 x 419; 9.95 kg
