Digilent ADP5400 4-Channel Analog Discovery Pro Multifunctional Instrument, 350/500MHz
Description
Accessories
Files/Downloads
Benefits of the ADP5470 up to 1.5 GS/s and ADP5490 up to 2 GS/s
- Powerful multifunctional instrument, 4 inputs 350 or 500 MHz, 1 output 20 MHz, 32 logic analyzer digital inputs, 8 digital-I/O.
- Oscilloscope/MSO, wavefom generator, spectrum/network/impedance analyzer, DMM.
- Compact module, USB 2.0 and Ethernet PC-connectivity.

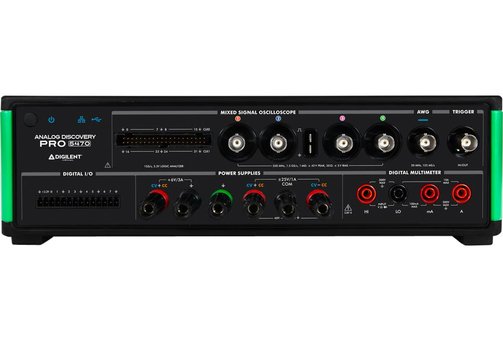

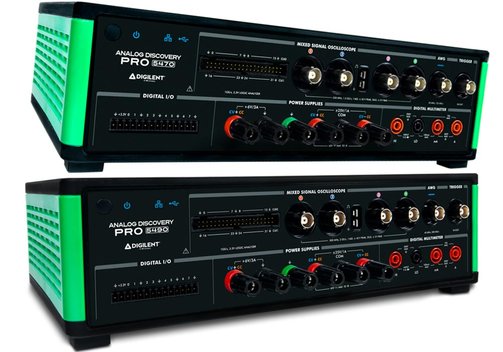

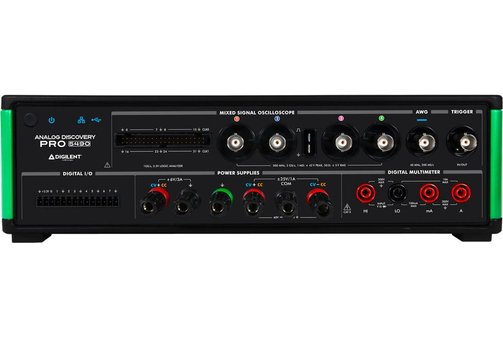

Digilent ADP5400 4-Channel Analog Discovery Pro Multifunctional Instrument, 350/500 MHz
The Digilent ADP5470 and ADP5490 Analog Discovery Pro are all-in-one multifunctional instruments combining a gigasample mixed-signal oscilloscope (MSO), waveform generator (function generator up to 20 MHz, and AWG), programmable power supply, and 5½ digit DMM. The devices are connected to a PC via USB 2.0 and/or LAN/Ethernet. They are supported by the WaveForms software application, as well as an SDK for custom applications.
- 4 analog inputs, 2 analog outputs, 34 digital/logic analyzer inputs, 8 digital-I/O-lines and more.
- Combines oscilloscope, logic analyzer/MSO, waveform generator, static I/O , power supplies, spectrum analyzer, DMM, network analyzer, and impedance analyzer in one USB/LAN device.
- Compact and rugged design.

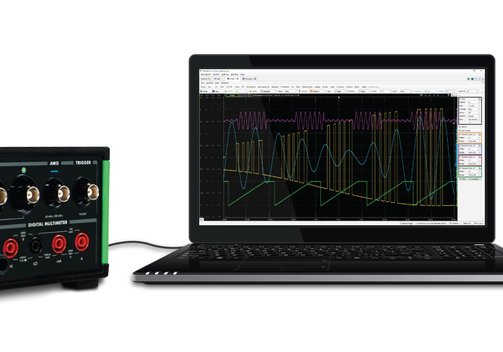

- Supported by the WaveForms software application and SDK.
- PC-connectivity: USB 2.0 HiSpeed, LAN/Ethernet.
- Line-powered.
Supported Instruments
| Supported instruments | Main features | |
| ADP5470 | ADP5490 | |
| Oscilloscope | 4 channels, 8 bit, 350 MHz, 1.5 GS/s per channel, memory depth up to 1 MS/channel; MSO/mixed-signal: 34 digital channels, 1 GS/s, record length min 4 kS/typ. 1 MS | 4 channels, 8 bit, 500 MHz, 2 GS/s per channel, memory depth up to 1 MS/channel; MSO/mixed-signal: 34 digital channels, 1 GS/s, record length min 4 kS/typ. 1 MS |
| Waveform generator | Function and arbitrary waveform generator, 1 channel, resolution 14 bit, sample rate 125 MS/s, standard waveforms: Sine (20 MHz), square (20 MHz), ramp/triangle (20 MHz), DC, arbitrary (1 MS points); bandwidth up to 20 MHz | Function and arbitrary waveform generator, 1 channel, resolution 14 bit, sample rate 200 MS/s, standard waveforms: Sine (20 MHz), square (20 MHz), ramp/triangle (20 MHz), DC, arbitrary (1 MS points); bandwidth up to 40 MHz |
| DMM | AC/DC voltage, AC/DC current, resistance, diode, continuity; 5½ digits, sample rate 5 S/s | |
| Spectrum analyzer | DC to maximum bandwidth of scope; display modes magnitude, average, peak hold, min hold, count; windowing functions rectangular, triangular, Hamming, Hann, cosine, Blackman-Harris, flat top, Kaiser | |
| Logic analyzer | 34, see oscilloscope, MSO/mixed-signal | |
| Static-I/O | 8, see specifications below, digital-I/O | |
| Protocol analyzer | Shares digital input/output channels with the static-I/O instrument; SPI and I2C, host controller mode and custom only | |
| Network analyzer | 10 Hz...350 MHz, up to 10,001 samples; display modes: Magnitude, phase; plots: Bode, time, FFT, Nichols, Nyquist | 10 Hz...500 MHz, up to 10,001 samples; display modes: Magnitude, phase; plots: Bode, time, FFT, Nichols, Nyquist |
| Impedance analyzer | 10 Hz...20 MHz, up to 10,001 samples; display modes: Magnitude, phase; plots: Bode, time, FFT, Nichols, Nyquist, Custom; measurements: Impedance, admittance, inductance, capacitance, and more | 10 Hz...40 MHz, up to 10,001 samples; display modes: Magnitude, phase; plots: Bode, time, FFT, Nichols, Nyquist, Custom; measurements: Impedance, admittance, inductance, capacitance, and more |
| Power supplies | 3, see specifications below | |
Model Overview
| Model | ADP5470 | ADP5490 | |
| 411-002 | 411-003 | ||
| Analog inputs | Number | 4, BNC, single-ended, input impedance 1 MΩ||15 pF or 50 Ω | 4, BNC, single-ended, input impedance 1 MΩ||20 pF or 50 Ω |
| Functions | Oscilloscope, network analyzer, spectrum analyzer, impedance analyzer | ||
| Analog bandwidth | 350 MHz at -3 dB | 500 MHz at -3 dB | |
| A/D conversion | Resolution 8 bit, max. sampling rate 1.5 GS/s per channel, max. record length 1 MS per channel | Resolution 8 bit, max. sampling rate 2 GS/s per channel, max. record length 1 MS per channel | |
| Max. input range | 40 Vpeak-to-peak; AC or DC coupling | ||
| Accuracy | ±2% of input/±1% full scale | ||
| Digital multimeter | Functions | AC/DC voltage, AC/DC current, resistance, diode, continuity | |
| Resolution | 5½ digits | ||
| A/D convesion | Sample rate 5 S/s | ||
| Input protection | Resistance, diode up to 300 VDC; DC and AC voltage up to 300 VDC or 265 VACRMS 400 VACpeak | ||
| Maximum common-mode voltage | 300 VDC or ACRMS | ||
| Analog outputs | Number | 1, BNC | |
| Functions | Waveform generator, impedance analyzer, network analyzer | ||
| Analog bandwidth | ±0.3 dB to 20 MHz | ±0.3 dB to 40 MHz | |
| D/A conversion | Resolution 14 bit, max. sampling rate 125 MS/s, buffer size up to 1 MS | ||
| AC amplitude | Max. ±12 V | ||
| Digital inputs | Number | 34 | |
| Functions | Logic analyzer | ||
| Input characteristics | Voltage 0...+5 V; threshold 0...+2 V, max. sampling rate 15 kS/s...1 GS/s, typical record length 1 MS/min. 4 kS | ||
| Digital-I/O | Number | 8 | |
| Functions | Static I/O instrument, protocol analyzer | ||
| Levels | Input logic standard 5 V compatible TTL; output logic standard 3.3 V LVTTL, driver strength 4 mA | ||
| Triggering | Source | Oscilloscope analog channels, function generator start, digital inputs, digital-I/O, power line frequency, external trigger | |
| Modes | Normal, auto, force, single; analog trigger: Edge with hysteresis; digital trigger: Edge, level, pattern, glitch | ||
| External trigger | 5-V compatible TTL input or 3.3-V LVLTTL output | ||
| Additonal features | Math channels, automatic measurements | ||
| Power supplies | DC power supplies: 0...+6 V variable/3 A max. current; 0...+25 V variable/1 A max. current (isolated); 0...-25 V variable/1 A max. current (isolated) | ||

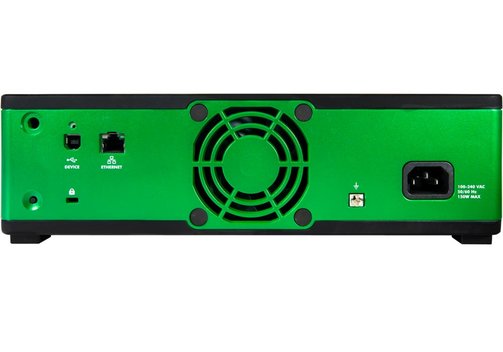

| Interfaces | USB 2.0 HiSpeed to PC; LAN/Ethernet 1000 Base-TX (full-duplex), 100 Base-TX (full- or half-duplex), 10 Base-T (full- or half-duplex), communication rates 10/100/1000 Mbps, auto-negotiated, RJ-45 | ||
| Dimensions (mm) | 305 x 203 x 94; 3.13 kg | ||
| Software | WaveForms software application, SDK (supports Python, C, LabVIEW and others) | ||

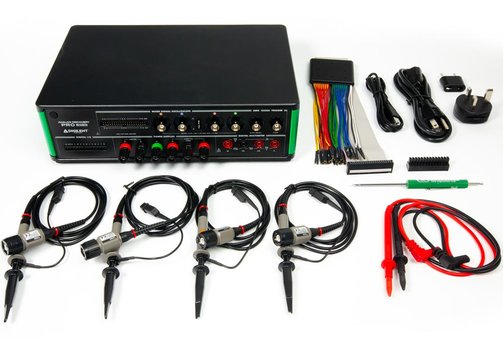

Included: ADP 5470 (411-002) or AD P5490 (411-003), USB A to B cable, 1x 14 digital-I/O screw terminal adaptor, 2x 20 logic analyzer MTE cable, 4x T2500 500 MHz x1/x10 oscilloscope probes, digilent screwdriver, 1x set of red and black DMM probes, IEC cable, with EU and UK adaptors.
Model Overview ADP5000 Series
| Model | ▸ADP5250 | ADP5470 | ADP5490 | |
| 411-001 | 411-002 | 411-003 | ||
| Analog inputs | Number | 2 | 4 | 4 |
| Sample rate | 500 MS/s dual, 1 GS/s single | 1.5 GS/s all | 2 GS/s all | |
| Bandwidth | 100 MHz | 350 MHz | 500 MHz | |
| Analog outputs | Number | 1 | 1 | 1 |
| Bandwidth | 20 MHz | 20 MHz | 40 MHz | |
| Arbitrary waveform generator | ✓ | ✓ | ✓ | |
| Logic analyzer | 34 inputs, 1 GS/s | 34 inputs, 1 GS/s | 34 inputs, 1 GS/s | |
| Digital-I/O | 8 | 8 | 8 | |
| Power supply output | 1 A at 6 V, 0.5 A at ±25 V each | 3 A at 6 V, 1 A at ±25 V each | 3 A at 6 V, 1 A at ±25 V each | |
| CAT II DMM | ✓ | ✓ | ✓ | |
| Interfaces | USB | USB, Ethernet | USB, Ethernet | |
