Digilent ADP5250 Analog Discovery Pro Oscilloscope, 100MHz
Description
Accessories
Files/Downloads
EOL/obsolete. ▸Click here to find replacement models.
Benefits of the ADP5250 up to 1 GS/s
- Powerful multifunctional instrument, 2 inputs 100 MHz, 1 output 20 MHz, 34 digital inputs, 8 digital-I/O.
- Oscilloscope/MSO, wavefom generator, spectrum/network/impedance analyzer, DMM.
- Compact module, USB 2.0 PC-connectivity.

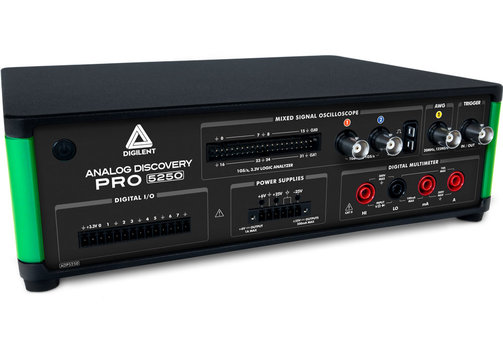

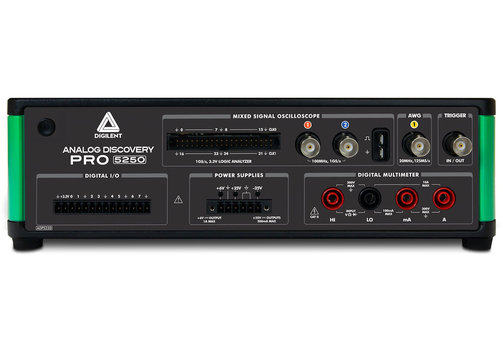

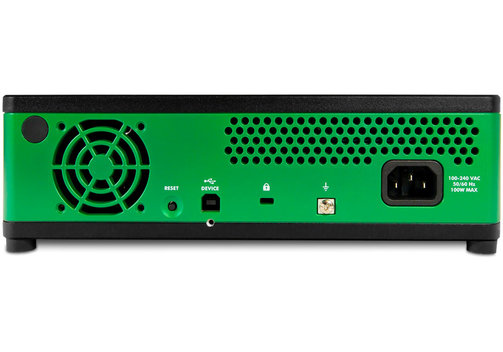

Digilent ADP5250 Analog Discovery Pro Multifunctional Instrument, 100 MHz
The Digilent ADP5250 Analog Discovery Pro is an all-in-one multifunctional instrument combining a 1 GS/s 100 MHz mixed-signal oscilloscope (MSO), waveform generator (function generator up to 20 MHz, and AWG), programmable power supply, and 5½ digit DMM. The device is connected to a PC via USB 2.0 and is supported by the WaveForms software application, as well as an SDK for custom applications.
- Combines oscilloscope, logic analyzer/MSO, waveform generator, static I/O , power supplies, spectrum analyzer, DMM, network analyzer, and impedance analyzer in one USB device.
- Compact and rugged design.
- Supported by the WaveForms software application and SDK.
- PC-connectivity: USB 2.0 HiSpeed.
- Line-powered.
Supported Instruments
| Supported instruments | Main features | |
| Oscilloscope | 2 channels, 8 bit, 100 MHz, 1 GS/s (single channel), memory depth up to 1 MS/channel; MSO/mixed-signal: 34 digital channels, 1 GS/s | |
| Waveform generator | Function and arbitrary waveform generator, 1 channel, resolution 14 bit, sample rate 125 MS/s, standard waveforms: Sine (20 MHz), square (20 MHz), ramp/triangle (20 MHz), DC, arbitrary (1 MS points); bandwidth up to 20 MHz | |
| DMM | AC/DC voltage, AC/DC current, resistance, diode, continuity; 5½ digits, sample rate 5 S/s | |
| Spectrum analyzer | DC to maximum bandwidth of scope; display modes magnitude, average, peak hold, min hold, count; windowing functions rectangular, triangular, Hamming, Hann, cosine, Blackman-Harris, flat top, Kaiser | |
| Logic analyzer | 34, see oscilloscope, MSO/mixed-signal | |
| Static I/O | 8, see specifications below, digital-I/O | |
| Protocol analyzer | Shares digital input/output channels with the static-I/O instrument; SPI and I2C, host controller mode and custom only | |
| Network analyzer | Frequency range 20 Hz...100 MHz, up to 10,001 Samples; display modes: Magnitude, phase; plots: Bode, time, FFT, Nichols, Nyquist | |
| Impedance analyzer | 20 Hz...20 MHz, up to 10,001 samples; display modes: Magnitude, phase; plots: Bode, time, FFT, Nichols, Nyquist, Custom; measurements: Impedance, admittance, inductance, capacitance, and more | |
| Power supplies | see specifications below | |
Model Overview
| Model | ADP5250 | ADP5250 BNC Probe Bundle | |
| 411-001 | 471-058 | ||
| Analog inputs | Number | 2, BNC, single-ended, input impedance 1 MΩ||20 pF | |
| Functions | Oscilloscope, network analyzer, spectrum analyzer, impedance analyzer | ||
| Analog bandwidth | 100 MHz at -3 dB | ||
| A/D conversion | Resolution 8 bit, max. sampling rate 1 GS/s (single channel), 500 MS/s per channel in dual channel mode, max. record length 1 MS per channel | ||
| Max. input range | 40 Vpeak-to-peak; AC or DC coupling | ||
| Accuracy | ±2% of input/±1% full scale | ||
| Digital multimeter | Functions | DMM/digital multimeter: AC/DC voltage, AC/DC current, resistance, diode, continuity | |
| Resolution | 5½ digits | ||
| A/D convesion | Sample rate 5 S/s | ||
| Input protection | Resistance, diode up to 300 VDC; DC and AC voltage up to 300 VDC or 265 VACRMS 400 VACpeak | ||
| Maximum common-mode voltage | 300 VDC or ACRMS | ||
| Analog outputs | Number | 1, BNC | |
| Functions | Waveform generator, impedance analyzer, network analyzer | ||
| Analog bandwidth | ±0.3 dB to 20 MHz | ||
| D/A conversion | Resolution 14 bit, max. sampling rate 125 MS/s, buffer size up to 1 MS | ||
| AC amplitude | Max. ±12 V | ||
| Digital inputs | Number | 34 | |
| Functions | Logic analyzer | ||
| Input characteristics | Voltage 0...+5 V; threshold 0...+2 V, max. sampling rate 100 MS/s, typical record length 1 MS | ||
| Digital-I/O | Number | 8 | |
| Functions | Static I/O instrument | ||
| Levels | Input logic standard 5 V compatible TTL; output logic standard 3.3 V LVTTL; 4 mA drive strength | ||
| Triggering | Source | Oscilloscope analog channels, function generator start, digital inputs, digital-I/O, power line frequency, external trigger | |
| Modes | Normal, auto, force, single; analog trigger: Edge with hysteresis; digital trigger: Edge, level, pattern, glitch | ||
| External trigger | 5-V compatible TTL input or 3.3-V LVLTTL output | ||
| Additional features | Math channels, automatic measurements | ||
| Power supplies | DC power supplies: 0...+6 V variable/1 A max. current; 0...+25 V variable/500 mA max. current (isolated); 0...-25 V variable/500 mA max. current (isolated) | ||
| Interface | USB 2.0 HiSpeed to PC | ||
| Dimensions (mm) | 254 x 191 x 78; 2.05 kg | ||
| Software | WaveForms software application, SDK (supports Python, C, LabVIEW and others) | ||

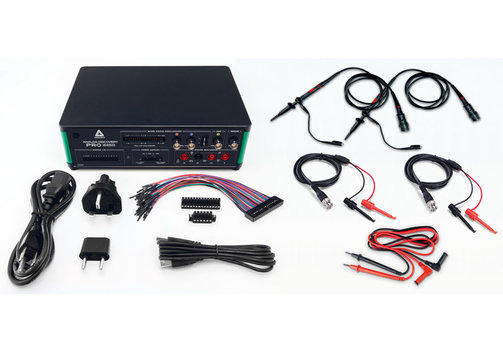

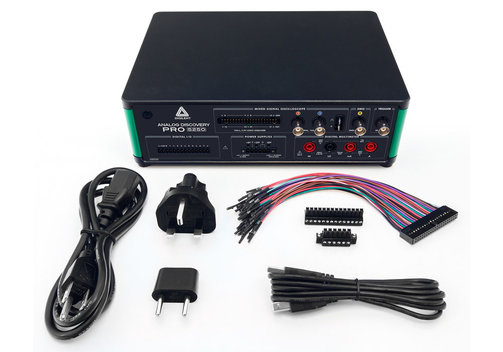

Included: Multifunctional instrument ADP 5250, USB A-to-B cable, 1x14 digital I/O screw terminal adaptor, 1x6 power supply screw terminal adaptor, 2x18 logic analyzer MTE cable, US IEC cable, EU and UK adaptor; bundle 471-058 additional: BNC probes.
