DAQM908A 40-Channel Armature MUX Module for the Keysight DAQ970A

878,22
including VAT free shipping (Germany)
min Quantity
1 piece
Unit price
base price
Ready for dispatch. Delivery Time ~1-3 workdays
Ready for dispatch. Delivery Time ~1-3 workdays
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Accessories
Files/Downloads

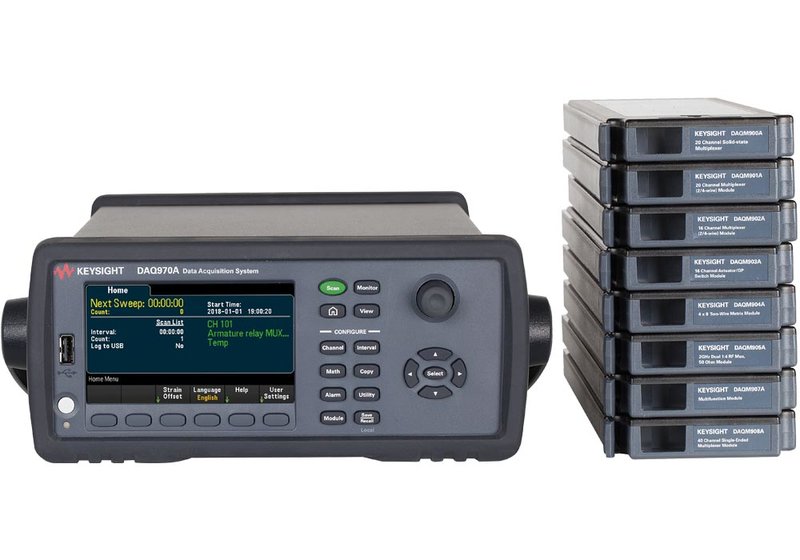

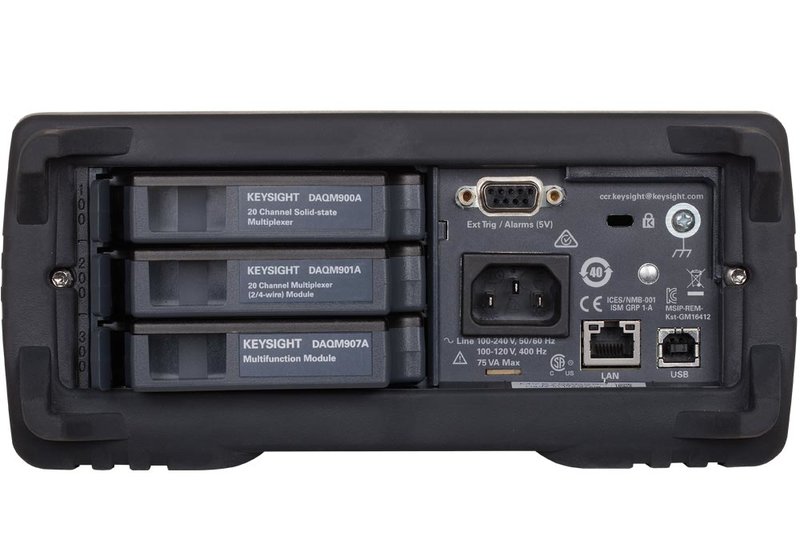

Modules for the Keysight DAQ970A/973A DAQ-System

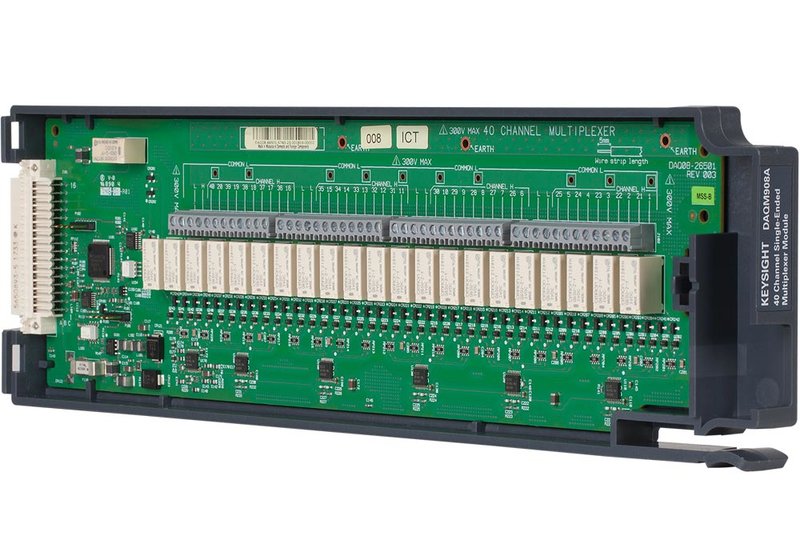

DAQM908A 40-Channel Armature MUX Module

With the DAQ970A/973A you can configure your individual "tailor-made" DAQ and switching device - the ideal solution for multi-channel measurement and test systems. As accessories for the mainframe DAQ970A/973A, select up to three module types according to your application requirements:

Model Overview

Model Functions
▸DAQM900A20-channel SSM solid state multiplexer
▸DAQM901A20-channel armature multiplexer + 2 current channels
▸DAQM902A16-channel reed multiplexer
▸DAQM903A20-channel actuator/GP switch
▸DAQM904A4x 8 matrix
▸DAQM905ADual 4-channel 50 Ω RF multiplexer
▸DAQM907AMultifunction module: Two 8 bit digital-I/O ports (42 V), 26 bit event counters, two 16 bit analog outputs (±12 V) and two voltage/current sense
▸DAQM908A40-channel armature multiplexer
▸DAQM909A4-channel digitizer, 4 simultaneous, differential inputs, 24 bit 800 kS/s sampling, 36 Vpk
▸DAQM919A20-channel low voltage multiplexer

Module Overview in Detail

Model▸DAQM900A▸DAQM901A▸DAQM902A▸DAQM903A▸DAQM904A▸DAQM905A▸DAQM907A▸DAQM908A▸DAQM909A▸DAQM910A
Module typeMultiplexer, relay type:
2-wire solid state
(4-wire selectable)
Multiplexer, relay type:
2-wire armature
(4-wire selectable)
Multiplexer, relay type:
2-wire reed
(4-wire selectable)
Actuator/GP switch, relay type:
SPDT/form C
Matrix, relay type: 2-wire armatureRF multiplexer 50 Ω, common low (unterminated)Multifunction moduleMultiplexer, relay type:
1-wire armature
(common low)
Digitizer, 24 bit resolutionMultiplexer, relay type:
2-wire armature
(4-wire selectable)
Number of channels2020 + 2 current channels16204 x 8 matrixDual 42x 8-bit digital-I/O ports (open drain),
26-bit event counter (selectable input threshold),
2x 18-bit analog-outputs (max. 40 mA total output per frame)
40 single-ended4, differential20
Max. scan speed450 channels/s,
number of contacts: 2 or 4
80 channels/s,
number of contacts: 2 or 4
250 channels/s,
number of contacts: 2 or 4
120 channels/s120 channels/s60 channels/s-100 channels/s,
number of contacts: 1
800 kS/s80 channels/s,
number of contacts: 2 or 4
Bandwidth10 MHz10 MHz10 MHz10 MHz10 MHz2 GHzCounter: 100 kHz,
analog outputs: DC
10 MHz-10 MHz
Thermal offset<4 µV0 µV<4 µV<1 µV<1 µV<4 µV---0 µV
Thermocouple temperature sensor------
2-wire RTD temperature sensor------
4-wire RTD temperature sensor-------
Thermistor temperature sensor-------
Built-in CJC------
Max. volts/amperes120 V/20 mA300 V/1 A 300 V/50 mA 300 V/1 A300 V/1 A 42 V/0.7 ADigital-I/O: 42 V/400 mA,
counter: 42 V,
analog outputs:. ±12 V/12 mA
300 V/1 A36 VPeak 40 VPeak/1 A
2-wire Ohms-----
4-wire Ohms-----
Frequency-----
Period-----
AC/DC current-✓ (1 A max.)--------
Capacitance------
