CableEye M3Z-AEX Expansion Module for M3Z, 128 Additional Testpoints

New
976,99
including VAT free shipping (Germany)
min Quantity
1 piece
Unit price
base price
Item available at short notice. Delivery Time ~7-14 workdays
Item available at short notice. Delivery Time ~7-14 workdays
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Accessories
Files/Downloads

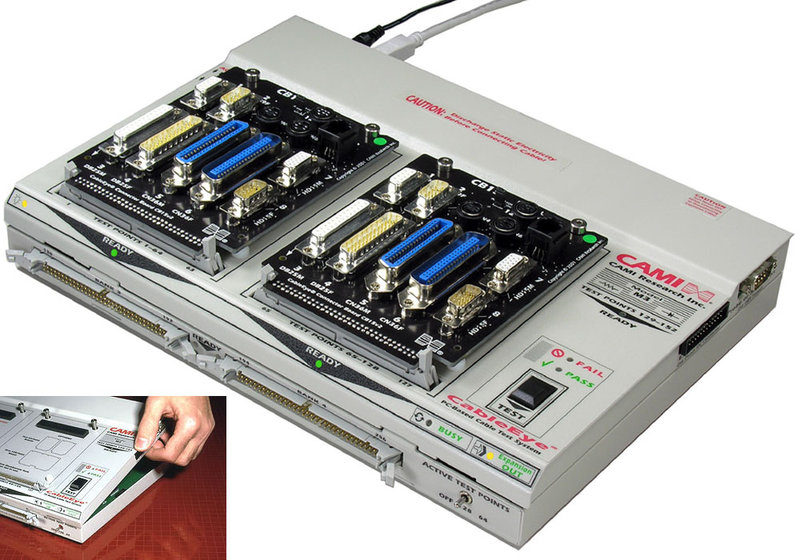

M3Z-AEX (CAMI-827) Expands CableEye M3Z with 128 Additional Testpoints

With the flexible CableEye M3Z test system you can easily test any cable or cable harnesses, for example for continuity, open wires, short circuits or miswiring. The CableEye can be controlled from a PC via USB.

  • Expansion module M3Z-AEX (CAMI-827) for the CabelEye system M3Z (CAMI-826).
  • 128 additional testpoints.
  • Use multiple modules to expand up to 2560 test points.

CableEye, All Models and Expansions

Low Voltage Testing
▸CAMI-814CableEye M2ZBasic system/entry level128 test points, not expandable. USB interface
▸CAMI-826CableEye M3ZEnhanced system 1152 test points, expandable to 2560. Can also measure resistance (0.1 ΩO...5 MΩ) and diodes. USB interface
▸CAMI-824CableEye M4Enhanced system 2152 test points, expandable to 2560. Can also measure resistance (0.02 Ω...6 MΩ), diodes, capacitance, twisted-pairing. USB interface
Low Voltage Testing Expansion Modules
▸CAMI-827M3Z-AEXExpansion module for the M3Z system (826), stackable version. 128 additional test points. Use more modules to expand the CableEye systems up to 2560 test points). Connected to the base system via ribbon cables.
▸CAMI-825M4-AEXExpansion module for the M4 system (824), stackable version. 128 additional test points. Use more modules to expand the CableEye systems up to 2560 test points). Connected to the base system via ribbon cables.
High Voltage Testing
▸CAMI-829CableEye HVXHVX systemApplies voltage up to 1500 VDC/1000 VAC, measures resistance between 0.1 Ω and 1 GΩ, 128 test points, expandable to 1024
▸CAMI-829ACableEye HVX-21Enhanced HVX systemApplies voltage up to 2100 VDC/1200 VAC, measures resistance between 0.1 Ω and 5 GΩ, 512+ test points
High Voltage Testing Expansion Modules
▸CAMI-828HVX-AEXExpansion module for HVX/CAMI-829: Adds 128 testpoints.
▸CAMI-828HVX-21-AEXExpansion module for HVX-21/CAMI-829A: Adds 128 testpoints.

CableEye is a modular system. A variety of optionens and connector boards are available. The webshop only shows a selection. Contact us for individual configurations or special connector board designs. Find a CB board compatibility chart and other overviews ▸here.
