CableEye M4-AEX Expansion Module for M4, 128 Additional Testpoints
Description
Accessories
Files/Downloads

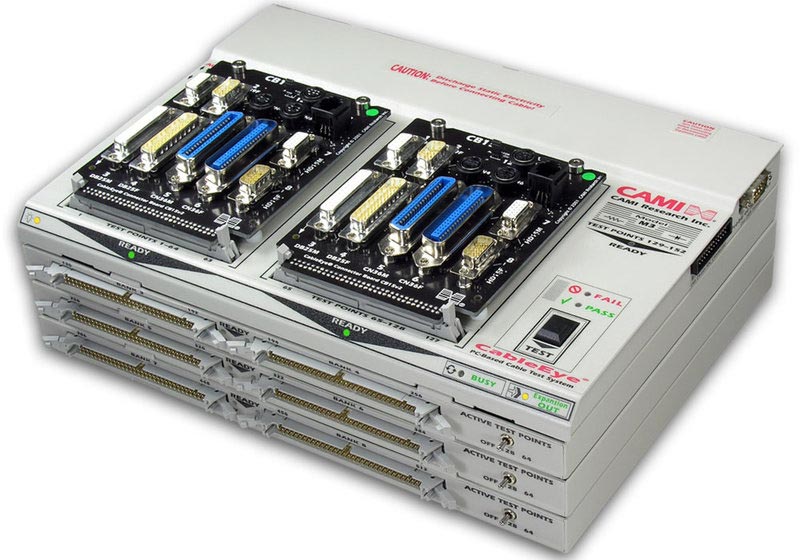

M4-AEX (CAMI-825) Expands CableEye M4 with 128 Additional Testpoints
With the enhanced CableEye M4 test system you can easily test any cable or cable harnesses, for example for continuity, open wires, short circuits or miswiring. The CableEye can be controlled from a PC via USB.
- Expansion module M4-AEX (CAMI-825) for the CabelEye system M4 (CAMI-824).
- 128 additional testpoints.

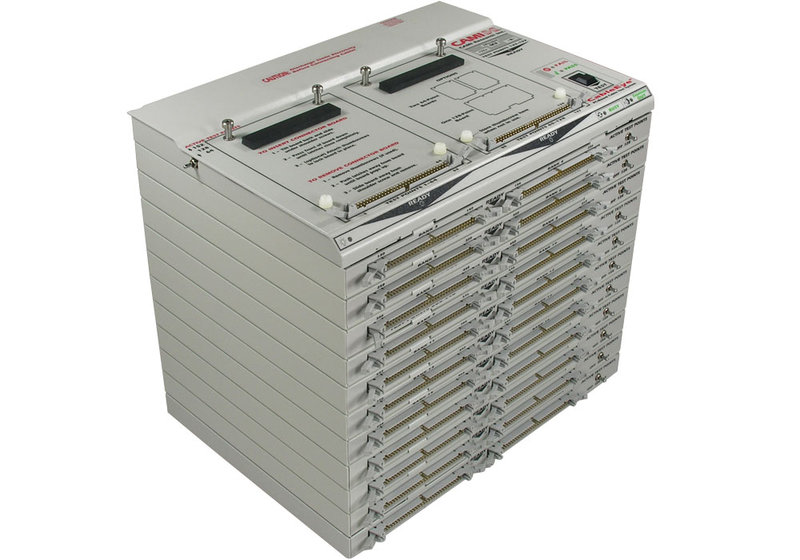

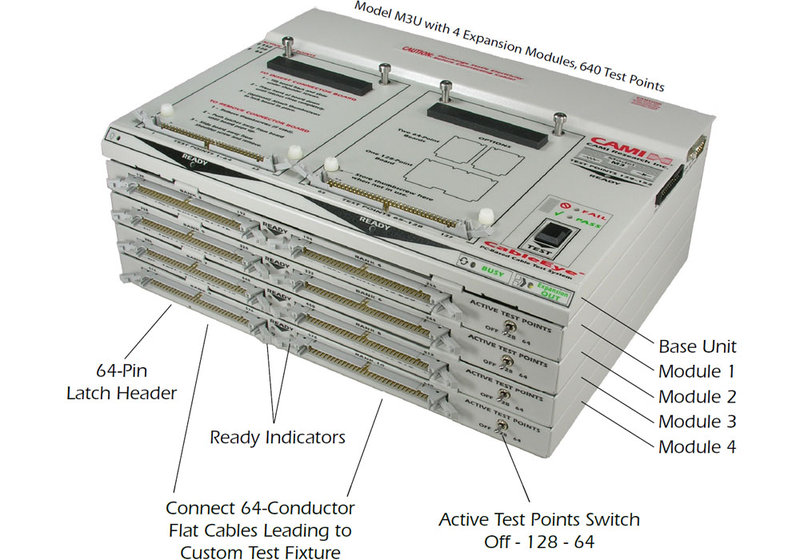

- Use multiple modules to expand up to 2560 test points.
CableEye, All Models and Expansions
| Low Voltage Testing | |||
| ▸CAMI-814 | CableEye M2Z | Basic system/entry level | 128 test points, not expandable. USB interface |
| ▸CAMI-826 | CableEye M3Z | Enhanced system 1 | 152 test points, expandable to 2560. Can also measure resistance (0.1 ΩO...5 MΩ) and diodes. USB interface |
| ▸CAMI-824 | CableEye M4 | Enhanced system 2 | 152 test points, expandable to 2560. Can also measure resistance (0.02 Ω...6 MΩ), diodes, capacitance, twisted-pairing. USB interface |
| Low Voltage Testing Expansion Modules | |||
| ▸CAMI-827 | M3Z-AEX | Expansion module for the M3Z system (826), stackable version. 128 additional test points. Use more modules to expand the CableEye systems up to 2560 test points). Connected to the base system via ribbon cables. | |
| ▸CAMI-825 | M4-AEX | Expansion module for the M4 system (824), stackable version. 128 additional test points. Use more modules to expand the CableEye systems up to 2560 test points). Connected to the base system via ribbon cables. | |
| High Voltage Testing | |||
| ▸CAMI-829 | CableEye HVX | HVX system | Applies voltage up to 1500 VDC/1000 VAC, measures resistance between 0.1 Ω and 1 GΩ, 128 test points, expandable to 1024 |
| ▸CAMI-829A | CableEye HVX-21 | Enhanced HVX system | Applies voltage up to 2100 VDC/1200 VAC, measures resistance between 0.1 Ω and 5 GΩ, 512+ test points |
| High Voltage Testing Expansion Modules | |||
| ▸CAMI-828 | HVX-AEX | Expansion module for HVX/CAMI-829: Adds 128 testpoints. | |
| ▸CAMI-828 | HVX-21-AEX | Expansion module for HVX-21/CAMI-829A: Adds 128 testpoints. | |
CableEye is a modular system. A variety of optionens and connector boards are available. The webshop only shows a selection. Contact us for individual configurations or special connector board designs. Find a CB board compatibility chart and other overviews ▸here.
