Aaronia BicoLOG Series Biconical Broadband Antennas 20MHz to 3GHz
Description
Files/Downloads
Benefits of the BicoLOG Transmission/Reception Antennas for Mobile and Stationary Use
- Biconical broadband antennas for the frequency range up to 20 MHz...3 GHz.
- For test and EMC testing ideal in combination with spectrum analyzers.
- Lightweight and compact.

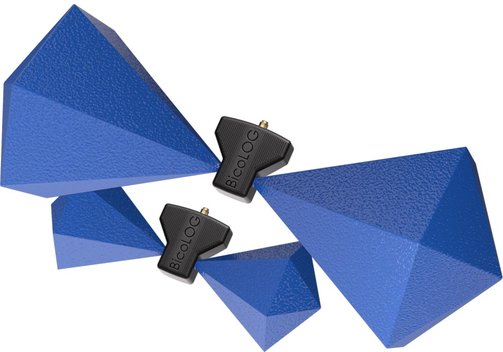

Aaronia BicoLOG Series Biconical Broadband Antennas 20 MHz to 3 GHz
The Aaronia BicoLOG series are excellent cost-effective antennas for low frequency measurements. They provide coverage of the complete radio and TV frequencies down to 20 MHz including Tetra/BOS and ISM434 as well as excellent gain performance for EMC measurements.
Model Overview
| Model | Dimensions (mm) | Design | Gain | RF connector | Frequency range | Tech. specifications | |

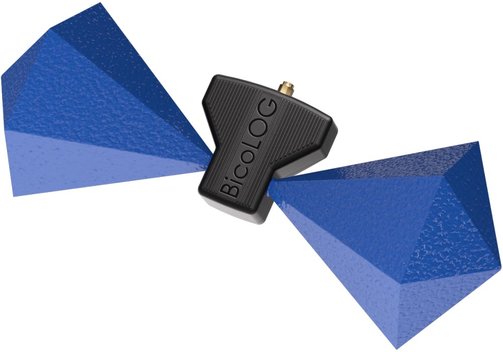

| BicoLOG-5070 | 204/001 | 350 x 160 x 140; 350 g | Biconical | -29...+1 dBi | SMA female or N with adaptor; nom. impedance 50 Ω | 50 MHz...700 MHz | 70 calibration points (5-MHz and 10-MHz steps); tripod socket 1/4"; antenna factor 20...33 dB/m; max. transmission power 5 W AM (100&nbps;MHz) |
| BicoLOG-30100 | 204/002 | 350 x 160 x 140; 350 g | Biconical | -39...+1 dBi | SMA female or N with adaptor, nom. impedance 50 Ω | 30 MHz...1 GHz | 104 calibration points (5-MHz and 10-MHz steps); tripod socket 1/4"; antenna factor 20...41 dB/m; max. transmission power 5 W AM (100&nbps;MHz) |
| BicoLOG-20100 | 204/003 | 350 x 160 x 140; 350 g | Biconical | -45...+1 dBi | SMA female or N with adaptor, nom. impedance 50 Ω | 20 MHz...1 GHz | 106 calibration points (5-MHz and 10-MHz steps); tripod socket 1/4"; antenna factor 20...42 dB/m; max. transmission power 5 W AM (100&nbps;MHz) |
| BicoLOG-20300 | 204/004 | 350 x 160 x 140; 350 g | Biconical | -45...+1 dBi | SMA female or N with adaptor, nom. impedance 50 Ω | 20 MHz...3 GHz | 296 calibration points (5-MHz and 10-MHz steps); tripod socket 1/4"; antenna factor 20...51 dB/m; max. transmission power 5 W AM (100&nbps;MHz) |

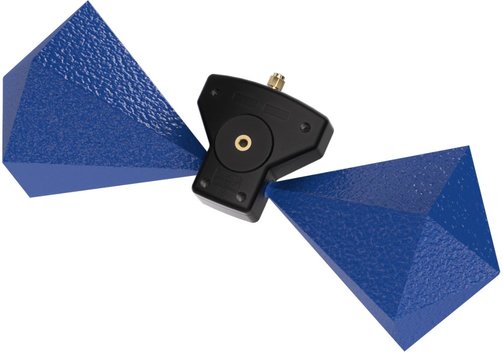

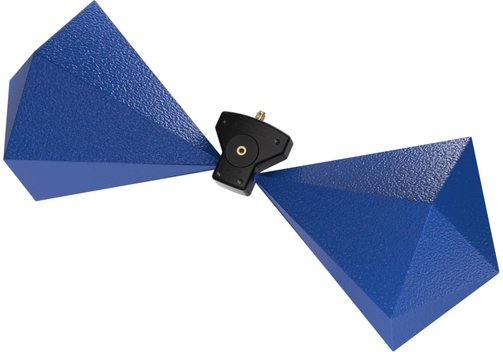

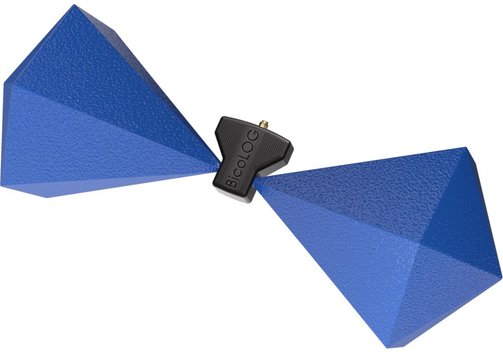

| BicoLOG-30100E | 204/005 | 540 x 225 x 225; 1150 g | Biconical | -31...+1 dBi | SMA female or N with adaptor, nom. impedance 50 Ω | 30 MHz...1 GHz | 194 calibration points (5-MHz steps); tripod socket 1/4"; antenna factor 17...31 dB/m; max. transmission power 5 W AM (100&nbps;MHz) |
| BicoLOG-20100E | 204/006 | 540 x 225 x 225; 1150 g | Biconical | -38...+1 dBi | SMA female or N with adaptor, nom. impedance 50 Ω | 20 MHz...1 GHz | 195 calibration points (5-MHz steps); tripod socket 1/4"; antenna factor 17...34 dB/m; max. transmission power 5 W AM (100 MHz) |
Information on product safety:
Manufacturer:
Aaronia AG, Kauthenbergstraße 14, 54597 Strickscheid/DEU
www.aaronia.com
