Aaronia BicoLOG-X Series Active Biconical Broadband Antennas 20MHz to 3GHz
Description
Files/Downloads
Currently not available from the manufacturer.
Benefits of the BicoLOG Transmit/Receive Active Antennas for Mobile and Stationary Use
- Active biconical broadband antennas for the frequency range up to 20 MHz...3 GHz.
- For test and EMC testing ideal in combination with spectrum analyzers.
- Lightweight and compact.

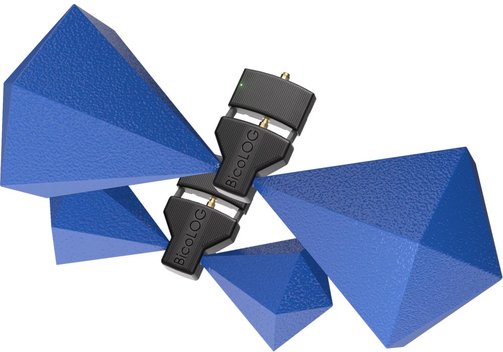

Aaronia BicoLOG-X Series Active Biconical Broadband Antennas 20 MHz to 3 GHz
The Aaronia BicoLOG-X series are excellent, cost effective, active antennas for low frequency measurements in mobile or stationary use. They offer coverage of the complete TV and radio frequencies down to 20 MHz including Tetra/BOS and ISM434 as well as excellent gain performance for EMC measurements.
Model Overview
| Model | Dimensions (mm) | Design | Gain | RF connector | Frequency range | Tech. specifications | |

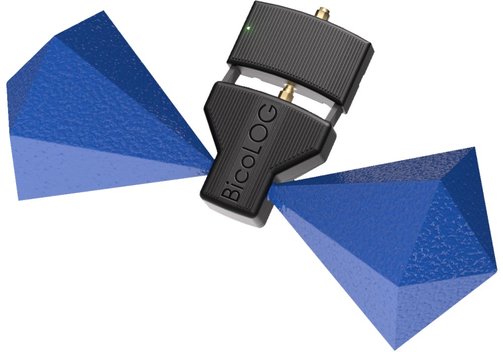

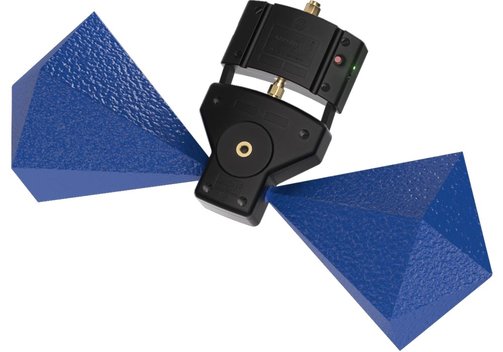

| BicoLOG-5070-X | 204/007 | 350 x 160 x 140; 500 g | Activ biconical | 11..41 dBi | SMA female or N with adaptor; nom. impedance 50 Ω | 50...700 MHz | 70 calibration points (5-MHz and 10-MHz steps); tripod socket 1/4" |
| BicoLOG-30100-X | 204/008 | 350 x 160 x 140; 500 g | Activ biconical | 1..41 dBi | SMA female or N with adaptor; nom. impedance 50 Ω | 30 MHz...1 GHz | 104 calibration points(5-MHz and 10-MHz steps); tripod socket 1/4" |
| BicoLOG-20100-X | 204/009 | 350 x 160 x 140; 500 g | Activ biconical | -5...41 dBi | SMA female or N with adaptor; nom. impedance 50 Ω | 20 MHz...1 GHz | 106 calibration points (5-MHz and 10-MHz steps); tripod socket 1/4" |
| BicoLOG-20300-X | 204/010 | 350 x 160 x 140; 500 g | Activ biconical | -5...41 dBi | SMA female or N with adaptor; nom. impedance 50 Ω | 20 MHz...3 GHz | 296 calibration points (5-MHz and 10-MHz steps); tripod socket 1/4" |

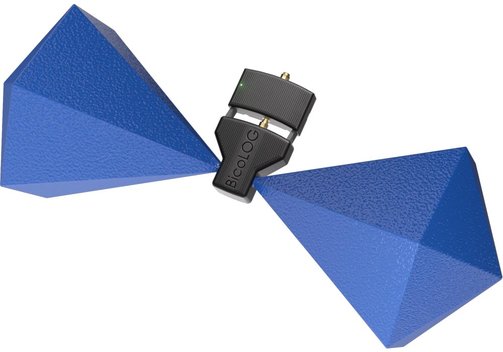

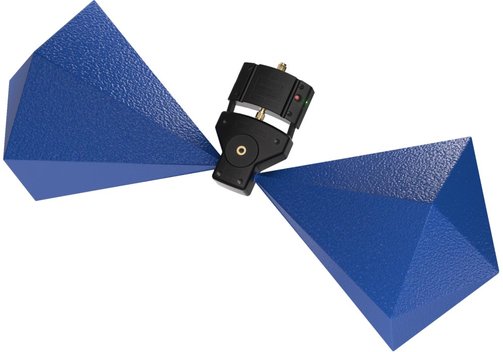

| BicoLOG-30100E-X | 204/011 | 540 x 225 x 225;1300 g | Activ biconical | 9...41 dBi | SMA female or N with adaptor; nom. impedance 50 Ω | 30 MHz...1 GHz | 194 calibration points (5-MHz steps); tripod socket 1/4" |
| BicoLOG-20100E-X | 204/012 | 540 x 225 x 225;1300 g | Activ biconical | 2...41 dBi | SMA female or N with adaptor; nom. impedance 50 Ω | 20 MHz...1 GHz | 196 calibration points (5-MHz steps); tripod socket 1/4" |
Information on product safety:
Manufacturer:
Aaronia AG, Kauthenbergstraße 14, 54597 Strickscheid/DEU
www.aaronia.com
