Aaronia GPS Logger

Aaronia GPS-Logger

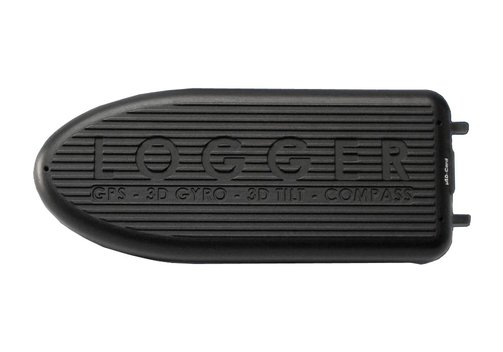

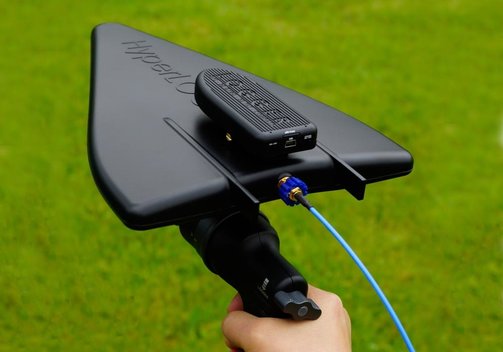

The Aaronia GPS Logger (ordering code 503/035) has a gyro, tilt, compass and acceleration sensors. The GPS Logger used to record the position and orientation of the Aaronia antennas (HyperLOG X , HyperLOG EMI, or Magnotracker series). The GPS logger allows easy recording and documentation of the measurement position incl. height information. The tilt sensor as well as the digital compass of the logger can record and evaluate the tilt and orientation of the antenna during the measurement. This special feature makes it easy to create an "RF heat map" including frequency, direction and strength of an RF source within 360 degrees.

• Highend GPS sensor incl. antenna position, speed and altitude information with a sensitivity of -165 dBm and accuracy of 1.8 m (CEP95).
• 3D compass with 1...2 degree precision.
• 3D/triaxial acceleration sensor with up to 4 mg resolution.
• 3D/triaxial gyro/tilt sensor with a sensitivity of 14 LSBs per second.
• Altimeter/pressure sensor with very high accuracy/resolution and a wide pressure range of 260...1260 mbar and a height resolution of up to 20 cm.
• Temperature range -20...45°C; rel. humidity <90%.

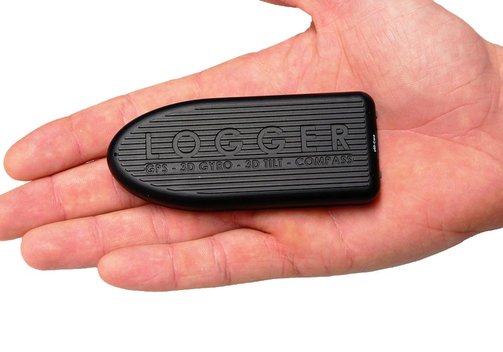

• Dimensions (mm) 106 x 45 x 22; 88 g.
