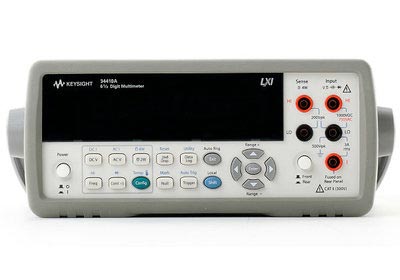

Keysight 34410A Multimeter
New replacement model: ▸Keysight 34465A
Keysight Digital Multimeter with LAN, USB and GPIB
The Keysight 34410A and 34411A are versatile multimeters for fast and precise triggering. They build on the industry-standard 34401A. The 34410A has a 6.5 digit, dual display and can measure with 10,000 reading per second at 5.5 digits. Functions include datalogging, measurement of frequency and resistance, a LAN/LXI, USB and GPIB interface. The enhanced 34411A has all the features of the 34410A plus 50,000 readings/sec, 1 M volatile memory, analog trigger leveling and programmable pre/post triggering.
- 6.5 digits resolution.
- 34410A: 10,000 readings/s at 5.5 digits to PC.
34411A: 50,000 readings/s at 4.5 digits to PC. - Non-volatile memory for 50.000 readings (both). Volatile memory for 50,000 (34410A) or 1 M readings (34411A).
- Analog level and pre/post trigger.
- LAN, USB and GPIB interface.
- Measurement of capacity and temperature.
- Datalogger function.
- LXI Class C compatible.
Model Overview
| Model | Digit | Rates, memory | Design | Interfaces |
| ▸34410A | 6.5 | 10,000 readings/s at 5.5 digits to PC. Non-volatile memory for 50,000 readings, volatile memory for 50,000 readings. | Benchtop/rack device, frontpanel operation. | GPIB, USB, ethernet/LXI |
| ▸34411A | 6.5 | 50,000 readings/s at 4.5 digits to PC. Non-volatile memory for 50,000 readings, volatile memory for 1 M readings. | Benchtop/rack device, frontpanel operation. | GPIB, USB, ethernet/LX |
Included:Digital multimeter, power cord, USB cable, test lead kit, test report, CD-ROM with user manuals (reference guide, quick start, user's guide, service guide), programming examples, IntuiLink for multimeters, LabVIEW and IVI-COM drivers, VEE driver available.
Software: Keysight I/O Library, IVI-COM, software support for VEE and LabVIEW. ▸Supported by Keysight BenchVue. Note: The recommended calibration interval for these devices is 12 months. Call or send an E-Mail for more information on calibration!
Agilent’s Electronic Measurement Group is now Keysight Technologies.
