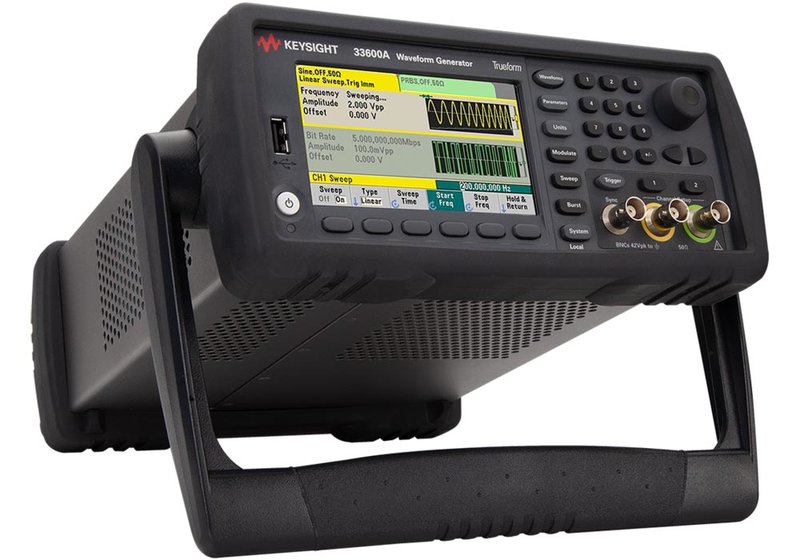

Keysight 33622A Waveform Generator, 120MHz, 2 Channels

Special Price
9.960,30
including VAT free shipping (Germany)
min Quantity
1 piece
Unit price
base price
Ready for dispatch. Delivery Time ~1-3 workdays
Ready for dispatch. Delivery Time ~1-3 workdays
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Accessories
Files/Downloads

Benefits of the Keysight 33622A 120 MHz Signal Generators

  • 2-channel waveform and arbitrary waveform generator up to 120 MHz.
  • Trueform technology for high signal integrity, low jitter, low distortion. Waveform sequencing.
  • USB and Ethernet/LXI standard.

33622A with Trueform Technology.

This new waveform generator family extends the Keysight spectrum of high precision models with Trueform technology. They generate true point-by-point arbitrary waveforms with lower jitter than the commonly used Direct Digital Synthesis (DDS) technologie. Four new upgradeable models are available at 80 MHz or 120 MHz bandwidth and with 1 or 2 channels. The waveform generators have USB, ethernet/LXI and GPIB (optional) interfaces.

  • Superior signal integrity with Trueform technology provides the lowest jitter and lowest distortion.
  • 1-channel or 2-channels models.
  • 80 MHz or 120 MHz bandwidth (sine wave. Up to 100 MHz pulse.
  • 1 GS/s sampling rate.
  • 2-channel coupling and synchronization.
  • 14 bit amplitude resolution.
  • Trueform waveforms sequencing.
  • PRBS serial patterns.
  • Up to 64 MS/channel arbitrary memory.
  • Low jitter: 1 ps; low phase noise: -125 dBc/Hz.
  • Low harmonic and spurious distortion.

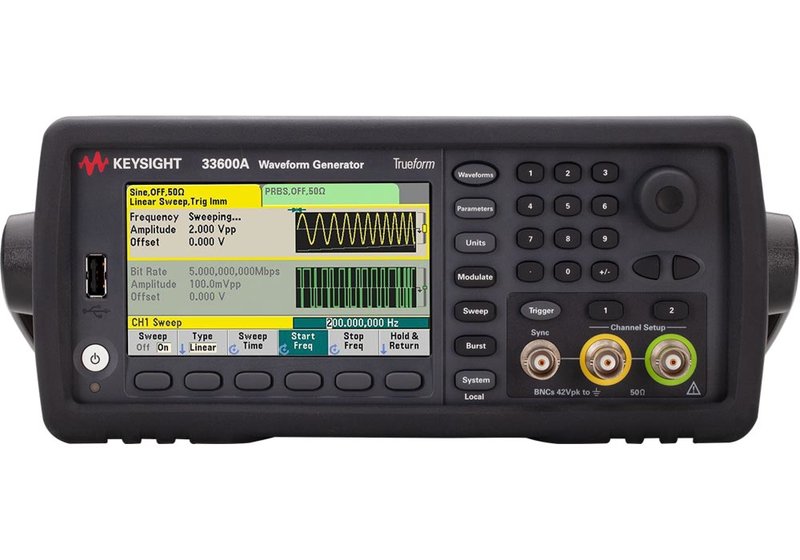

  • Intuitive front panel, complimentary software and localized online help and access to manuals from mobile devices.

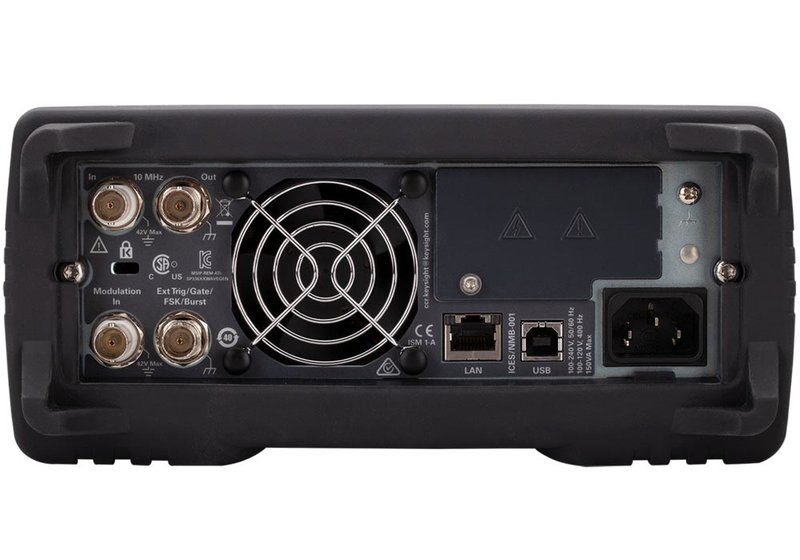

  • USB, ethernet/LXI, optional GPIB interfaces.
  • Supported by BenchVue. BenchVue makes it simple to connect, control instruments, and automate test sequences.

Model Overview

Models Channels Max. output frequency Max. sample rate Vert. resolution Max. arb. waveform lengt Interfaces
33622A 2 120 MHz 1 GS/s 14 bit Optional up to 64 MS per channel USB, Ethernet/LXI, optional GPIB

Included: Waveform generator, power cord, CD-ROM with software and user manual, quick guide, USB cable.
Software: Keysight I/O Library, IVI-COM, also supports VEE and LabVIEW. ▸Supported by Keysight BenchVue. BenchVue makes it simple to connect, control instruments, and automate test sequences.

Note: The recommended calibration interval for these devices is 12 months. Call or send an E-Mail for more information on calibration!

3Y Warranty & Keysight CARE

Agilent’s Electronic Measurement Group is now Keysight Technologies.


Information on product safety:

Manufacturer:
Keysight, 1400 Fountaingrove Parkway, Santa Rosa, CA/USA
www.keysight.com
(Keysight Technologies Deutschland GmbH)
