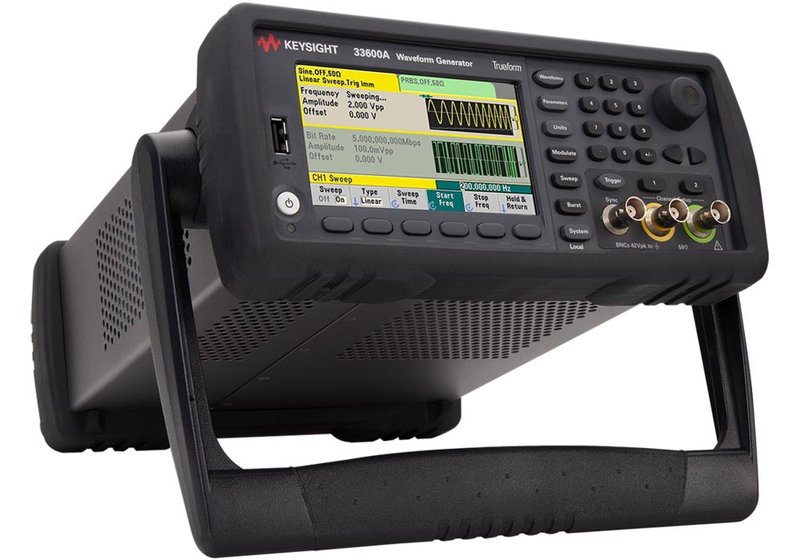

Keysight 33621A Waveform Generator, 120MHz, 1 Channel

Benefit of the Keysight 33621A 120 MHz Signal Generators

• 1-channel waveform and arbitrary waveform generator up to 120 MHz.
• Trueform technology for high signal integrity, low jitter, low distortion. Waveform sequencing.
• USB and Ethernet/LXI standard.

33621A with Trueform Technology.

This new waveform generator family extends the Keysight spectrum of high precision models with Trueform technology. They generate true point-by-point arbitrary waveforms with lower jitter than the commonly used Direct Digital Synthesis (DDS) technologie. Four new upgradeable models are available at 80 MHz or 120 MHz bandwidth and with 1 or 2 channels. The waveform generators have USB, ethernet/LXI and GPIB (optional) interfaces.

• Superior signal integrity with Trueform technology provides the lowest jitter and lowest distortion.
• 1-channel or 2-channels models.
• 80 MHz or 120 MHz bandwidth (sine wave. Up to 100 MHz pulse.
• 1 GS/s sampling rate.
• 2-channel coupling and synchronization.
• 14 bit amplitude resolution.
• Trueform waveforms sequencing.
• PRBS serial patterns.
• Up to 64 MS/channel arbitrary memory.
• Low jitter: 1 ps; low phase noise: -125 dBc/Hz.
• Low harmonic and spurious distortion.

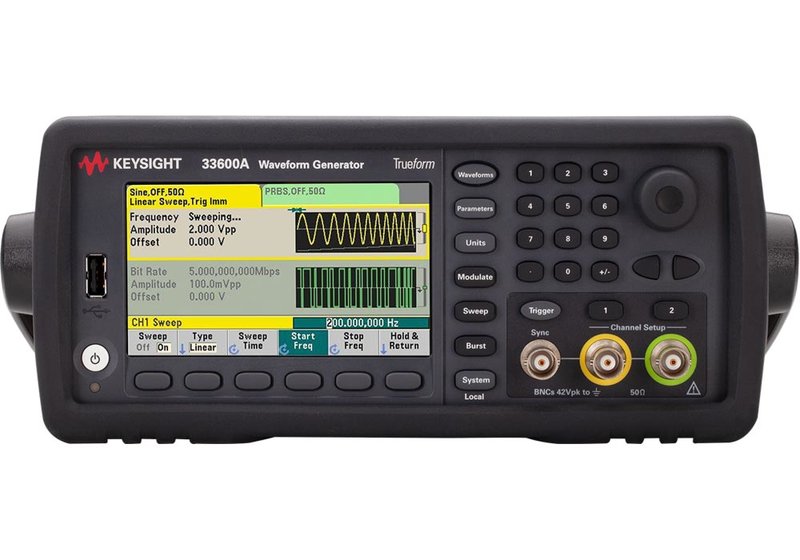

• Intuitive front panel, complimentary software and localized online help and access to manuals from mobile devices.

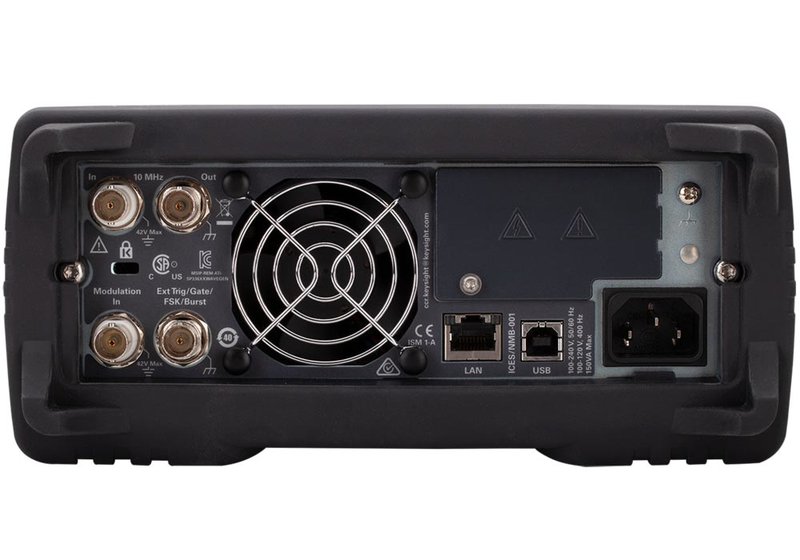

• USB, ethernet/LXI, optional GPIB interfaces.
• Supported by BenchVue. BenchVue makes it simple to connect, control instruments, and automate test sequences.

Model Overview

Agilent’s Electronic Measurement Group is now Keysight Technologies.
