MCD Elektronik DigiIO8 Module for SmartModuleS

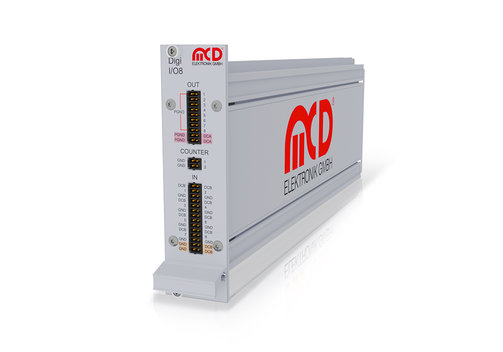

The MCD Elektronik DigiIO8 Module for SmartModuleS (163444) can be used to actuate and control pneumatically or electrically driven components and for discreet communication with a PLC or system.
- Optimized connectors for direct connection of sensors/actuators.
- 8 digital outputs (0.7 A per output) with external voltage input (max. 30 V) for actuator supply.
- 8 digital inputs (max. 24 V) also as analog input (optional, on request) with external voltage input for sensor supply.
- 2 PWM (pulsewidth modulation)/counter inputs (max. 24 V) with adjustable trigger threshold.
- Dimensions (mm, LxWxH): 325 x 36 x 129.
- Basic software (ToolMonitor) included, more features on request.
Model Overview
| Model | Description | |

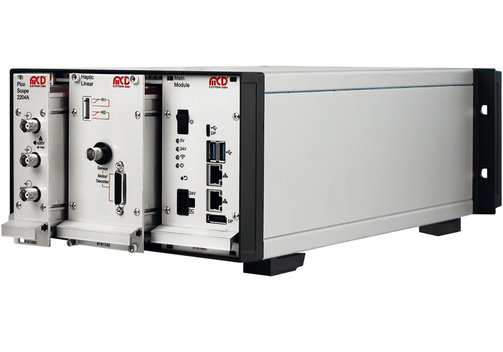

| ▸SmartModulesS Touch Display Device | 163417 | Basic device with 4 module slots (7DU) and 7"/17.8 cm touch display |
| ▸SmartModulesS Basic Device | 163418 | Basic device with 4 module slot (7DU) without display |
| ▸Pico AWG2204A Module | 163419 | Oscilloscope module based on the 2-channel USB PC oscilloscope technology of the ▸PicoScope 2204A |
| ▸USB Hub Module | 163421 | Module with switchable USB-Hub |
| ▸AudioAnalyzer Module | 163422 | Audio analyzer to test and calibrate analog and digital sound systems |
| ▸DigiIO8 Module | 163444 | Actuate and control pneumatically or electrically driven components, communication with a PLC or system |
Information on product safety:
Manufacturer:
MCD Elektronik GmbH, Hoheneichstr. 52, IKG Dammfeld, 75217 Birkenfeld/DEU
www.mcd-elektronik.de
