Gossen Metrawatt Temperatur Probes and Sensors
Model Overview
| Model | Article no. | Description | |
| Z3431-8 | GTZ3431008R0001 | Flexible, plug-on insulation probe, thermocouple type K to +250°C | |

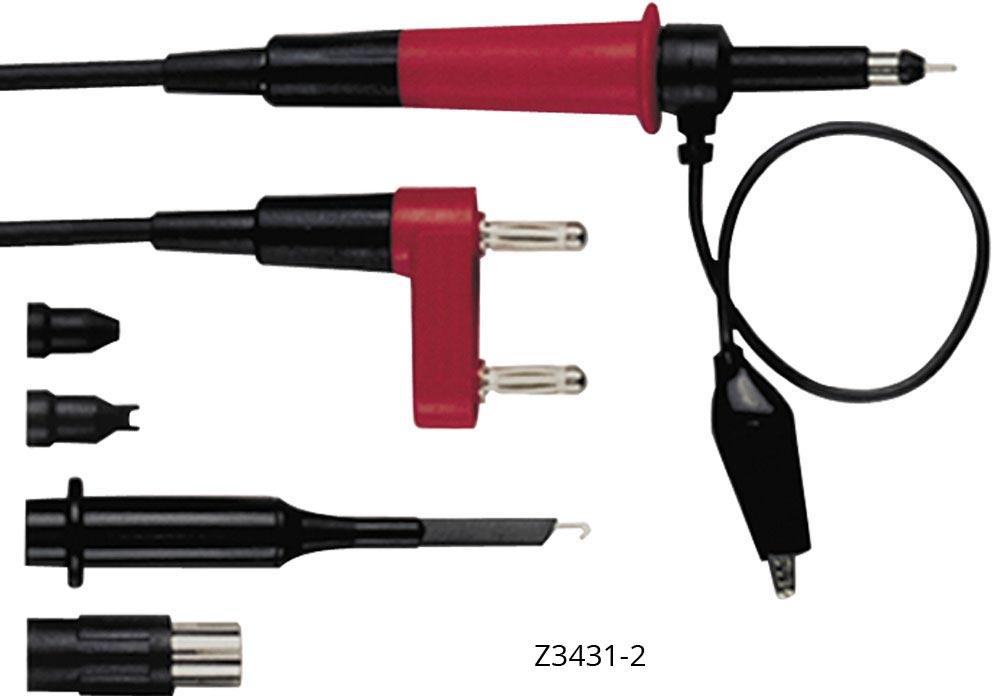

| Z3431-2 | GTZ3431002R0001 - EOL, obsolete - |
High frequency probe, 100 kHz...750 MHz, 0.25...50V AC | Alternating currents with amplitudes ranging from 0.25 V...50 V within a frequency range of 100 kHz...750 MHz can be measured with the Z3431-2 high frequency probe. Alternating voltages are rectified at a ratio of 1:1. An input resistance of 10 MΩ is required at the measuring instrument. |

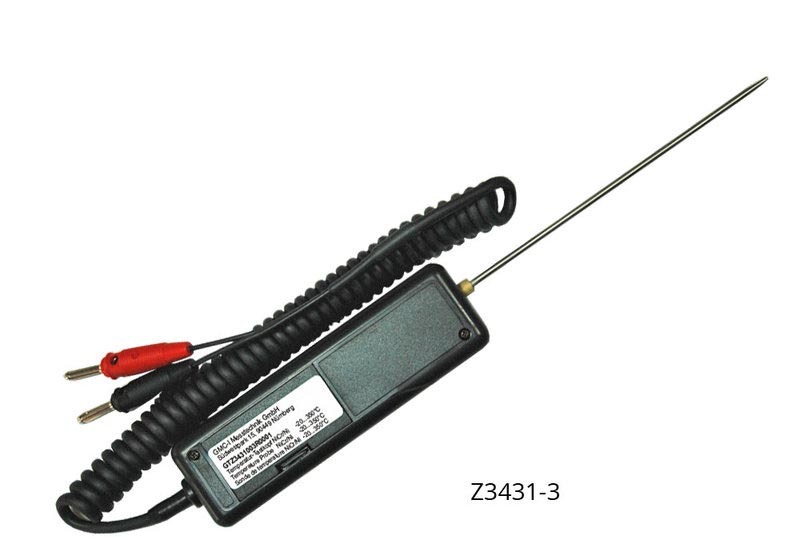

| Z3431-3 | GTZ3431003R0001 - EOL, obsolete - |
Temperature probe with permanently mounted immersion sensor, NiCr-Ni, -20...+350°C | Sensor type: NiCr-NiAl, type K thermocouple. Measuring range: -20...+350°C. Accuracy: ±(0,5% rdg.+ 0,5°C). Required multimeter input impedance: >10 kΩ. Output voltager: 1 mV/°C. Connect output with mV/V input of the multimeter. Operating temperature: 5...45°C. Dimensions: 118 x 37 x 211 (mm, without sensor). Weight: 140 g (without sensor). Power supply: 1,5 V baby cell, 250 h service life |

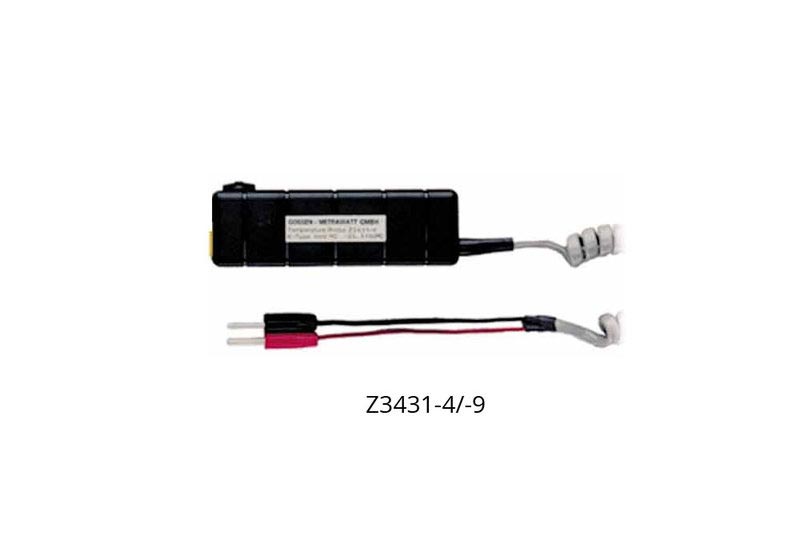

| Z3431-4 | GTZ3431004R0001 - EOL, obsolete - |
Temperature probe without sensor, NiCr-Ni, -25...+1150°C | Sensor type: NiCr-NiAl, type K thermocouple. Measuring range: -25...+1150°C. Accuracy: ±(1% rdg. + 1°C). Required multimeter input impedance: >10 kΩ. Output voltager: 1 mV/°C. Connect output with mV/V input of the multimeter. Operating temperature: 5...45°C. Dimensions: 118 x 37 x 211 (mm, wihtout sensor). Weight: 110 g (wihtout sensor). Power supply: 1,5 V baby cell, 250 h service life. For sensors Z3431-5, -6, -7, -8 |
| Z3431-9 | GTZ3431009R0001 - EOL, obsolete - |
Temperature probe without sensor, NiCr-Ni, -20...+350°C | Sensor type: NiCr-NiAl, type K thermocouple. Measuring range: -20...+350°C. Accuracy: ±(0,5% rdg. + 0,5°C). Required multimeter input impedance: >10 kΩ. Output voltager: 1 mV/° C. Connect output with mV/V input of the multimeter. Operating temperature: 5...45°C. Dimensions: 118 x 37 x 211 (mm, without sensor) Weight: 110 g (without sensor) Power supply: 1,5 V baby cell, 250 h service life. For sensors Z3431-5, -6, -7, -8 |

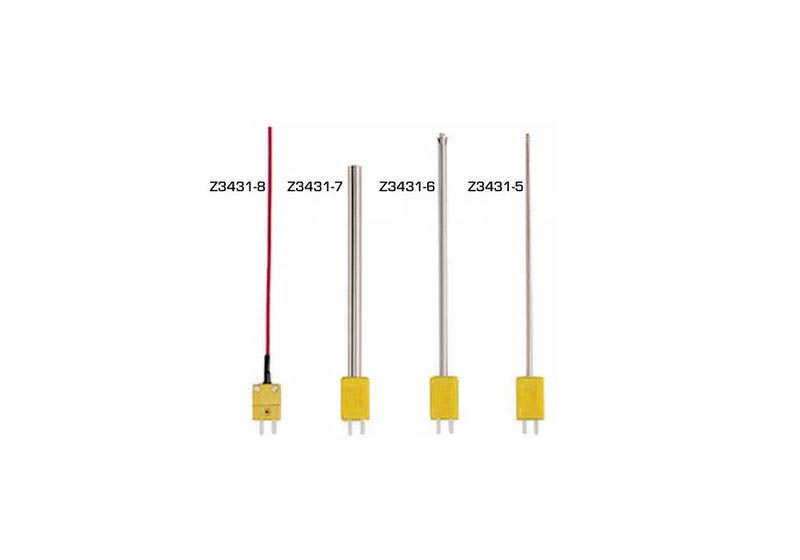

| Z3431-5 | GTZ3431005R0001 - EOL, obsolete - |
Standard plug-on immersion probe, to +1100°C | |

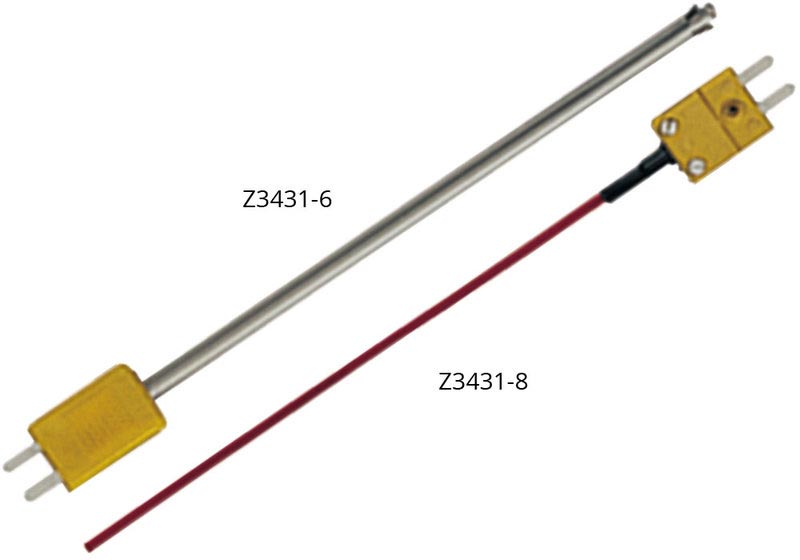

| Z3431-6 | GTZ3431006R0001 - EOL, obsolete - |
Plug-on surface probe, to +850°C | |
| Z3431-7 | GTZ3431007R0001 - EOL, obsolete - |
Plug-on ribbon probe, to +450°C | |
