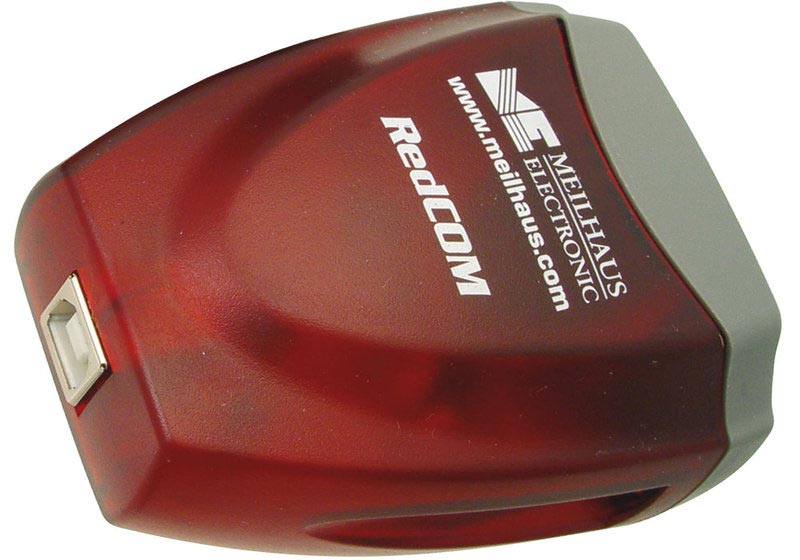

RedCOM USB-COMi Interface Converter USB to RS422/RS485

Scaled Prices

taking 1 pc.

€ 82,11

taking 10 pc.

€ 73,78

taking 50 pc.

€ 69,02

taking 100 pc.

€ 65,45

taking 250 pc.

€ 58,31

€ 82,11

including VAT plus shipping

min Quantity

1 piece

Unit price

base price

Ready for dispatch. Delivery Time ~1-3 workdays

technical Question?

Please fill in all fields.

Question Type

Your E-mail Adress

My Question:

Please validate that you are not a robot.

I accept the Privacy Policy

Description

Files/Downloads

Benefits of the RedCOM USB-COMi Converter from USB 1.1 to 1 Port RS422/485

Compact converters from USB to 1x serial RS422/485.
ESD protection for all signals.
USB-powered - no power adaptor required.

RedCOM USB-COMi Interface Converter USB to RS422/RS485

You have to control RS422 and/or RS485 devices with a PC or laptop that only has USB? No problem with the RedCOM series USB-to-serial converters. They have compact, economic plastic housings and can be used for mobile applications or in the lab. They are USB-powered, no additional power adaport is required.

Converter USB to 1x RS422 or RS485.
Rates up to 921.6 kbps.
Send and transmit FIFO.
USB 1.1 FullSpeed (USB 2.0/3.0 compatible).
10 kV ESD protection for all signals.
USB-powered - no additional power supply adaptor required.

Model Overview

		USB-COMi	▸USB-COMi-SI
USB	Compliance	USB 1.0/1.1 compliant, USB 2.0 and 3.0 compatible	USB 1.0/1.1 compliant, USB 2.0 and 3.0 compatible
	Speed	12 Mbps, FullSpeed	12 Mbps, FullSpeed
	FIFO	128 byte transmit/384 byte receive	128 byte transmit/384 byte receive

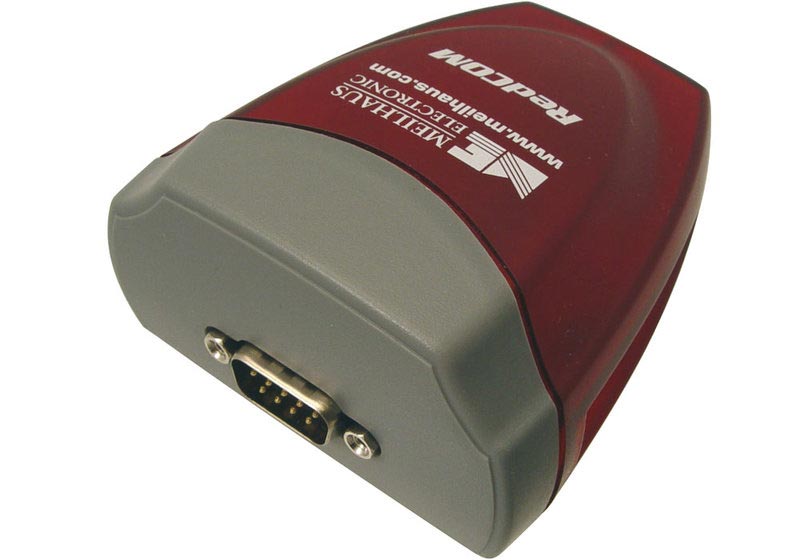

Serial interface	Number/type	1x RS422/RS485; 9-pin D-sub male	1x RS422/485; 9-pin D-sub male
	Speed	921.6 kbps for transmit and receive	921.6 kbps for transmit and receive
	Signals	RS422: TxD-, TxD+, RxD+, RxD-, GND, RTS-, RTS+, CTS-, CTS+ RS485: 2-wire Data+, Data-, GND	RS422: TxD-, TxD+, RxD+, RxD-, GND, RTS-, RTS+, CTS-, CTS+ RS485: 2-wire Data+, Data-, GND
	Protection	10 kV ESD protection for all signals	25 kV ESD protection for all signals, 2000 VDC optical isolation for all signals
	Serial com parameters	Data bits: 7, 8; parity: None, odd, even, mark, space; stop bit: 1, 1.5, 2; flow control: Hardware (RTS, CTS), XON/XOFF	Data bits: 7, 8; parity: None, odd, even, mark, space; stop bit: 1, 1.5, 2; flow control: Hardware (RTS, CTS), XON/XOFF
General	Power	USB bus-powered	USB bus-powered
	Casing	Plastic, ABS	Plastic, ABS
	Environmental	Operating temperature 0...55°C; 5...95% rel. humidity (operating); storage temperature -20...+75°C	Operating temperature 0...55°C; 5...95% rel. humidity (operating); storage temperature -20...+75°C
	Safety approvals	CE, FCC	CE, FCC

Included: RedCOM converter USB to 1x RS422/485, USB cable.
Via download: Unser manual, driver software for Windows XP to 10, Server 2000 to Server 2016 (WHQL-certified), Linux Kernel 2.4 and above.

Datasheet_Titan_RedCOMi_en.pdf

Driver for RedCOM series

Manual_RedCOM-USB-COMi_en.pdf
